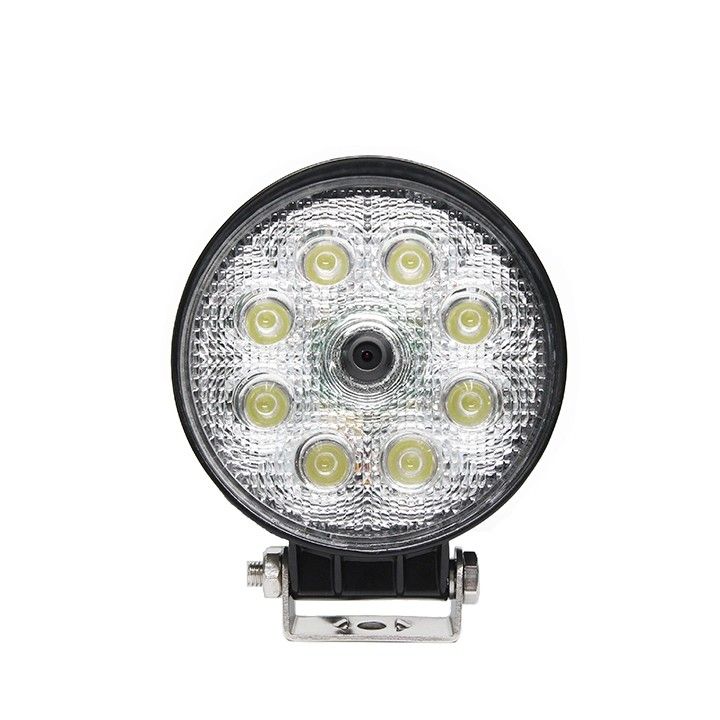

RVS Systems RVS-FLC03-05 Vehicle Flood Light with Backup Camera (Circle), 33' Cable, RCA Adapter
SKU
RVS-FLC03-05
Model No
RVS-FLC03-05
$165.35
Product Highlights
- Dual-Purpose (Flood Light & Backup Camera)
- 140° Diagonal Viewing Angle
- 98 - 164 ft. Range Visibility
- IP68 Waterproof Rating
Speak to an expert

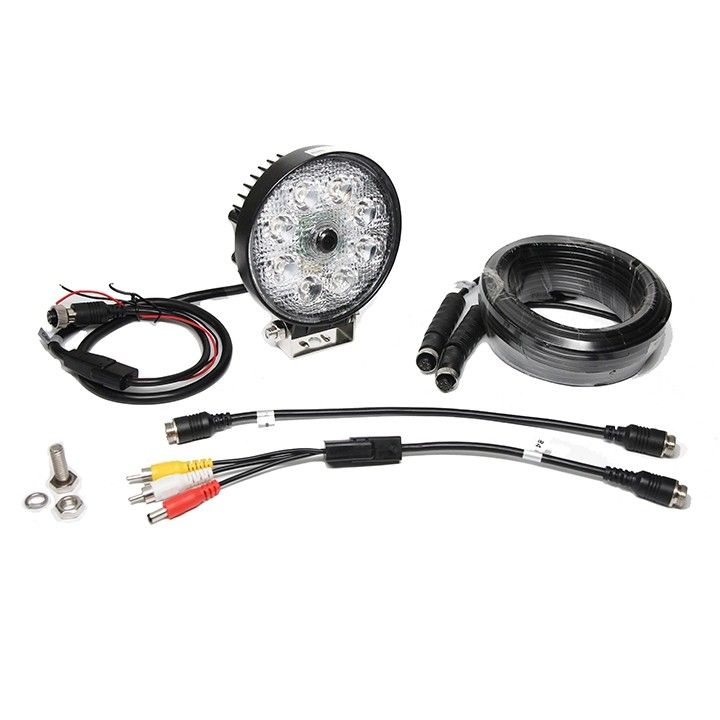

The RVS-FLC03-05 from RVS Systems is the best of both worlds. One-half Backup Camera and one-half Flood Light, this is the best dual-purpose backup camera for driving in darkness or night hours. The 976 x 592 pixel rear view camera gives users unmatched vision. Easily mount flood light cameras to the front or rear of your vehicle to "boost" night driving visibility! For even better performance, mount two on the front and back and add at least 98 feet of vision in the darkest driving environments. Comes with 33' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power, Cable to connect power to RCA adapters.
RVS Systems RVS-FLC03-05 Camera Features
- Dual-Purpose: Combines a flood light and backup camera for enhanced visibility during night driving.
- 140° Diagonal Viewing Angle: Provides a wide field of view, helping to eliminate blind spots.
- 98 - 164 ft. Range Visibility: Ensures clear sight in low-light conditions, increasing safety.
- IP68 Waterproof Rating: Designed to withstand harsh weather conditions, making it durable and reliable.
RVS Systems RVS-FLC03-05 Detailed Specifications
| Camera Resolution | 976 x 592 pixels |
| Cable Length | 33 feet |
| Mounting Options | Front or rear of the vehicle |
| Power Connection | Double-sided Female Air-Craft Grade Connection with Male RCA |
| Visibility | 98 - 164 ft. range |
| Waterproof Rating | IP68 |
SKU  | RVS-FLC03-05 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Electronic Shutter | Auto |
| Image Device | 1/3 CMOS 1058 |
| IR Distance | 29.87m/98ft - 49.98m/164ft |
| Minimum Scene Illumination | 0 Lux (LED ON) |
| Operating Temperature | -20℃~+70℃ |
| Dimensions (W x H) | Flood Light (with bracket): 5" (H) x 4.25" (L) x 2" (D), Flood Light (w/o bracket): 4.5" (H) x 4.25" (L) x 2" (D) |
| Power Consumption | Daylight (60 mA)，Darkness (2400 mA) |
| S/N Ratio | 48db or better |
| Signal System | PAL / NTSC |
| Video Output | 1.0 Vpp 75 ohm |
| Weatherproof | IP68 |
| Angle of View | Diagonal Angle 140°, Horizontal Angle 107°, Vertical Angle 84° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 8 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
