RVS Systems RVS-FLC03-03 Vehicle Flood Light with Backup Camera (Circle), 16' Cable
SKU
RVS-FLC03-03
Model No
RVS-FLC03-03
$165.35
Product Highlights
- Dual-Purpose (Flood Light & Backup Camera)
- 140° Diagonal Viewing Angle
- 98 - 164 ft. Range Visibility
- IP68 Waterproof Rating
Speak to an expert

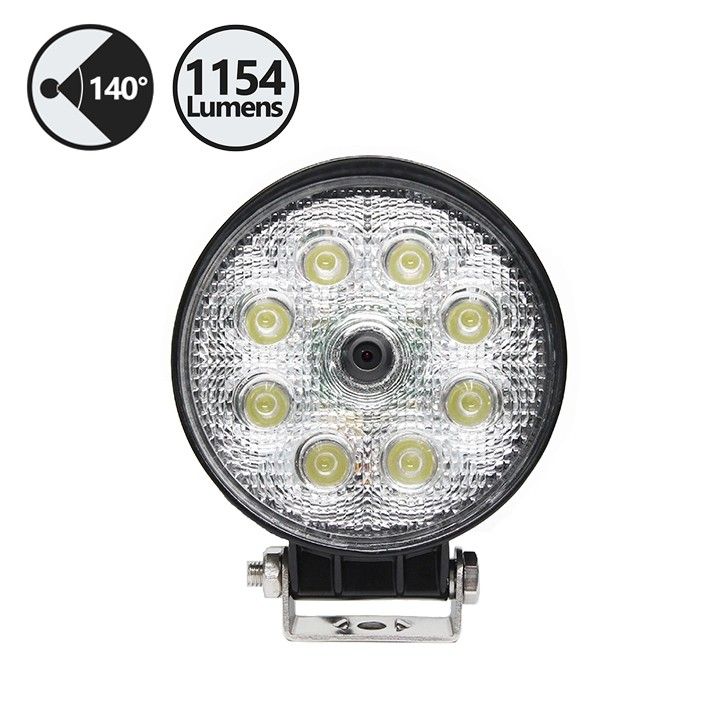

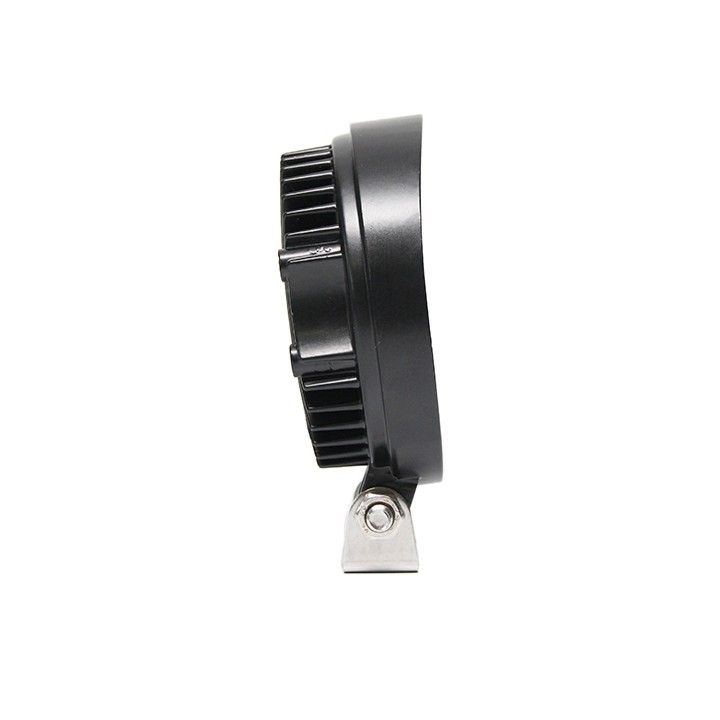

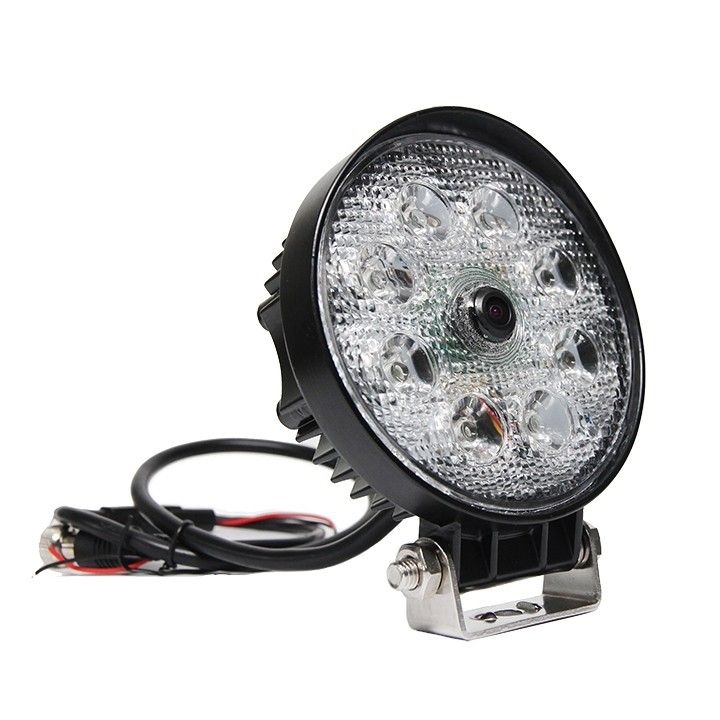

RVS Systems RVS-FLC03-03 Vehicle Flood Light with Backup Camera

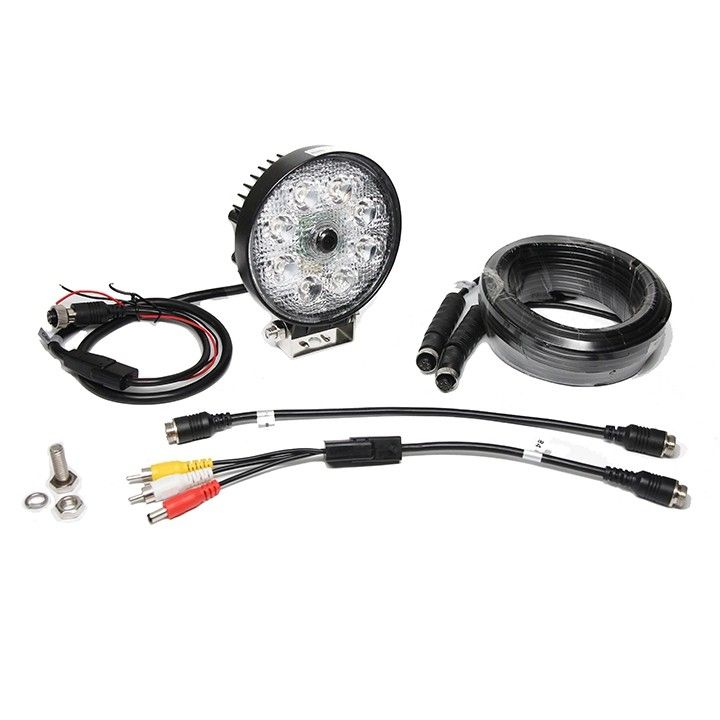

The RVS-FLC03-03 from RVS Systems is the best of both worlds. One-half Backup Camera and one-half Flood Light, this is the best dual-purpose backup camera for driving in darkness or night hours. The 976 x 592 pixel rear view camera gives users unmatched vision. Easily mount flood light cameras to the front or rear of your vehicle to "boost" night driving visibility! For even better performance, mount two on the front and back and add at least 98 feet of vision in the darkest driving environments. Comes with 16' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- Dual-Purpose: Combines the functionality of a flood light and backup camera for enhanced visibility and safety.
- 140° Diagonal Viewing Angle: Provides a wide field of view to eliminate blind spots while reversing.
- 98 - 164 ft. Range Visibility: Ensures excellent illumination and visibility in dark conditions, ideal for night driving.
- IP68 Waterproof Rating: Offers superior protection against water and dust, ensuring durability in various weather conditions.
Detailed Specifications for RVS Systems RVS-FLC03-03
| Camera Resolution | 976 x 592 pixels |
| Cable Length | 16 feet |
| Viewing Angle | 140 degrees diagonal |
| Visibility Range | 98 - 164 feet |
| Waterproof Rating | IP68 |
| Mounting Options | Front or rear of the vehicle |
| Connection Type | Female Air-Craft Grade Double-sided |
SKU  | RVS-FLC03-03 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Electronic Shutter | Auto |
| Image Device | 1/3 CMOS 1058 |
| IR Distance | 29.87m/98ft - 49.98m/164ft |
| Minimum Scene Illumination | 0 Lux (LED ON) |
| Operating Temperature | -20℃~+70℃ |
| Dimensions (W x H) | Flood Light (with bracket): 5" (H) x 4.25" (L) x 2" (D), Flood Light (w/o bracket): 4.5" (H) x 4.25" (L) x 2" (D) |
| Power Consumption | Daylight (60 mA)，Darkness (2400 mA) |
| S/N Ratio | 48db or better |
| Signal System | PAL / NTSC |
| Video Output | 1.0 Vpp 75 ohm |
| Weatherproof | IP68 |
| Angle of View | Diagonal Angle 140°, Horizontal Angle 107°, Vertical Angle 84° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 8 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
