RVS Systems RVS-FLC03-01 Vehicle Flood Light with Backup Camera (Circle), 66' Cable
SKU
RVS-FLC03-01
Model No
RVS-FLC03-01
$165.35
Product Highlights
- Dual-Purpose (Flood Light & Backup Camera)
- 140° Diagonal Viewing Angle
- 98 - 164 ft. Range Visibility
- IP68 Waterproof Rating
Speak to an expert
RVS Systems RVS-FLC03-01 Vehicle Flood Light with Backup Camera Features

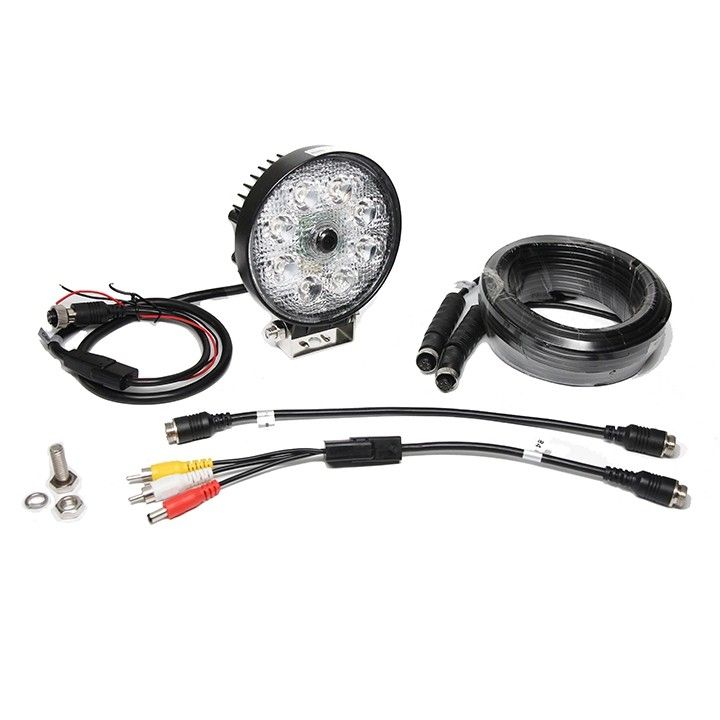

The RVS-FLC03-01 from RVS Systems is the best of both worlds. One-half Backup Camera and one-half Flood Light, this is the best dual-purpose backup camera for driving in darkness or night hours. The 976 x 592 pixel rear view camera gives users unmatched vision. Easily mount flood light cameras to the front or rear of your vehicle to "boost" night driving visibility! For even better performance, mount two on the front and back and add at least 98 feet of vision in the darkest driving environments. Comes with 66' Camera Cable with a double-sided Female Air-Craft Grade Connection.
Features
- Dual-Purpose: Flood Light & Backup Camera for enhanced visibility day and night.
- 140° Diagonal Viewing Angle: Offers a wider field of view, ensuring better awareness of surroundings.
- 98 - 164 ft. Range Visibility: Ideal for safe navigation in low-light conditions, providing more confidence while reversing.
- IP68 Waterproof Rating: Ensures durability and performance even in harsh weather conditions, making it suitable for all environments.
RVS Systems RVS-FLC03-01 Detailed Specifications
| Camera Resolution | 976 x 592 pixels |
| Cable Length | 66 feet |
| Viewing Angle | 140° Diagonal |
| Visibility Range | 98 - 164 ft. |
| Waterproof Rating | IP68 |
SKU  | RVS-FLC03-01 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Lens Size | 1.7mm |
| Infrared Distance | 101 Feet + |
| Durability | Weather Resistant |
| Electronic Shutter | Auto |
| Image Device | 1/3 CMOS 1058 |
| IR Distance | 29.87m/98ft - 49.98m/164ft |
| Minimum Scene Illumination | 0 Lux (LED ON) |
| Operating Temperature | -20℃~+70℃ |
| Dimensions (W x H) | Flood Light (with bracket): 5" (H) x 4.25" (L) x 2" (D), Flood Light (w/o bracket): 4.5" (H) x 4.25" (L) x 2" (D) |
| Power Consumption | Daylight (60 mA)，Darkness (2400 mA) |
| S/N Ratio | 48db or better |
| Signal System | PAL / NTSC |
| Video Output | 1.0 Vpp 75 ohm |
| Weatherproof | IP68 |
| Angle of View | Diagonal Angle 140°, Horizontal Angle 107°, Vertical Angle 84° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | 8 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
