RVS Systems RVS-Dodge 420 TVL Analog Outdoor Dodge Ram Tailgate Handle Backup Camera

Name: RVS Systems RVS-Dodge 420 TVL Analog Outdoor Dodge Ram Tailgate Handle Backup Camera
Brand: RVS Systems
SKU: RVS-Dodge
Price: 227.05 USD
Availability: InStock

SKU

RVS-Dodge

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RVS Systems RVS-Dodge 420 TVL Analog Outdoor Dodge Ram Tailgate Handle Backup Camera RVS-Dodge by RVS Systems

Model No

RVS-SC709

$227.05

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Replaces Dodge tailgate handle
OEM design - factory like install
170° all-encompassing viewing angle with adjustable lens
Excellent night vision
IP67 rating - completely protected against all weather elements

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

RVS Systems RVS-Dodge Backup Camera Features

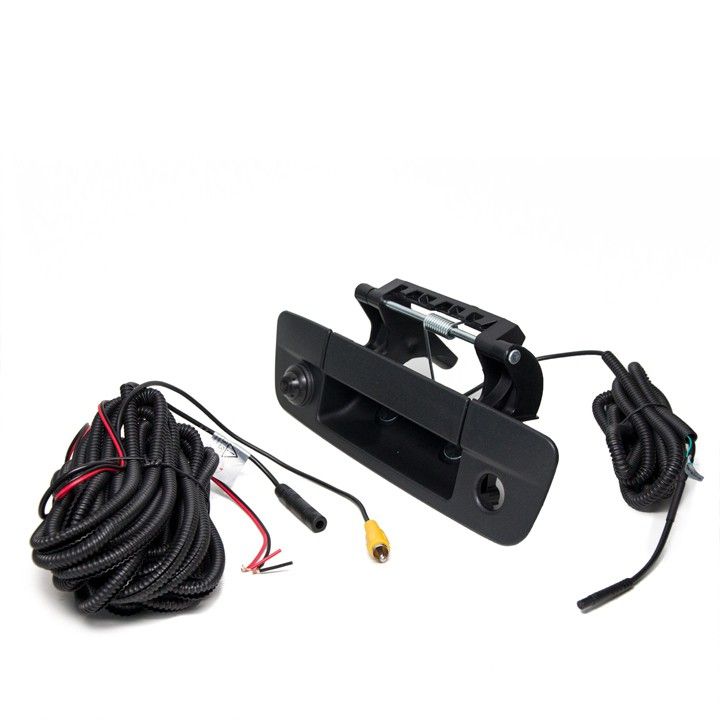

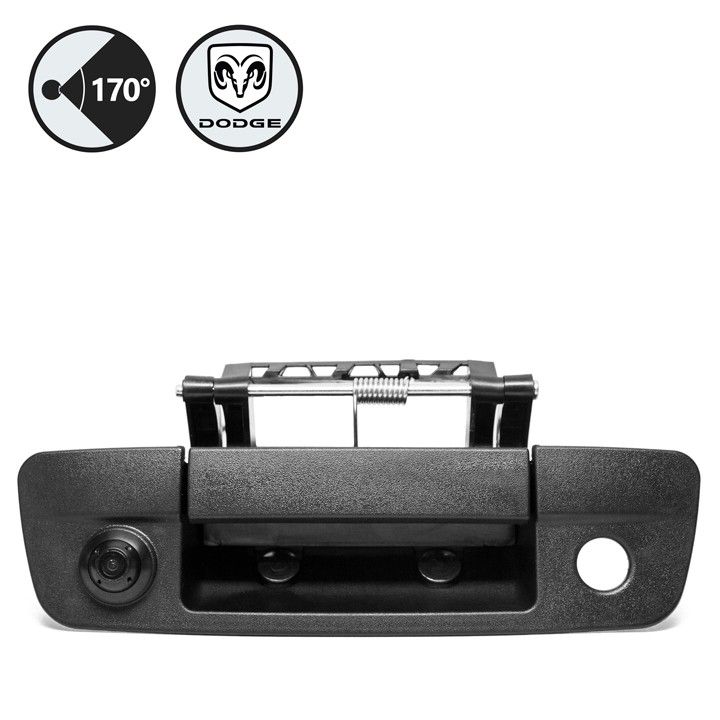

This Dodge Ram backup camera replaces the existing tailgate handle for a sleek OEM look. The Dodge Ram back up camera boasts a 170 Degree CCD sensor which displays rich color picture day and night. The camera has excellent night vision which works great in low light settings. Model # RVS-Dodge.

Features

Replaces: Dodge tailgate handle for seamless integration with your vehicle.
OEM Design: Factory-like installation ensures a perfect fit and finish.
Viewing Angle: 170° all-encompassing viewing angle with adjustable lens allows for maximum visibility and coverage.
Night Vision: Excellent night vision technology provides clear images in low light environments.
IP67 Rating: Completely protected against all weather elements, ensuring reliable performance in any condition.

Detailed Specifications for RVS Systems RVS-Dodge

Model Number	RVS-Dodge
Sensor Type	CCD
Viewing Angle	170 Degrees
Night Vision	Yes
Weather Resistance	IP67 Rated
Installation Type	Replaces tailgate handle

Specifications

SKU	RVS-Dodge
Features	Auto Gain Control, Day/Night, Weather Resistant
Manufacturer	RVS Systems
Camera Signal	Analog
Resolution	420 TVL
Sensor Option	1/4" CCD
Infrared Distance	Non Infrared
Durability	Weather Resistant
Image Device	CDM-III, 1/4”
Image Pixels-Effective	648*488
Minimum Scene Illumination	0.5 Lux
Operating Temperature	-30°C ~ +70°C
Dimensions (W x H)	2.75" (H) x 9.15" (L) x 2.95" (D)
Power Consumption	MAX:150mA
Signal System	NTSC
Video Output	Full Color Video Out:1.0Vp-p 17 (Ω) Load
Weatherproof	IP67, IP68
Angle of View	170°
Day/Night	Yes
Auto Gain Control	Yes
