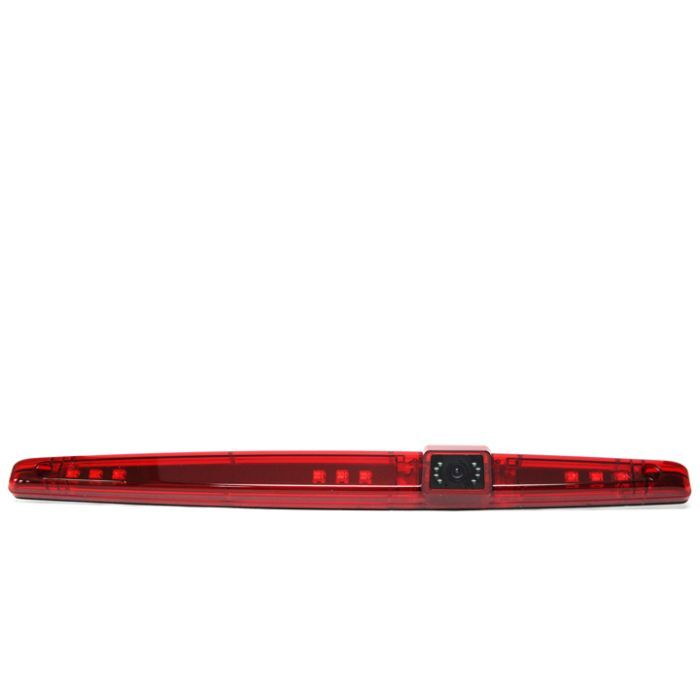

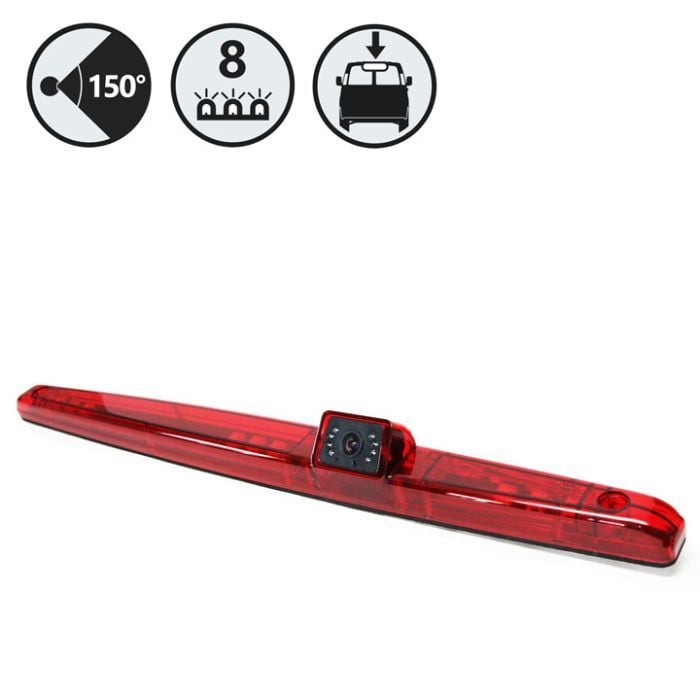

RVS Systems RVS-CL Clearance Light Backup Camera
SKU
RVS-CL
Model No
RVS-CL
$288.22
Product Highlights
- Mounts as the clearance light on vehicle
- DOT approved (SAE J2042 + SAE J592)
- 8 infra-red lights - excellent night vision
- 150° ultra-wide viewing angle
- Completely waterproof camera - IP68
Speak to an expert
RVS Systems RVS-CL Clearance Light Backup Camera Features
Ideal for RV's, the camera mounts in the center of the vehicle towards the top and provides a 150° viewing angle of the road and hitch. The backup camera is SAE J2042 (FEB 2014) and SAE J592 (MAR 2009) approved, completely waterproof with an IP68 rating and provides excellent night vision with 8 infra-red lights. Camera comes with cable (select length from dropdown) and the option for a 5 Pin connection (to connect to our systems) or an RCA adapter (to connect to an external display).
Features
- Mounts as the clearance light on vehicle: Seamlessly integrates into the vehicle's design, preserving aesthetics while enhancing functionality.
- DOT approved (SAE J2042 + SAE J592): Ensures compliance with safety standards, providing peace of mind for users.
- 8 infra-red lights - excellent night vision: Allows for clear visibility in low-light conditions, improving safety during night driving.
- 150° ultra-wide viewing angle: Eliminates blind spots, providing a comprehensive view of the surroundings while reversing.
- Completely waterproof camera - IP68: Guarantees durability and performance in various weather conditions, enhancing the camera's lifespan.
RVS Systems RVS-CL Clearance Light Backup Camera Specifications
| Viewing Angle | 150° |
| Night Vision | 8 infra-red lights |
| Waterproof Rating | IP68 |
| Approval Standards | SAE J2042 (FEB 2014), SAE J592 (MAR 2009) |
| Connection Options | 5 Pin or RCA adapter |
SKU  | RVS-CL |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 620 TVL |
| Lens Type | Fixed |
| Lens Size | 2.21mm |
| Minimum Scene Illumination | 0.01 Lux |
| Operating Temperature | –40°C ~ +70°C |
| Dimensions (W x H) | 3.39" (H) x 17.91" (L) x 1.40 "(D) |
| S/N Ratio | More than 48 dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 150° |
| Auto Gain Control | Auto |
| IR LEDs | Eight (8) |
| Auto Gain Control | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
RVS-CL-Specsheet RVS-CL-Installation-Instruction
