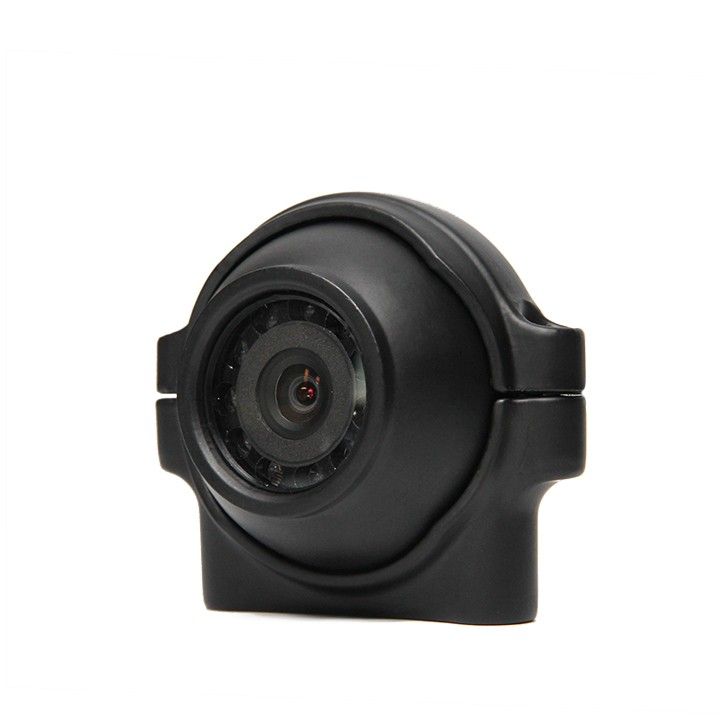

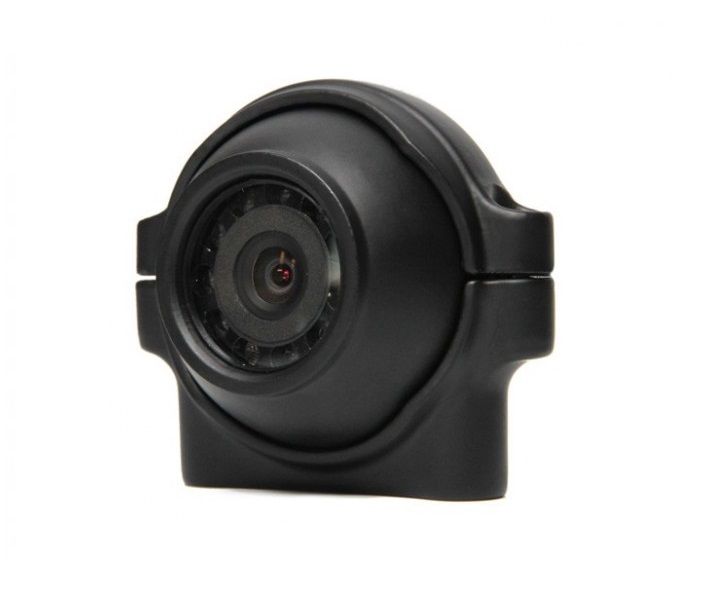

RVS Systems RVS-C01-04 150° 700 TVL Forward Facing Camera, 33ft Cable
SKU
RVS-C01-04
Model No
RVS-C01-04
$152.63
Product Highlights
- 150° Ultra Wide Viewing Angle
- 10 Infra-Red Lights - Ultimate Night Vision
- Infra-reds Automatically Adjust Based On Environment
- IP69 Rating - Completely Waterproof
- Sleek, Compact Design
Speak to an expert
The RVS-C01-04 from RVS Systems is a high-quality image and an IP69K waterproof encasing, this backup camera will be fit for all your commercial and construction needs. It's viewing angle can be easily adjusted allowing this camera to mount in a variety of different ways. Ten infra-red illuminators provide perfect vision even on the darkest night, and its auto iris sensor will automatically adjust the strength of the infra-red. Comes with 33' Camera Cable with a double-sided Female Air-Craft Grade Connection.
RVS Systems RVS-C01-04 Camera Features
- 150° Ultra Wide Viewing Angle: Provides extensive visibility to eliminate blind spots while driving or reversing.
- 10 Infra-Red Lights: Ensures ultimate night vision, allowing safe navigation in low-light conditions.
- Infra-reds Automatically Adjust Based On Environment: Enhances image quality by adapting to surrounding light conditions.
- IP69 Rating: Guarantees complete waterproof protection, making it ideal for all weather conditions.
- Sleek, Compact Design: Designed for easy installation and minimal obstruction, blending seamlessly with your vehicle.
RVS Systems RVS-C01-04 Detailed Specifications
| Model | RVS-C01-04 |
| Viewing Angle | 150° |
| Resolution | 700 TVL |
| Infra-Red Lights | 10 |
| Waterproof Rating | IP69K |
| Cable Length | 33ft |
| Connection Type | Double-sided Female Air-Craft Grade |
SKU  | RVS-C01-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.9mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Electronic Shutter | 1/60 (NTSC) 1/50 (PAL) 1/10,000 Second |
| Image Device | 1/3" Sony® Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -20°C ~ +60°C / RH 95% Max |

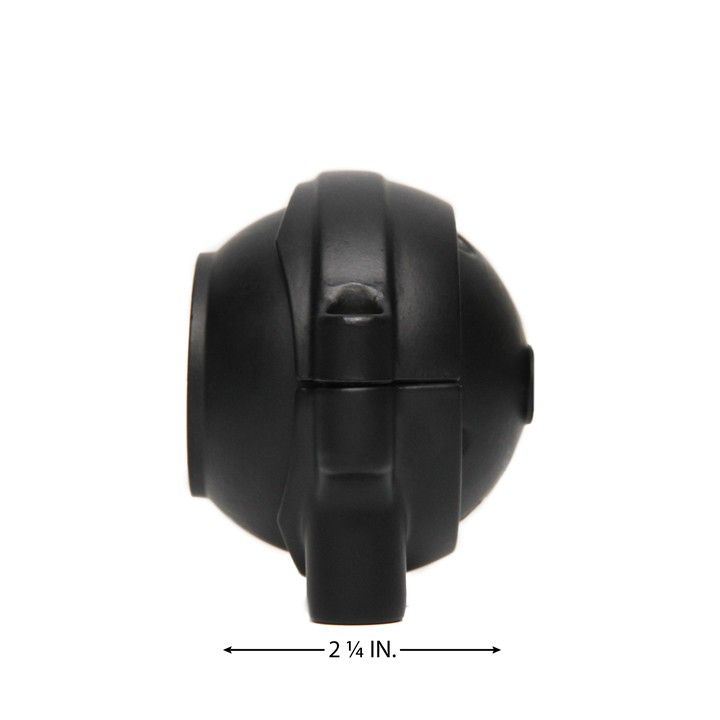

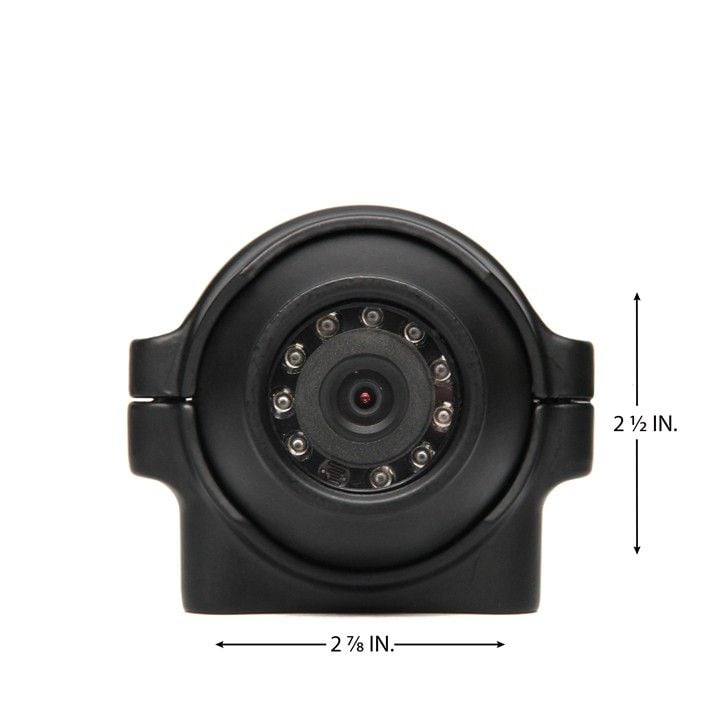

| Dimensions (W x H) | 2.50" (H) x 2.75" (L) x 1" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP69 |
| Synchronization | Internal Synchronization |
| Angle of View | 150° |
| IR LEDs | 10 |
| Auto Gain Control | Yes |
