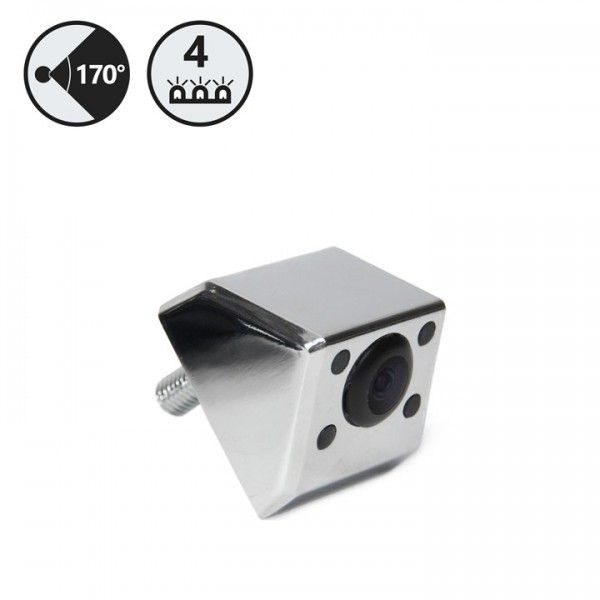

RVS Systems RVS-BV-812-01 420TVL Chrome Backup Camera with IR (Screw), 66' Cable
SKU
RVS-BV-812-01
Model No
RVS-BV-812-01
$127.19
Product Highlights
- 420 TV lines - super sharp image
- 170° ultra wide viewing angle
- 4 infra-red lights - excellent night vision
- Completely Waterproof - IP68 rating

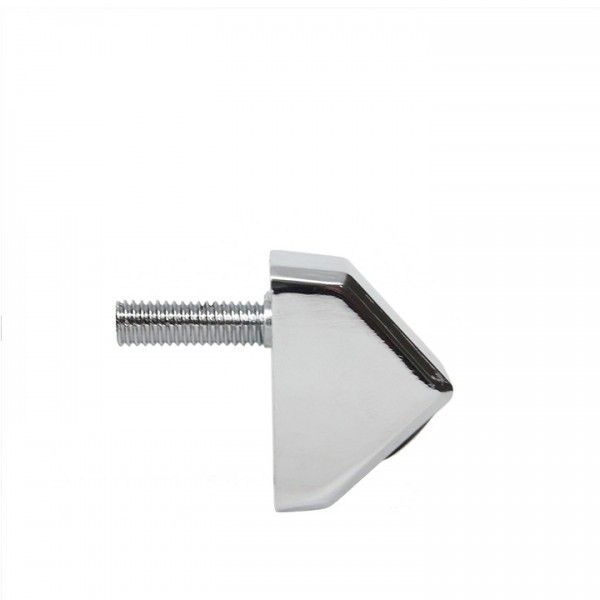

- Compact design - mounts upside down with screw pointing up
Speak to an expert
The RVS-BV-812-01 from RVS Systems is a backup camera that boasts infra-red lights which enable it to provide a clear image even in the darkest night. With a flush design, this backup camera can fit virtually any vehicle and is hardly noticeable when mounted. It comes with a completely waterproof encasing with an IP68 rating, which means it's fit to function in all weather conditions. The camera comes with a 66' cable.
RVS Systems RVS-BV-812-01 Camera Features
- Resolution: 420 TV lines - super sharp image delivery for clear visibility
- Viewing Angle: 170° ultra wide viewing angle - expands your field of view to minimize blind spots
- Night Vision: 4 infra-red lights - provides excellent night vision for improved safety during low light conditions
- Waterproof Rating: Completely Waterproof - IP68 rating ensures reliable performance in rain or harsh weather
- Design: Compact design - enables versatile mounting options with a discreet appearance
Detailed Specifications for RVS Systems RVS-BV-812-01
| Resolution | 420 TV Lines |
| Viewing Angle | 170° |
| Night Vision | 4 Infra-red Lights |
| Waterproof Rating | IP68 |
| Cable Length | 66 Feet |
| Mounting Type | Flush mount with screw pointing up |
SKU  | RVS-BV-812-01 |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Image Pixels-Effective | 656X492 |
| Minimum Scene Illumination | 0.5 Lux / F1.2 (Lux With LED) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +80°C |
| S/N Ratio | More Than 48dB |
| Scanning System | 2:1 Interlace |
| Weatherproof | IP68 |
| Synchronization | Internal |
| Angle of View | 120° / 170° |
| Backlight Compensation | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
