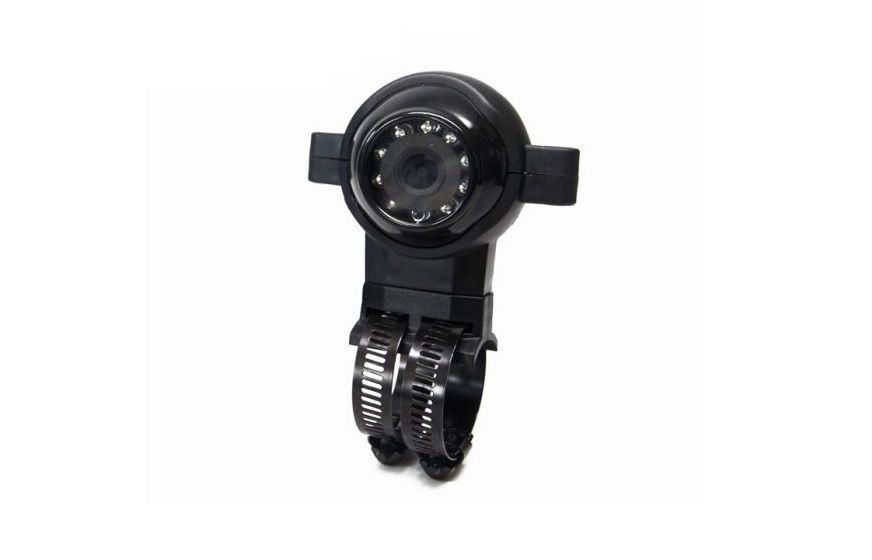

RVS Systems RVS-ARM-FR-01 120° 420 TVL Freightliner Arm Camera, 66' Cable
SKU
RVS-ARM-FR-01
Model No
RVS-ARM-FR-01
$144.11
Product Highlights
- Easily fits onto the arm bracket of various trucks
- Simple install - no drilling necessary
- Ultra-wide 120° viewing angle
- 10 infra-red lights - excellent night vision
- Completely waterproof camera - IP68K
Speak to an expert
The RVS-ARM-FR-01 from RVS Systems is a premium Arm Camera designed specifically for Freightliner trucks, allowing for easy installation directly onto the arm bracket without any drilling. With its wide 120° viewing angle and advanced night vision capabilities, this camera enhances safety and visibility while driving. Built to withstand harsh conditions, it's waterproof and offers superior vibration resistance, making it an ideal choice for truck owners seeking reliability and performance.
RVS Systems RVS-ARM-FR-01 Camera Features
- Easy Installation: Easily fits onto the arm bracket of various trucks, making it convenient for users.
- No Drilling Required: Simple install - no drilling necessary, which prevents damage to the vehicle.
- Wide Viewing Angle: Ultra-wide 120° viewing angle ensures extensive coverage for safer driving.
- Night Vision: 10 infra-red lights provide excellent night vision, enhancing visibility in low-light conditions.
- Waterproof: Completely waterproof camera - IP68K rating guarantees performance in all weather conditions.
RVS Systems RVS-ARM-FR-01 Detailed Specifications
| Camera Type | Arm Camera |
| Viewing Angle | 120° |
| Lens Size | 2.8mm |
| Infra-red Lights | 10 lights for night vision |
| Waterproof Rating | IP68 |
| Vibration Rating | 10G |
| Clamp Sizes | Larger clamp: 4" max, 3" min; Smaller clamp: 1.25" max, 1" min |
| Camera Cable | 66' with double sided Female Air-Craft Grade Connection |
SKU  | RVS-ARM-FR-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -40°C - +80°C / RH 95% Max |
| Dimensions (W x H) | Large Clamp Min/Max Diameter: 4"/3", Small Clamp Min/Max Diameter 1.25"/1" |
| Power Consumption | <3W |
| Video Output | 1Vp.p 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 120° |
| IR LEDs | 10 |
| Auto Gain Control | Yes |
