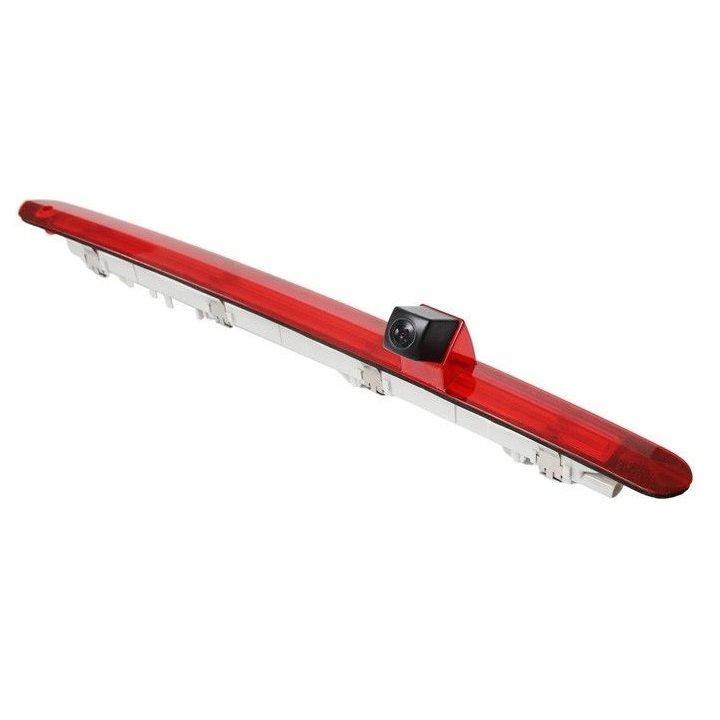

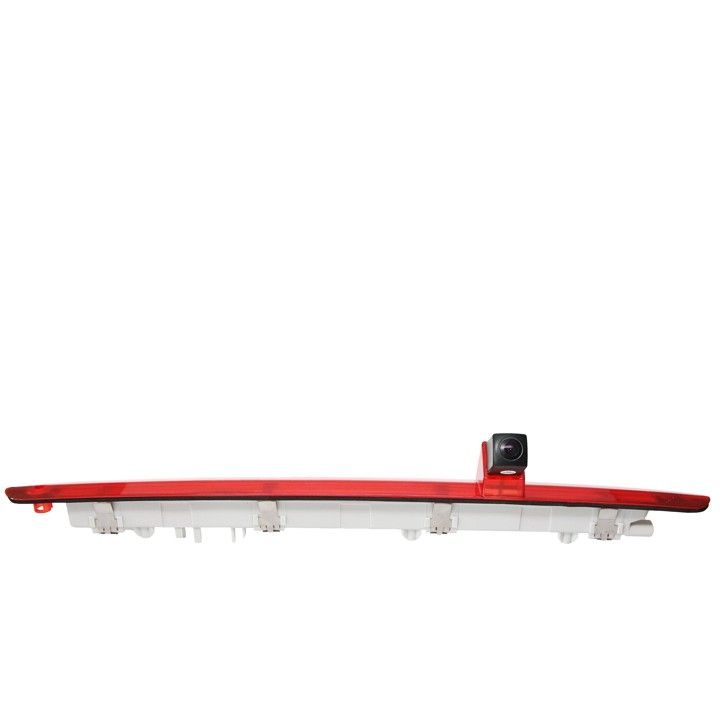

RVS Systems RVS-925-06 Mercedes-Benz Metris Van Third Brake Light Backup Camera, 16' Cable, RCA Adapter
SKU
RVS-925-06
Model No
RVS-925-06
$222.59
Product Highlights
- Designed for 2016 and onward Mercedes-Benz Metris Vans
- Replaces third brake light for a factory-like install
- 170° ultra-wide viewing angle
- Completely waterproof camera - IP69K
Speak to an expert

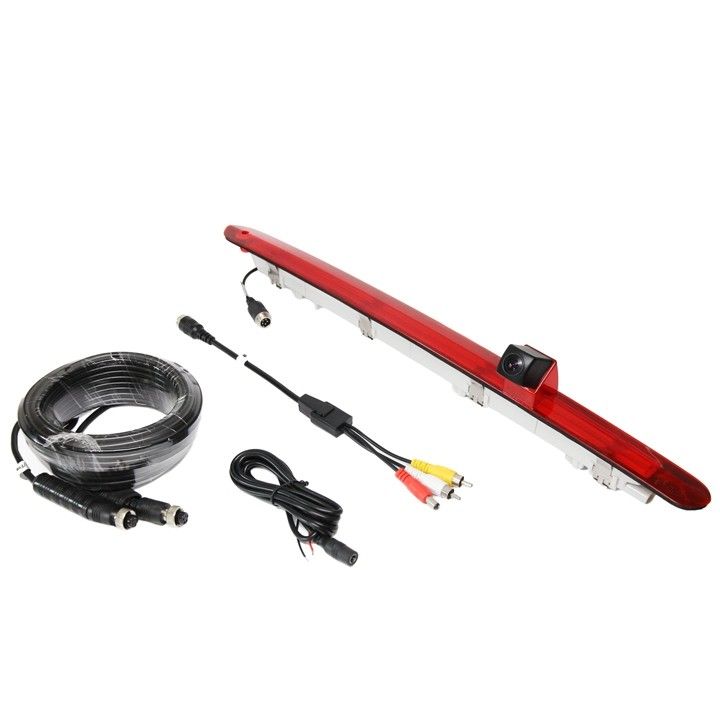

The RVS-925-06 from RVS Systems is a Mercedes-Benz Metris Van Third Brake Light Backup Camera equipped with an ultra-wide 170° viewing angle and all the wires, connectors, and mounts you will need. The Third Brake Light is completely weatherproof with an IP69K rating, strong and reliable with a 5P lock connector and comes with a full year warranty. This camera works on Mercedes-Benz Metris Vans model years 2016 - 2019. Comes with 16' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power, Cable to connect power to RCA adapters.
RVS Systems RVS-925-06 Camera Features
- Designed for: 2016 and onward Mercedes-Benz Metris Vans for a perfect fit.
- Installation: Replaces third brake light for a factory-like install enhances aesthetics and functionality.
- Viewing Angle: 170° ultra-wide viewing angle ensures maximum visibility when reversing.
- Weatherproof: Completely waterproof camera with IP69K rating protects against the elements for reliable performance.
RVS Systems RVS-925-06 Detailed Specifications
| Model | RVS-925-06 |
| Viewing Angle | 170° |
| Weatherproof Rating | IP69K |
| Compatible Models | Mercedes-Benz Metris Vans (2016 - 2019) |
| Cable Length | 16' |
| Connection Type | 5 Pin Male to Male RCA with Male Power |
| Warranty | 1 Year |
SKU  | RVS-925-06 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Durability | Weather Resistant |
| Electronic Shutter | 1/60~1/100,000 Sec |
| Image Device | 1/3" CMOS |
| Operating Temperature | -40°C ~ +80°C |
| Dimensions (W x H) | 3.25" (H) x 19" (L) x 1.25" (D) |
| S/N Ratio | ≧48dB |
| Weatherproof | IP69 |
| Angle of View | 170° |
| Auto Gain Control | Yes |
