RVS Systems RVS-924718-CE 580 TVL Backup Camera System for Chevy City Express Vans
SKU
RVS-924718-CE
Model No
RVS-725642
$384.73
Product Highlights
- Mirror Monitor with 4.3" Display
- Camera Mounts Under Third Brake Light For Factory Like Install
- Distance Grid Lines for Backing Up Reference
- 170° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
Speak to an expert

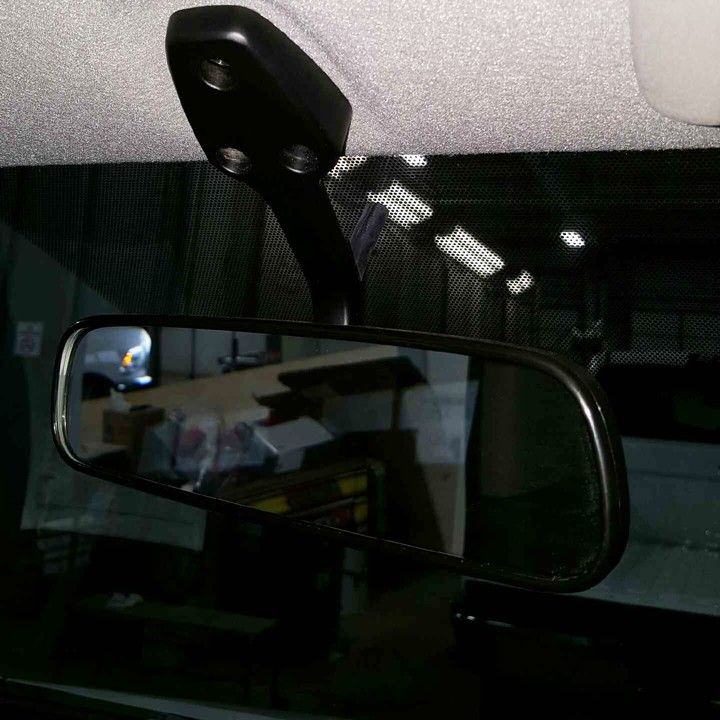

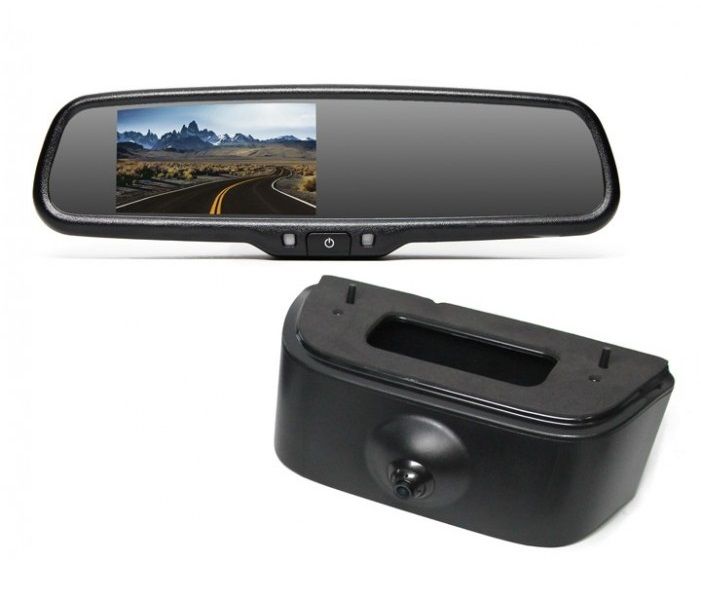

This backup camera system for the Chevy City Express van is complete with a color 4.3" rear view replacement mirror monitor with distance grid lines. The 4.3" monitor is placed to the left of the mirror while the entire surface is reflective and acts as a mirror. The camera with this system is completely waterproof and mounts right underneath the third brake light in the City Express for a clean, factory-like install. With all components necessary for installation included.
RVS Systems RVS-924718-CE Camera Features

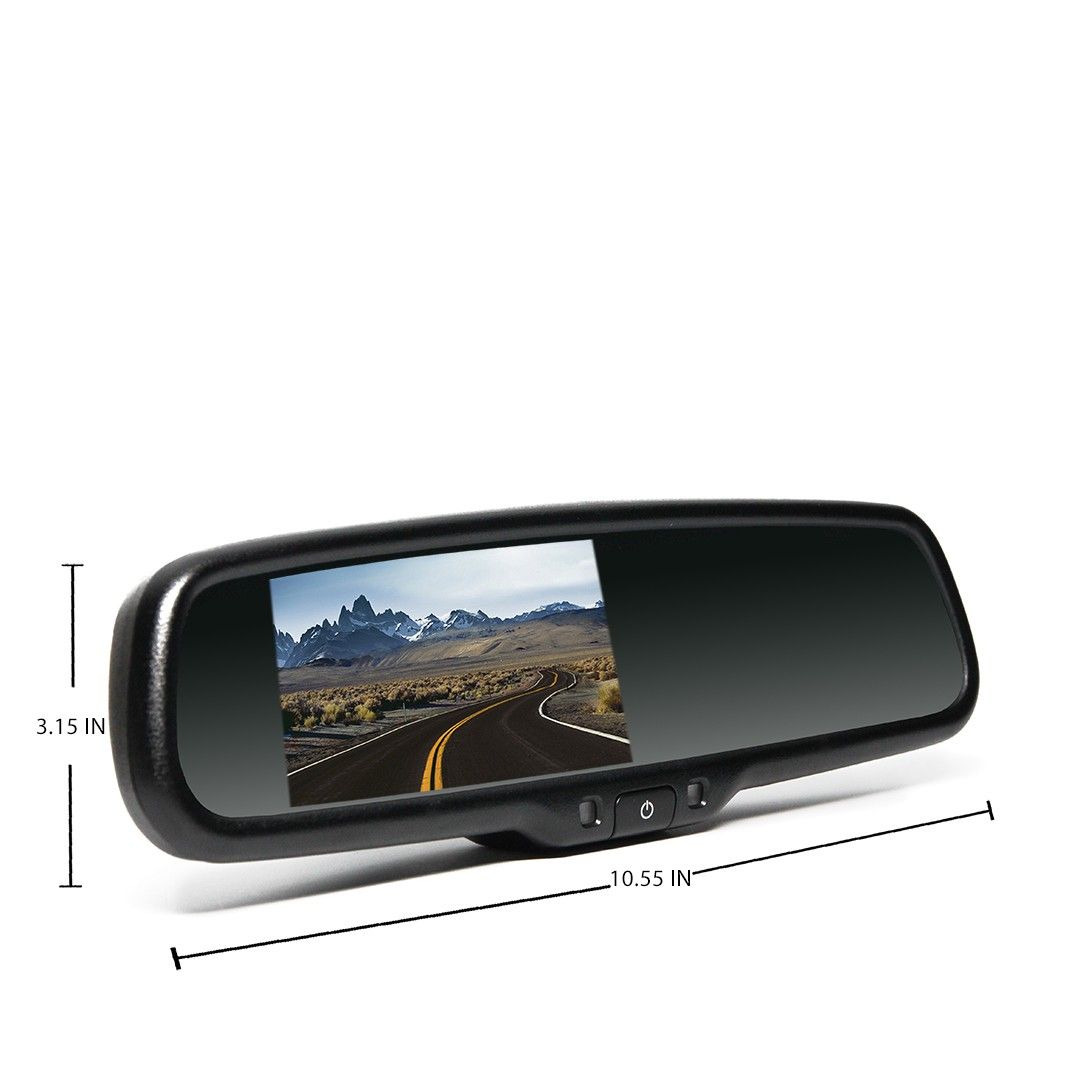

- Monitor: 4.3" color display functions as a mirror and provides clear visibility for safe reversing.
- Installation: Camera mounts under the third brake light for a sleek, integrated look without compromising the vehicle's aesthetics.
- Guidance Lines: Distance grid lines help in accurately judging distances when backing up, enhancing safety.
- Viewing Angle: 170° ultra wide viewing angle ensures a comprehensive rear view, eliminating blind spots.
- Durability: Completely waterproof camera rated IP68 for reliable performance in all weather conditions.
RVS Systems RVS-924718-CE Detailed Specifications
| Feature | Details |
|---|---|
| Display Size | 4.3 inches |
| Camera Mounting Location | Under third brake light |
| Viewing Angle | 170° |
| Waterproof Rating | IP68 |
| Distance Guidance Lines | Included |
SKU  | RVS-924718-CE |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 580 TVL |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Image Device | Super CMOS - CMD III |
| Image Pixels-Effective | 762 X 504 |
| Minimum Scene Illumination | 0.1 Lux |
| Operating Temperature | -30 °C ~ +75 °C |

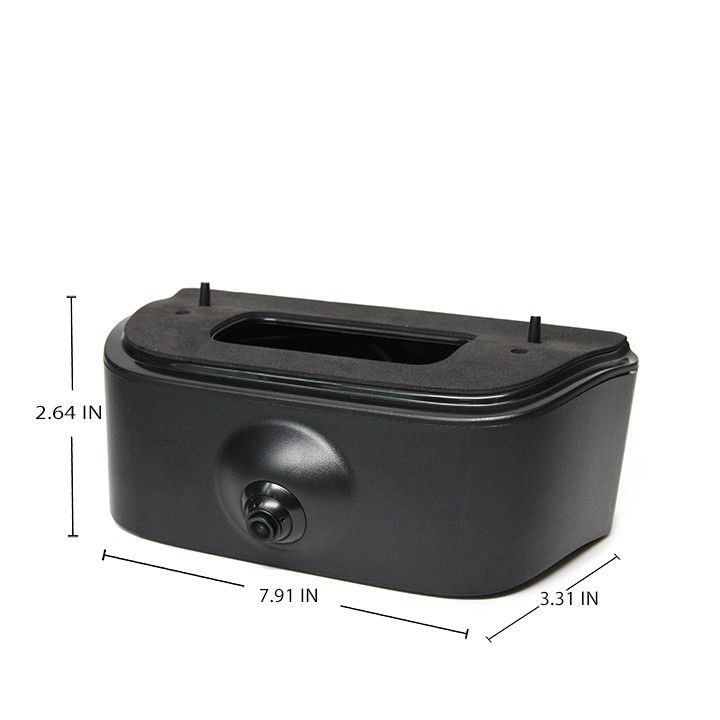

| Dimensions (W x H) | Camera: 2.64 " (H) x 7.91" (L) x 3.31" (D), Monitor: 4.5" (H) x 9" (L) x 1" (D) |
| Power Consumption | 60mA Max |
| Signal System | PAL / NTSC |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
