RVS Systems RVS-917619 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
SKU
RVS-917619
Model No
RVS-082571
$262.52
Product Highlights
- Replacement or Clip-on 7" Mirror Monitor
- Break Light Housing - Replaces Third Brake Light
- Distance Grid Lines for Backing Up Reference
- 130° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
Speak to an expert
RVS Systems RVS-917619 Backup Camera Features

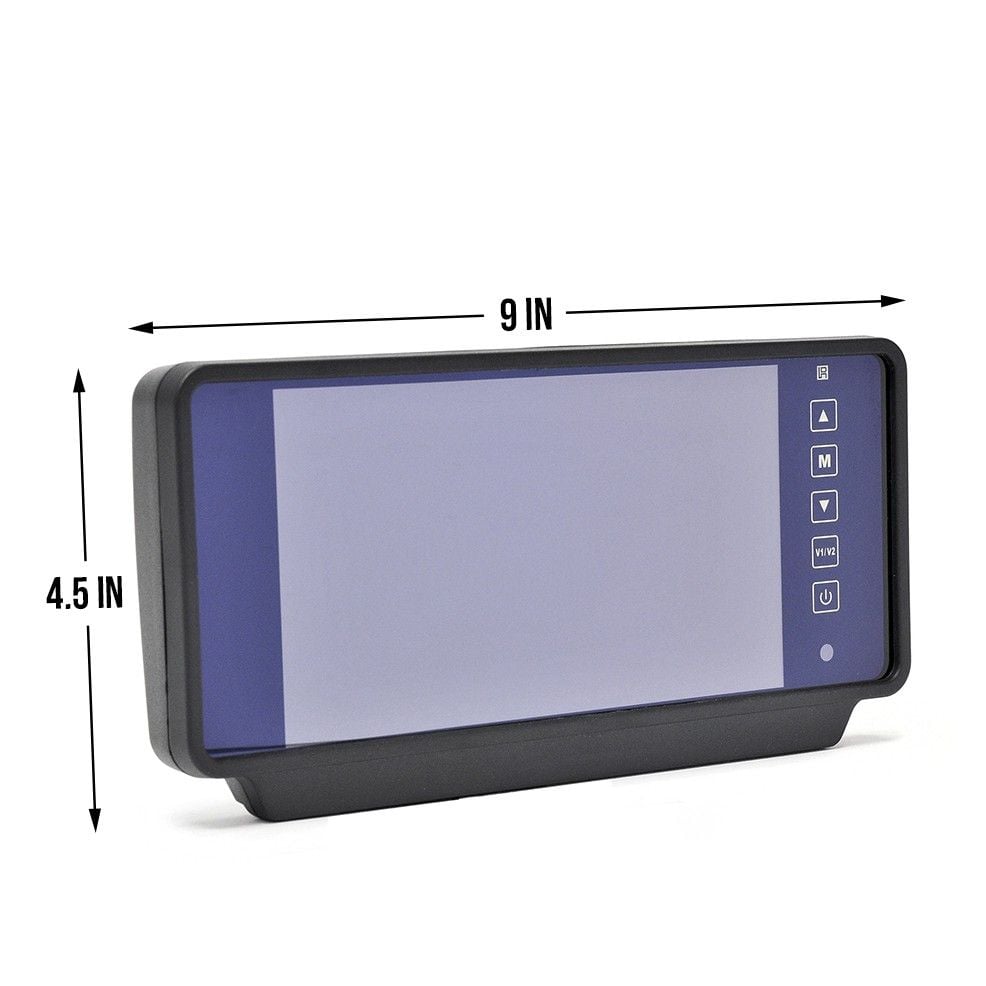

This backup camera system comes with a Mirror Mounted Monitor and a camera mounted in a brake light housing. The 7" TFT LCD Color Monitor comes with adjustable grid lines that can be turned on or off. Its installation is flexible with the Brake Light Camera able to mount to any flat surface, making this system ideal for a wide variety of vehicles. The system comes included with all parts necessary for installation.
Features
- Replacement or Clip-on 7" Mirror Monitor: Provides clear visibility and easy installation, ensuring you can easily mount it without hassle.
- Brake Light Housing - Replaces Third Brake Light: Integrates seamlessly into your vehicle’s design, preserving aesthetics while enhancing safety.
- Distance Grid Lines for Backing Up Reference: Helps improve accuracy while reversing, reducing the risk of collisions or accidents.
- 130° Ultra Wide Viewing Angle and Excellent Night Vision: Offers a comprehensive view and clarity in low-light conditions, enhancing safety during night driving.
- Completely Waterproof Camera - IP68: Ensures durability and functionality in all weather conditions, so you can rely on it rain or shine.
RVS Systems RVS-917619 Detailed Specifications
| Monitor Type | 7" TFT LCD Color Monitor |
| Camera Lens | 2.1mm |
| Viewing Angle | 130° Ultra Wide |
| Night Vision Capability | Yes |
| Waterproof Rating | IP68 |
| Installation Type | Brake Light Housing |
| Grid Lines | Adjustable On/Off |
| Mounting Flexibility | Can mount on any flat surface |
SKU  | RVS-917619 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +50°C |
| Dimensions (W x H) | Camera: 1.25" (H) x 11" (L) x 1.25" (D), Multiplexer: 1.25" (H) x 4.5" (L) x 4" (D), Monitor: 4.5" (H) x 9" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
