RVS Systems RVS-917-04 700 TVL Surface Mounted Third Brake Light Backup Camera, 66' Cable, RCA Adapter
SKU
RVS-917-04
Model No
RVS-917-04
$203.51
Product Highlights
- Universal third brake light camera
- Replaces third brake light for a factory-like install
- Brake lights included
- 150° ultra-wide viewing angle
- Completely waterproof camera - IP68
Speak to an expert

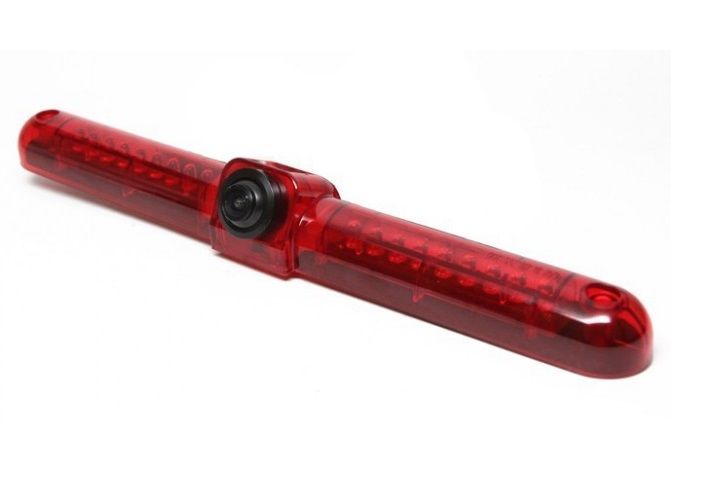

The RVS-917-04 from RVS Systems is a Surface Backup Camera complete with a 150° MT9V139 rear backup camera with night vision and all the wires, connectors and mounts you will need. The Third Brake Light is completely weatherproof with an IP68 rating, strong and reliable, shock resistant with a 10G vibration rating (highest in the industry). The camera comes with 66' Camera Cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power, Cable to connect power to RCA adapters.
RVS Systems RVS-917-04 Camera Features
- Universal third brake light camera: Seamlessly integrates with your vehicle for a professional appearance.
- Replaces third brake light for a factory-like install: Ensures minimal modifications with a clean look.
- Brake lights included: Enhances safety by providing additional visibility to drivers.
- 150° ultra-wide viewing angle: Offers extensive coverage to eliminate blind spots when reversing.
- Completely waterproof camera - IP68: Designed to withstand harsh weather conditions for reliable performance.
RVS Systems RVS-917-04 Detailed Specifications
| Camera Type | Surface Mounted Backup Camera |
| Viewing Angle | 150° MT9V139 ultra-wide angle |
| Night Vision | Yes |
| Weatherproof Rating | IP68 |
| Vibration Rating | 10G (highest in industry) |
| Camera Cable Length | 66' |
| Connection Type | 5 Pin Male to Male RCA with Male Power |
| Includes | All necessary wires, connectors, and mounts |
SKU  | RVS-917-04 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant, Wide Dynamic Range |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Image Device | 1/3" 1099 Color Camera |
| Image Pixels-Effective | 976 (H) x 496 (V) |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 90% Max |
| Operating Temperature | -40°C - 50°C |

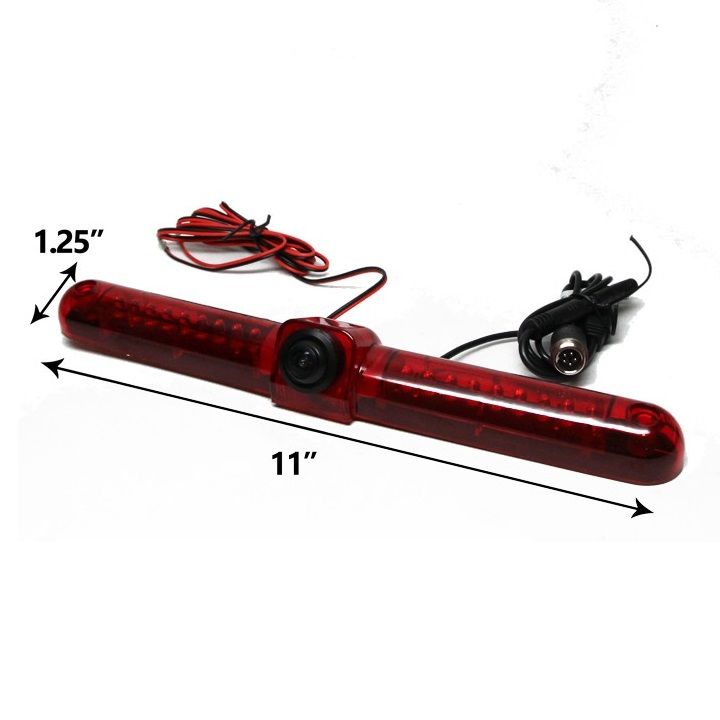

| Dimensions (W x H) | 1.25" (H) x 11" (L) x 1.25" (D) |
| Power Consumption | <50mA@12V |
| S/N Ratio | < 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Angle of View | 150° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
