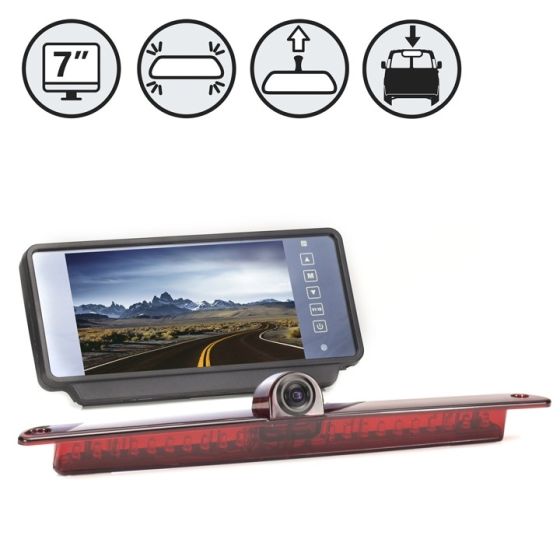

RVS Systems RVS-916619N-NM 700 TVL 7" Replacement Mirror Monitor, Sprinter Backup Camera, 33ft Cable
SKU
RVS-916619N-NM
Model No
RVS-916619N-NM
$515.95
Product Highlights
- Replacement or Clip-on 7" Mirror Monitor (See Item Options)
- Break Light Housing - Replaces Third Brake Light
- 150° Ultra Wide Viewing Angle with Excellent Night Vision
- Rotatable Lens - can rotate to view hitch or traffic
- Completely Waterproof Camera - with an IP68 rating
Speak to an expert
The RVS-916619N-NM from RVS Systems is a high-quality backup camera system designed for Mercedes Sprinter vans, featuring a sharp 7" COLOR TFT LCD Digital Mirror Monitor. Offering a wide 16:9 aspect ratio and effective distance grid lines, this system ensures safe and accurate reversing. The robust 150° backup camera is equipped with night vision capabilities, and its weatherproof design ensures durability in all environments. With easy installation and multiple mounting options for various van models, this system is a reliable choice for enhanced safety and visibility while driving.
RVS Systems RVS-916619N-NM Key Features
- Replacement or Clip-on 7" Mirror Monitor: Versatile installation options to fit your specific vehicle requirements.
- Brake Light Housing: Efficiently replaces the third brake light, maintaining vehicle aesthetics while enhancing function.
- 150° Ultra-Wide Viewing Angle: Ensures maximum visibility when reversing, significantly reducing blind spots.
- Rotatable Lens: Allows for adjustable camera positioning for optimal viewing of hitch or surrounding traffic.
- Completely Waterproof Camera: With an IP68 rating, it withstands harsh weather conditions for reliable performance.
RVS Systems RVS-916619N-NM Detailed Specifications
| Product Type | Mercedes Sprinter Backup Camera System |
| Monitor Size | 7" COLOR TFT LCD |
| Aspect Ratio | 16:9 widescreen |
| Backup Camera Angle | 150° |
| Lens Type | MT9V139 with Night Vision |
| Camera Housing | Third Brake Light Replacement |
| Weather Rating | IP68 Waterproof |
| Shock Resistance | 10G vibration rating |
| Included Power Harness | 3-port power harness |
| Camera Cable Length | 33 feet |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
SKU  | RVS-916619N-NM |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Gamma Correction | r=0.45 - 1.0 |
| Image Device | 1/3" 1099 Color |
| Minimum Scene Illumination | 0.01 Lux |
| Operating Humidity | 90% Max |
| Operating Temperature | -40°C ~ -70°C |
| Dimensions (W x H) | 1.18" (H) x 13.40" (L) x 1" (D) |
| S/N Ratio | < 48dB |
| Video Output | 1Vp.p 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 150° |
| Auto Gain Control | Yes |
