RVS Systems RVS-912619 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
SKU
RVS-912619
Model No
RVS-082530
$381.59
Product Highlights
- Replacement or Clip-on 7" Mirror Monitor (See Item Options)
- Break Light Housing - Replaces Third Brake Light
- Distance Grid Lines for Backing Up Reference
- 130° Ultra Wide Viewing Angle and 6 Infra-Red Lights
- Completely Waterproof Camera - IP68
Speak to an expert

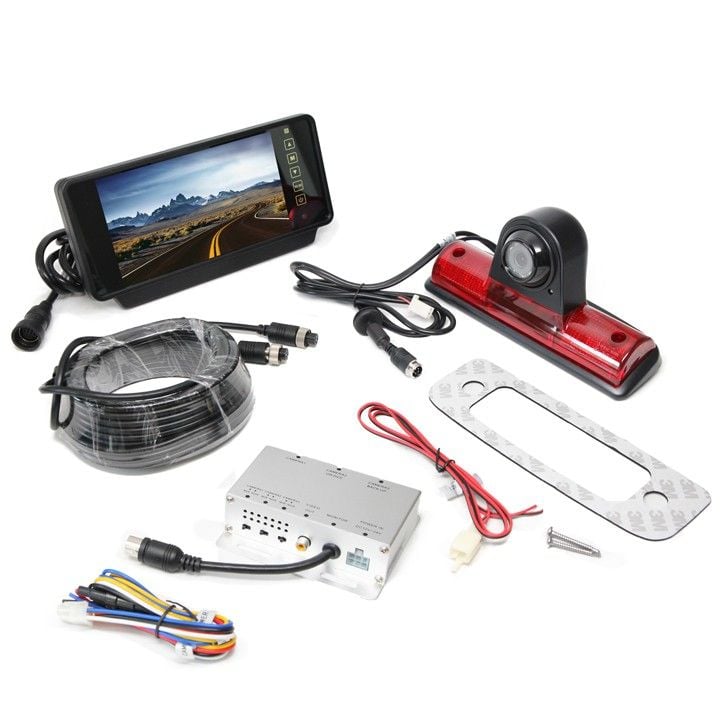

This Nissan NV Backup Camera System is complete with a crystal clear 7" COLOR TFT LCD Digital Mirror Monitor with a 16:9 wide screen and distance grid lines, a 3 channel multiplexer with automatic system switch, a 130° angle backup camera with night vision and all the wires, connectors and mounts you will need. The Nissan NV Rear View Backup Camera is completely weatherproof with an IP68 rating, strong and reliable, shock resistant, with a 10G vibration rating (highest in the industry).
Nissan NV RVS-912619 Camera Features
Features

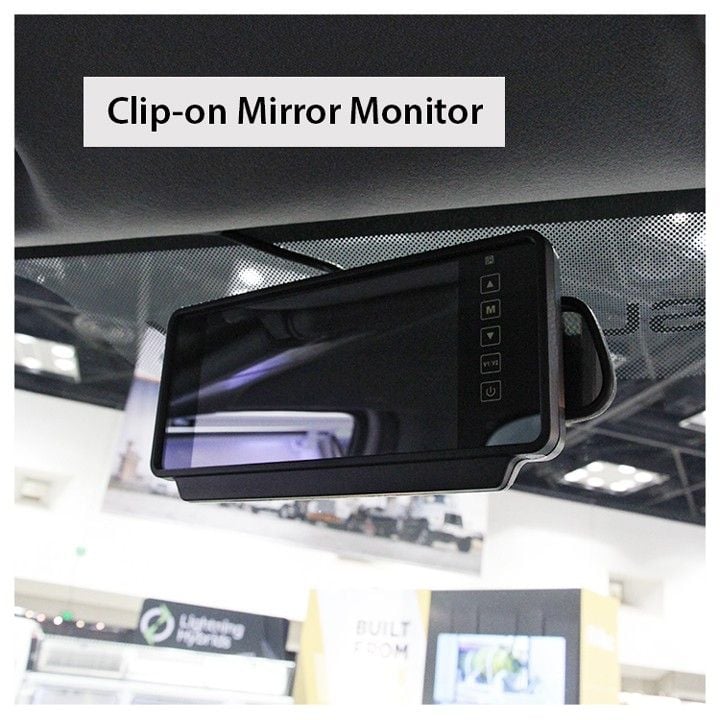

- Replacement or Clip-on 7" Mirror Monitor: Provides flexibility in installation and ease of use, ensuring a perfect fit for your Nissan NV.
- Break Light Housing: Replaces the third brake light for seamless integration, maintaining the vehicle's aesthetic while enhancing safety.
- Distance Grid Lines for Backing Up Reference: Offers visual guidance for safer reversing maneuvers, preventing obstacles and ensuring clarity.
- 130° Ultra Wide Viewing Angle: Expands your field of view for enhanced awareness of surroundings, bolstering safety during parking and reversing.
- Completely Waterproof Camera - IP68: Guarantees durability and reliability in all weather conditions, ensuring long-lasting performance.
Nissan NV RVS-912619 Detailed Specifications
| Camera Type | 480 TVL Analog Outdoor Backup Camera |
| Lens Size | 2.1mm |
| Monitor Size | 7" TFT LCD |
| Monitor Type | Digital Mirror |
| Viewing Angle | 130° |
| Weatherproof Rating | IP68 |
| Vibration Rating | 10G |
| Night Vision | Yes (with 6 Infra-Red Lights) |

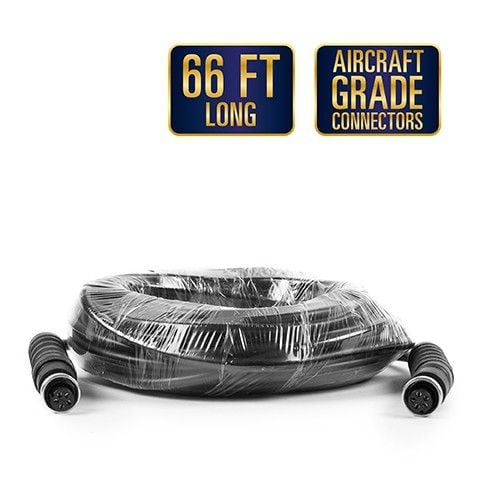

| Installation Parts | Includes all necessary wires, connectors, and mounts |
SKU  | RVS-912619 |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.3 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +50°C |

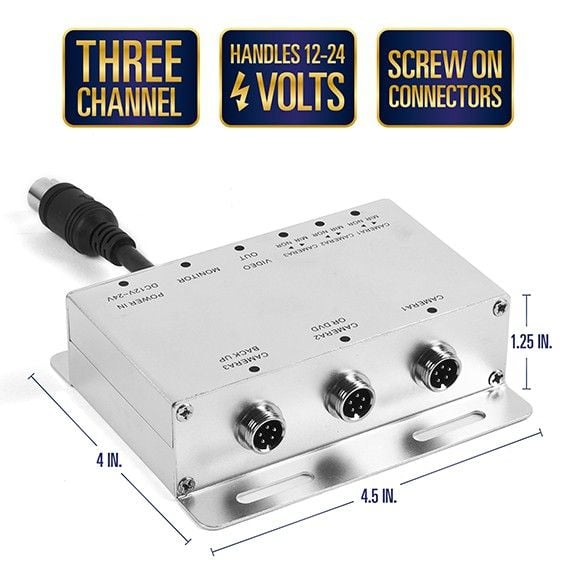

| Dimensions (W x H) | Camera: 3.27" (H) x 8.46" (L) x 2.83" (D), Multiplexer: 1.25"(H) 4.5" (L) 4" (D), Monitor: 4.5" (H) x 9" (L) x 1" (D) |
| Power Consumption | 5W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 130° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
