RVS Systems RVS-901-06 420 TVL 92° Dome Camera, 16' Cable, RCA Adapter
SKU
RVS-901-06
Model No
RVS-901-06
$108.12
Product Highlights
- Designed For Indoor Use
- 92° Viewing Angle
- 9 Infra-Red Lights - Great Night Vision
- 420 TV Lines - High-Quality Image
- Compact Design
Speak to an expert

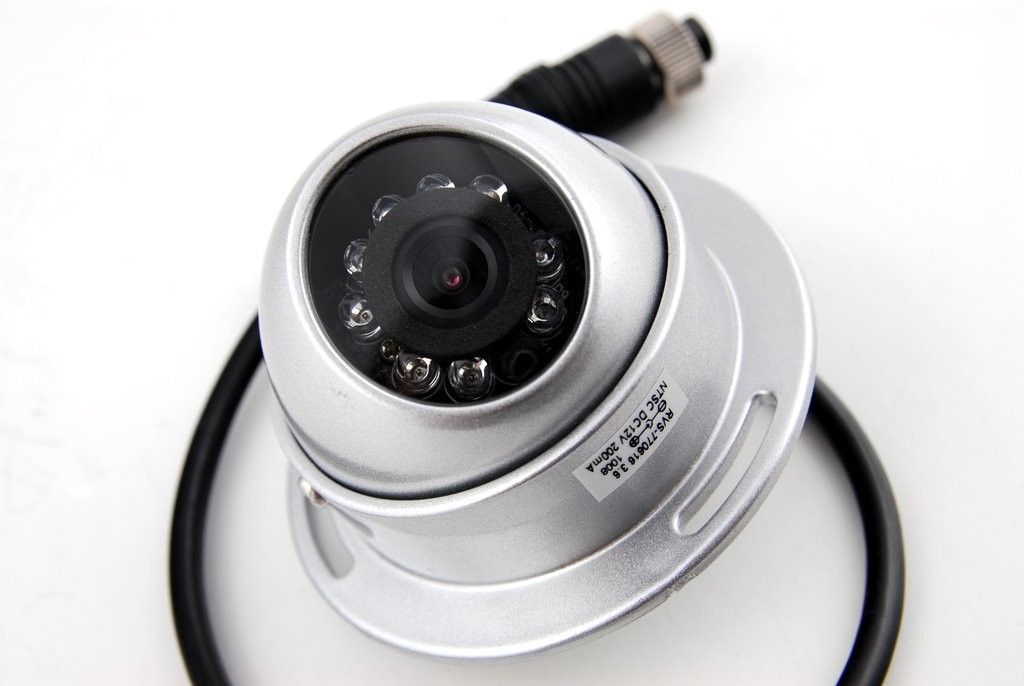

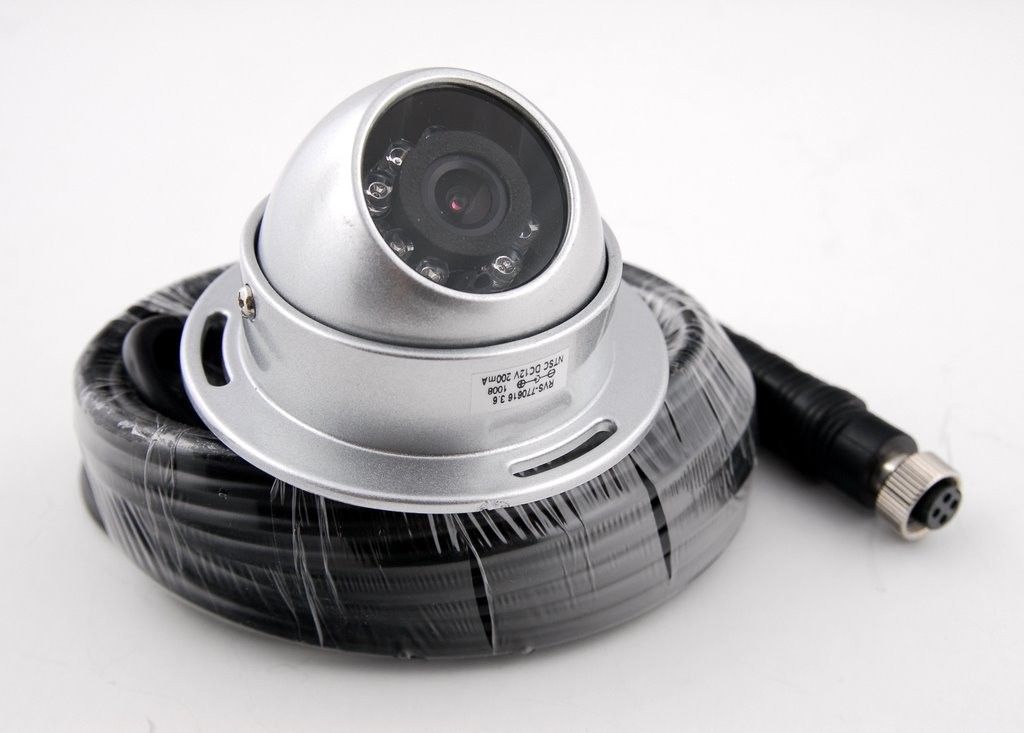

The RVS-901-06 from RVS Systems is a 92° angle dome camera that is perfect for indoor monitoring. With a forward-facing view, this camera features a 250,000 pixel 2.1 mm lens and 9 infra-red illuminators, allowing you to see in total darkness. Its IP65 rated casing ensures durability against minor weather conditions, making it a versatile solution. The package includes a 16' cable with double-sided female aircraft grade connectors, a 5 Pin Male to Male RCA, and a Male Power adapter, simplifying connections to any RCA input monitor and power source.
RVS Systems RVS-901-06 Camera Features
- Designed For Indoor Use: Ideal for home or office surveillance, ensuring safety in indoor environments.
- 92° Viewing Angle: Provides wide coverage for monitoring larger areas without blind spots.
- 9 Infra-Red Lights - Great Night Vision: Enables clear visuals even in complete darkness, enhancing security during nighttime.
- 420 TV Lines - High-Quality Image: Delivers sharp and detailed images for effective surveillance and monitoring.
- Compact Design: Sleek and discreet to blend seamlessly with indoor decor while providing monitoring efficiency.
RVS Systems RVS-901-06 Detailed Camera Specifications
| Camera Type | Dome Camera |
| Viewing Angle | 92° |
| Image Sensor Pixels | 250,000 Pixels |
| Lens Size | 2.1 mm |
| Night Vision | 9 Infra-Red Lights |
| Resolution | 420 TV Lines |
| Casing Rating | IP65 |
| Cable Length | 16 Feet |
| Connector Type | 5 Pin Male to Male RCA |
| Power Supply | Male Power Connector |
SKU  | RVS-901-06 |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 1 Lux (IR Off), 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -20°C - 70°C |
| Dimensions (W x H) | 2.36" (H) x 3.14" (L) x 2" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Angle of View | 92° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
