RVS Systems RVS-901-05 420 TVL 92° Dome Camera, 33' Cable, RCA Adapter
SKU
RVS-901-05
Model No
RVS-901-05
$108.12
Product Highlights
- Designed For Indoor Use
- 92° Viewing Angle
- 9 Infra-Red Lights - Great Night Vision
- 420 TV Lines - High-Quality Image
- Compact Design
Speak to an expert
RVS Systems RVS-901-05 Camera Features

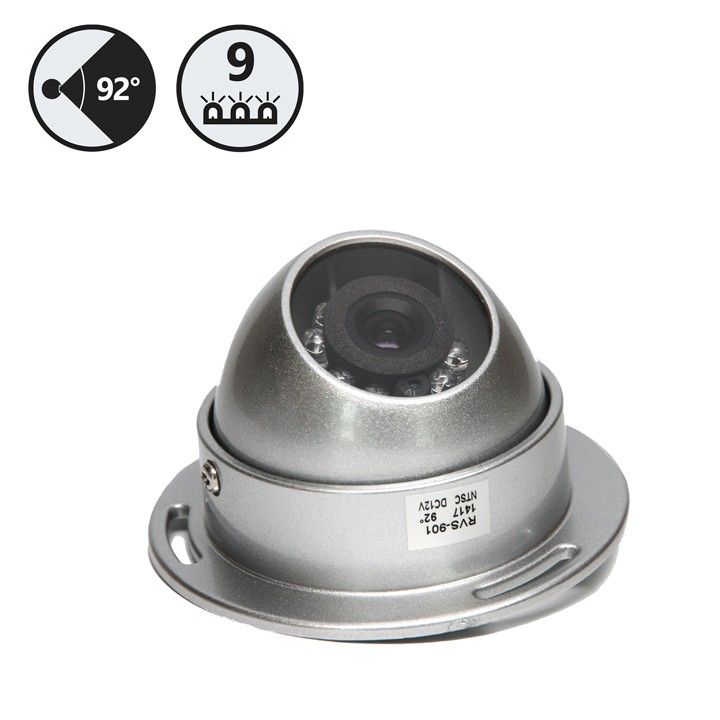

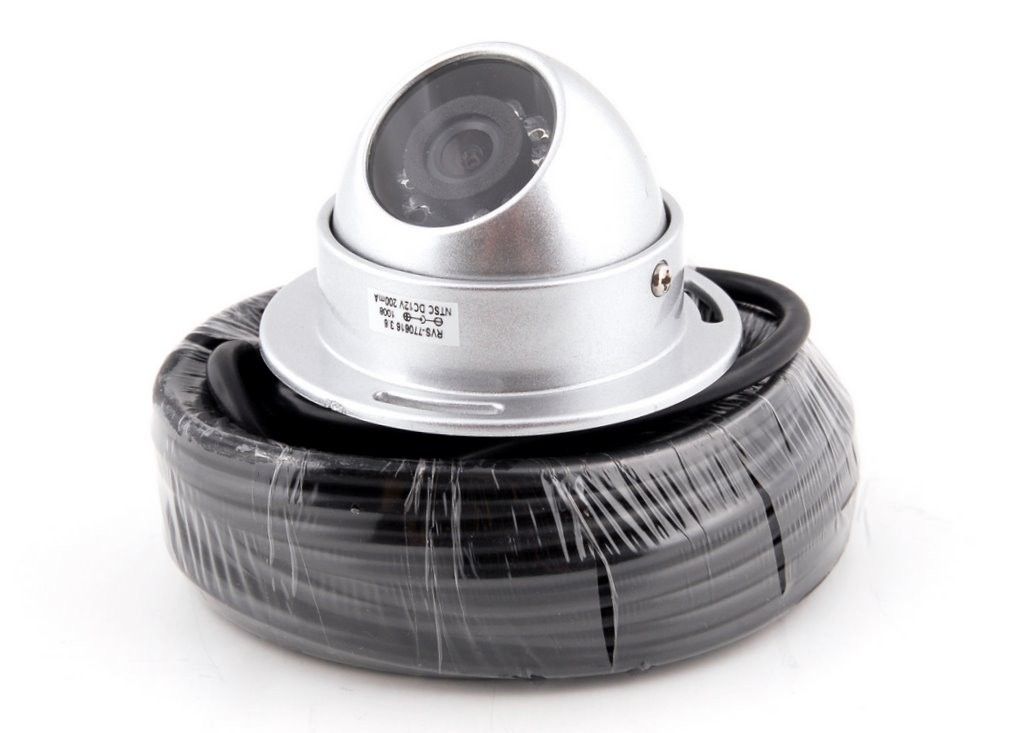

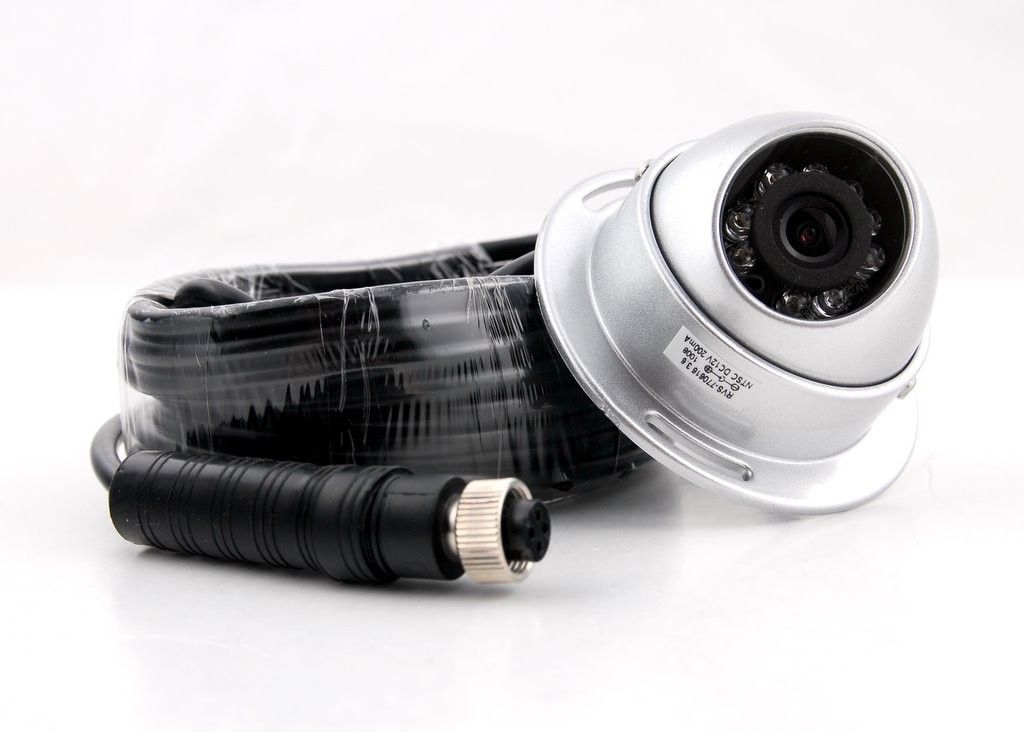

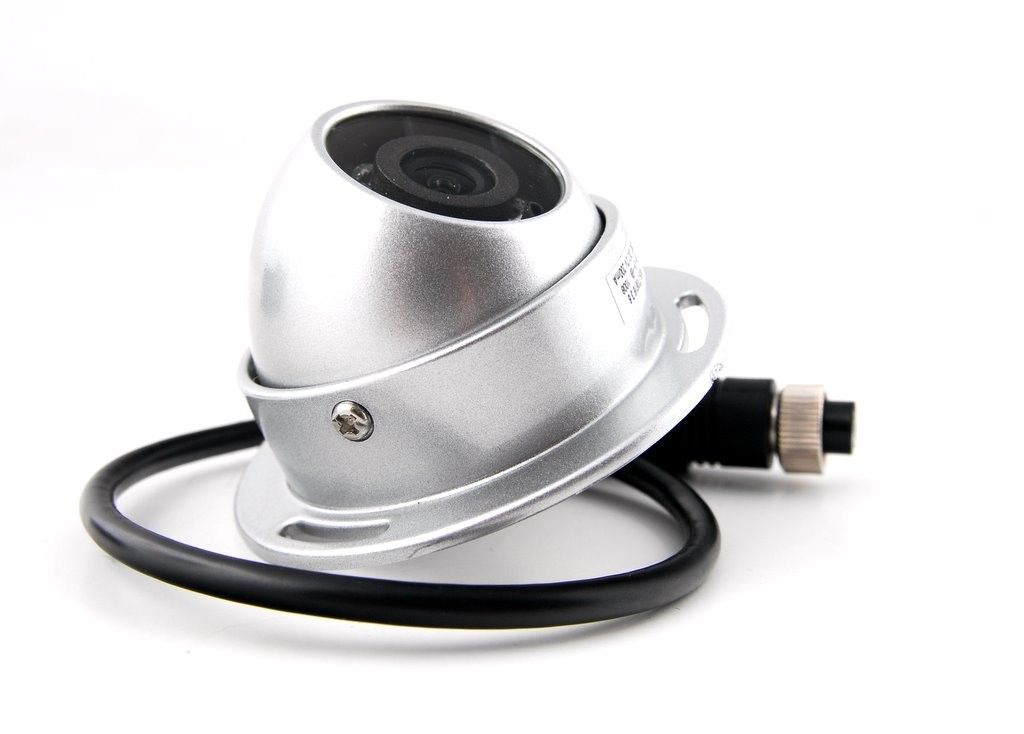

The RVS-901-05 from RVS Systems is a 92° angle dome camera perfect for indoor monitoring. The camera is a forward-facing view and features a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators, enabling visibility in total darkness. With an IP65 rated casing, it can withstand minor weather conditions. The camera comes with a 33' cable equipped with a double-sided Female Aircraft Grade Connection and 5 Pin Male to Male RCA with Male Power for easy connection to monitors.
Features
- Designed For Indoor Use: Tailored for seamless indoor monitoring, ensuring optimal performance in home or office environments.
- 92° Viewing Angle: Provides a wide field of view, allowing you to cover more area with a single camera.
- 9 Infra-Red Lights - Great Night Vision: Equipped with infra-red illuminators for clear visibility in complete darkness.
- 420 TV Lines - High-Quality Image: Offers superior image clarity for effective surveillance and monitoring.
- Compact Design: Space-saving design that allows for flexible installation options in various indoor settings.
RVS Systems RVS-901-05 Detailed Specifications
| Camera Type | Dome Camera |
| Image Sensor | 250,000 Pixels |
| Lens | 2.1 mm |
| Viewing Angle | 92 Degrees |
| Infra-Red Lights | 9 |
| Resolution | 420 TV Lines |
| Cable Length | 33 Feet |
| Adapter Type | RCA Adapter |
| Weather Resistance | IP65 Rated |
SKU  | RVS-901-05 |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 1 Lux (IR Off), 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -20°C - 70°C |
| Dimensions (W x H) | 2.36" (H) x 3.14" (L) x 2" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Angle of View | 92° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
