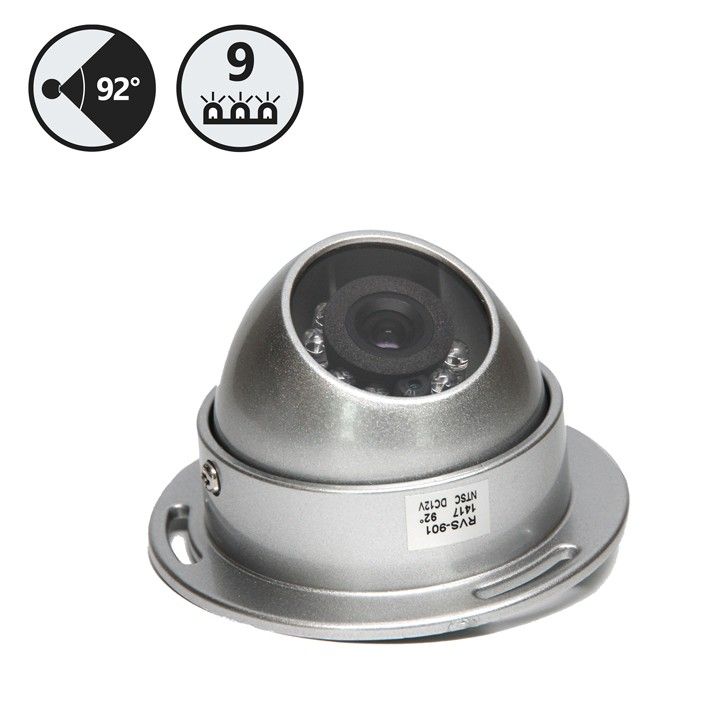

RVS Systems RVS-901-03 420 TVL 92° Dome Camera, 16' Cable
SKU
RVS-901-03
Model No
RVS-901-03
$108.12
Product Highlights
- Designed For Indoor Use
- 92° Viewing Angle
- 9 Infra-Red Lights - Great Night Vision
- 420 TV Lines - High-Quality Image
- Compact Design
Speak to an expert

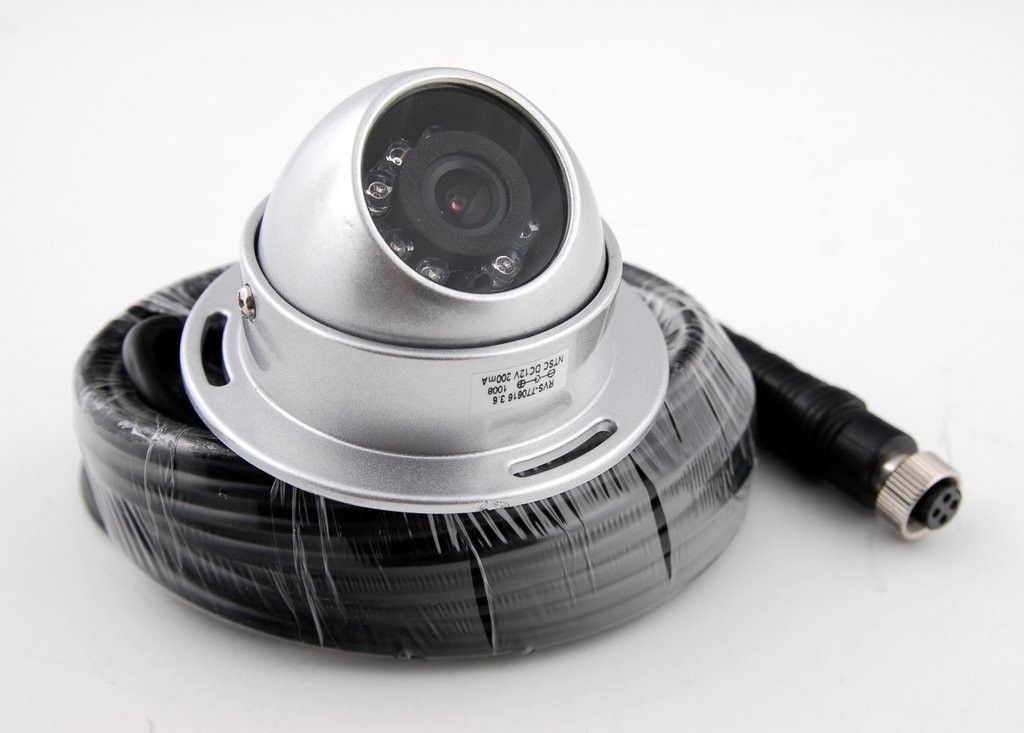

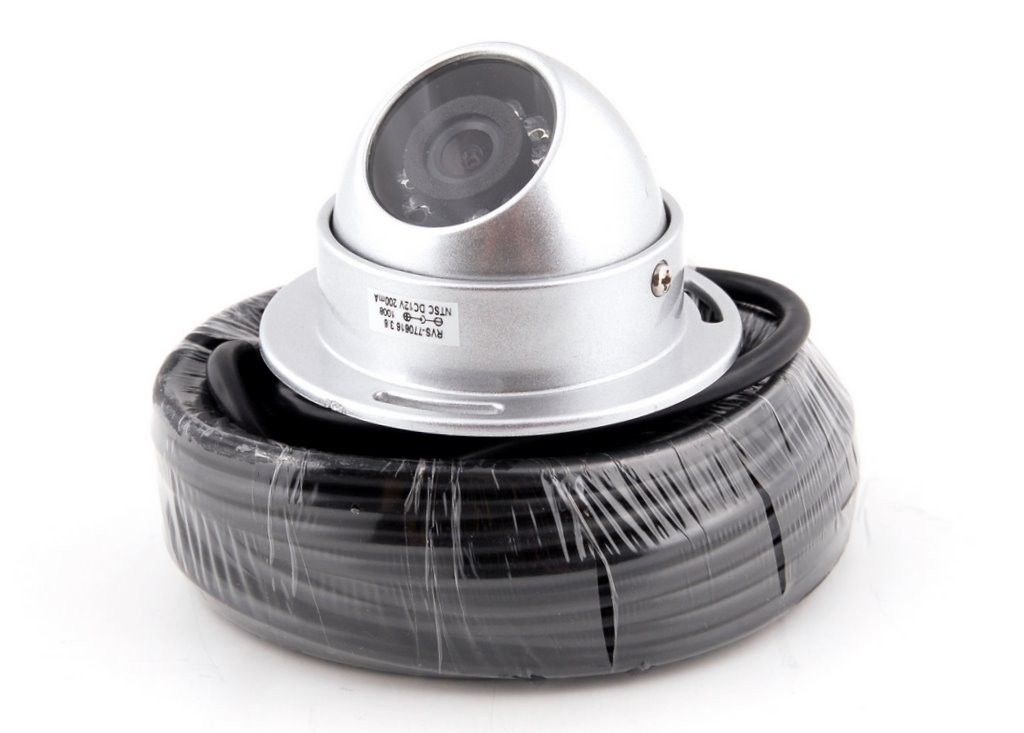

The RVS-901-03 from RVS Systems is a 92° angle dome camera that excels in indoor monitoring, offering a forward-facing view. It features a 250,000 pixel 2.1 mm lens equipped with 9 infra-red illuminators for visibility in total darkness. With an IP65 rated casing, the camera is designed to endure minor weather conditions, and the supplied 16' cable includes durable double-sided female aircraft grade connectors, perfect for extending the connection from the camera to the multiplexer or power harness.
RVS Systems RVS-901-03 Camera Features
- Indoor Monitoring: Specifically designed for indoor use, ensuring optimal surveillance in controlled environments.
- Wide Viewing Angle: The 92° angle allows for broader coverage, reducing blind spots and enhancing security.
- Exceptional Night Vision: 9 infra-red lights facilitate clear images in complete darkness, providing reliable monitoring around the clock.
- High-Quality Imaging: With 420 TV lines, experience detailed and sharp visuals, essential for accurate identification.
- Space-Saving Design: The compact design of the dome camera allows for discreet installation while still offering powerful features.
RVS Systems RVS-901-03 Detailed Camera Specifications
| Model | RVS-901-03 |
| Lens | 2.1 mm, 250,000 pixels |
| Infra-Red Illuminators | 9 |
| Viewing Angle | 92° |
| Image Quality | 420 TV Lines |
| Weather Resistance | IP65 Rating |
| Cable Length | 16' |
| Connector Type | Double-sided female aircraft grade connectors |
SKU  | RVS-901-03 |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 1 Lux (IR Off), 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -20°C - 70°C |
| Dimensions (W x H) | 2.36" (H) x 3.14" (L) x 2" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Angle of View | 92° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
