RVS Systems RVS-901-02 420 TVL 92° Dome Camera, 33' Cable
SKU
RVS-901-02
Model No
RVS-901-02
$108.12
Product Highlights
- Designed For Indoor Use

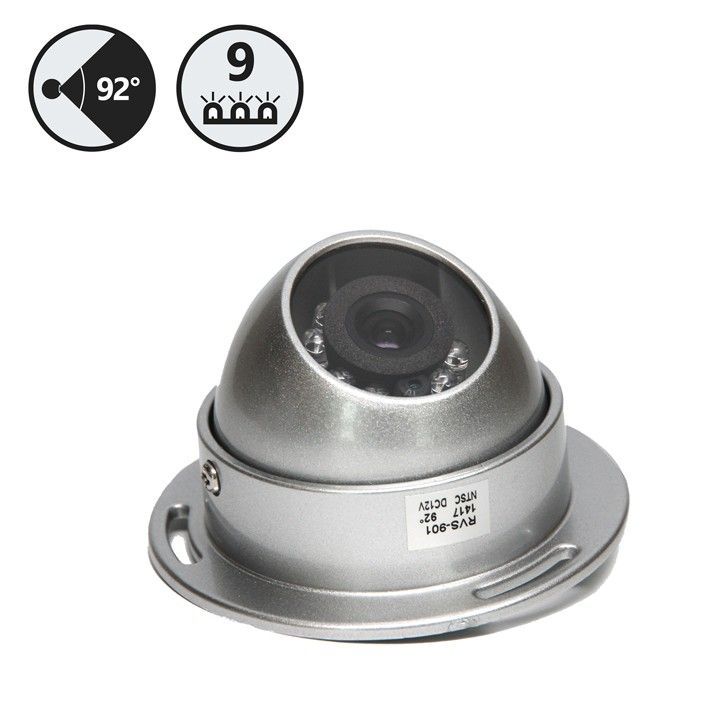

- 92° Viewing Angle
- 9 Infra-Red Lights - Great Night Vision
- 420 TV Lines - High-Quality Image
- Compact Design
Speak to an expert
RVS Systems RVS-901-02 Dome Camera Features

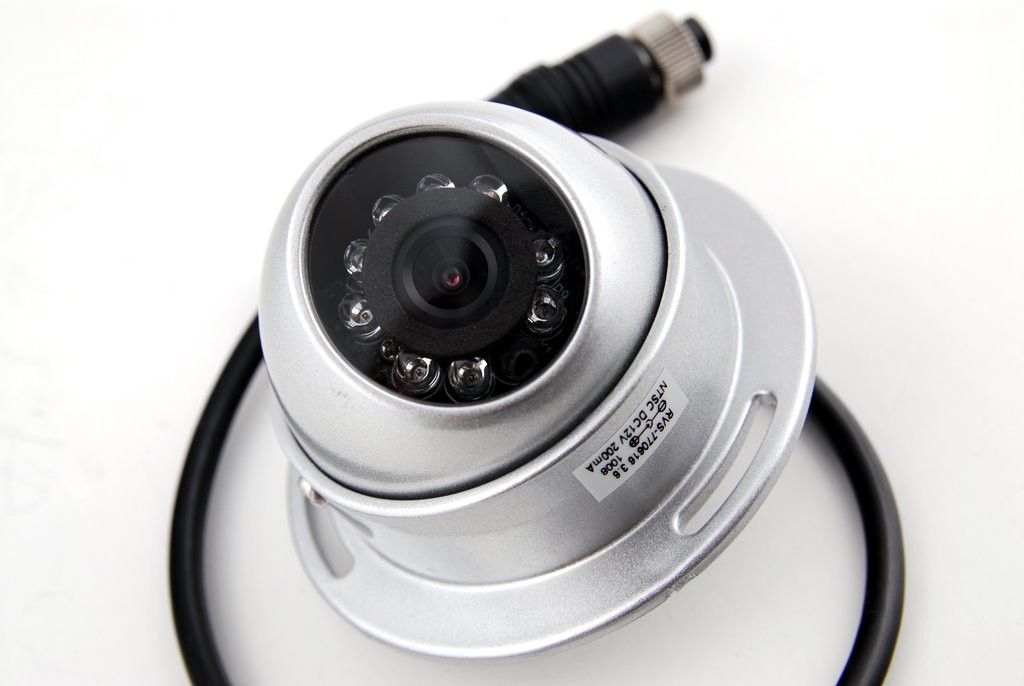

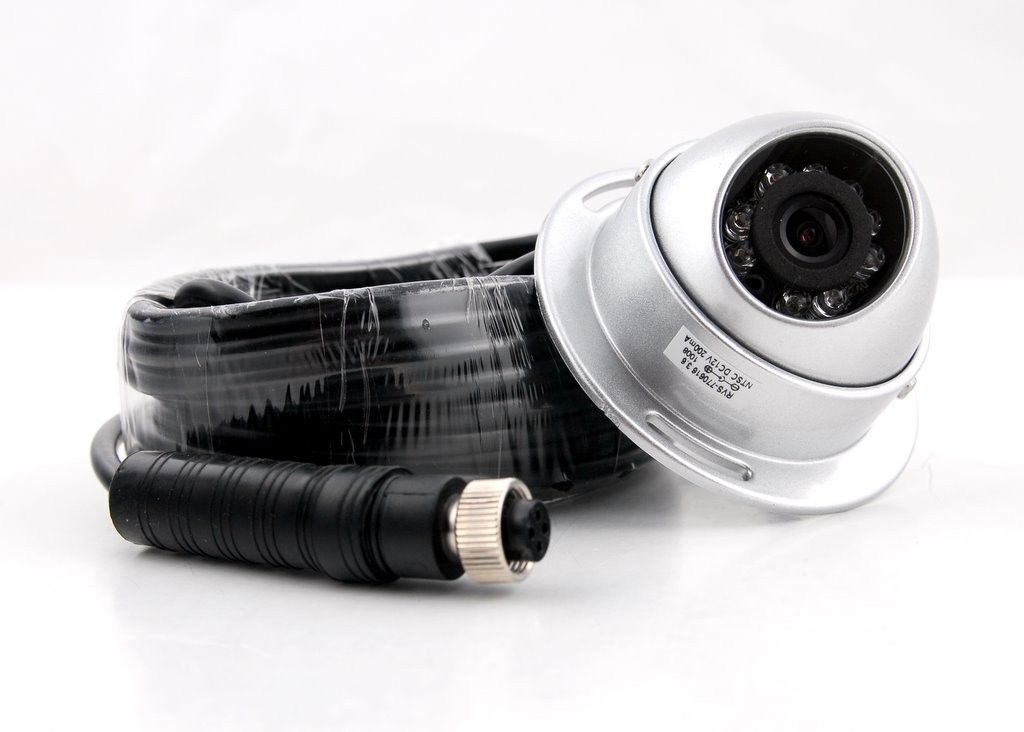

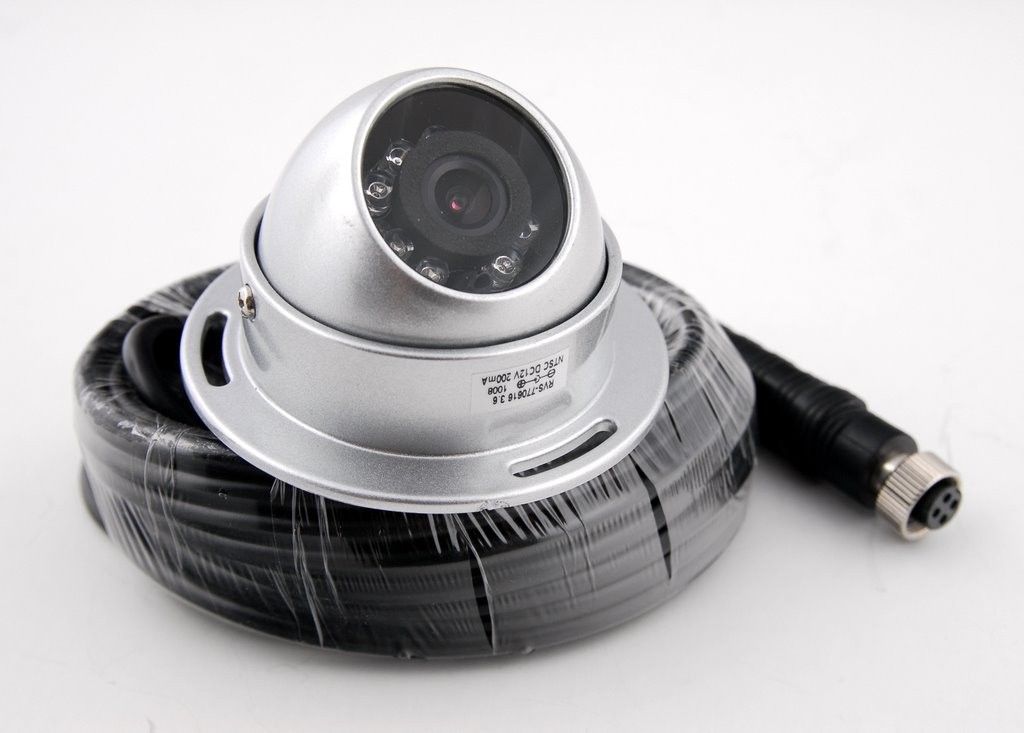

The RVS-901-02 from RVS Systems is a 92° angle dome camera is great for indoor monitoring. The camera is a forward-facing view. The dome camera boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enable you to see in total darkness. The casing of the camera has an IP65 rating which can withstand minor weather conditions. Camera comes with 33' cable with a double-sided Female Air-Craft Grade Connection.
Features
- Designed for Indoor Use: Perfect for monitoring indoor environments, enhancing security effortlessly.
- 92° Viewing Angle: Wide-angle lens allows you to cover a larger area without the need for multiple cameras.
- 9 Infra-Red Lights: Exceptional night vision capabilities let you monitor in complete darkness, ensuring 24/7 security.
- 420 TV Lines: Provides high-quality image resolution, giving you clear and detailed footage.
- Compact Design: Sleek and unobtrusive, allowing for discreet installation in various locations.
RVS Systems RVS-901-02 Detailed Specifications
| Viewing Angle | 92° |
| Pixel Count | 250,000 Pixels |
| Lens Size | 2.1 mm |
| Infra-Red Lights | 9 Infra-Red Illuminators |
| Image Quality | 420 TV Lines |
| Cable Length | 33' |
| Connection Type | Double-Sided Female Air-Craft Grade Connection |
| Weather Resistance | IP65 Rating |
SKU  | RVS-901-02 |
|---|---|
| Features | Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Gamma Correction | r=0.45 to 1.0 |
| Image Device | 1/3" Sharp Color CCD |
| IR Distance | 9.14m/30ft |
| Minimum Scene Illumination | 1 Lux (IR Off), 0 Lux (IR On) |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -20°C - 70°C |

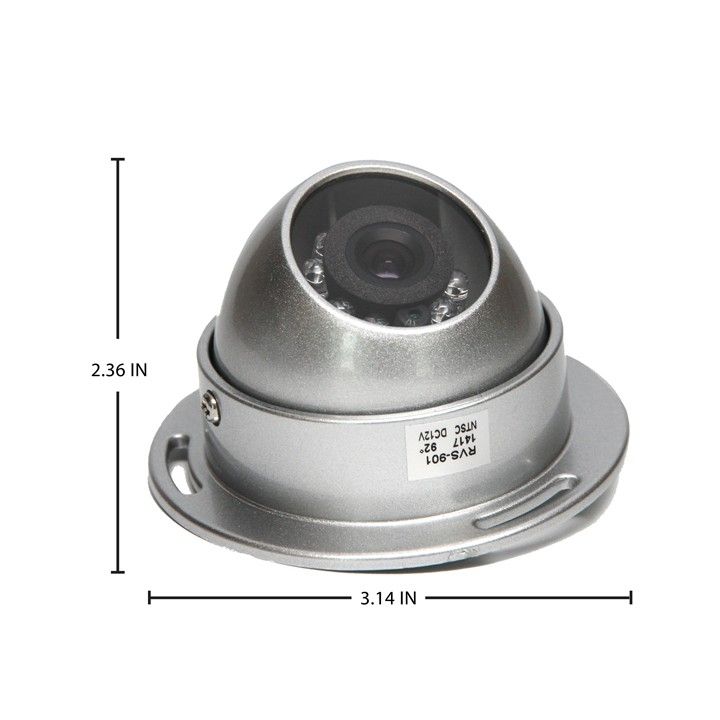

| Dimensions (W x H) | 2.36" (H) x 3.14" (L) x 2" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Angle of View | 92° |
| IR LEDs | 9 |
| Auto Gain Control | Yes |
