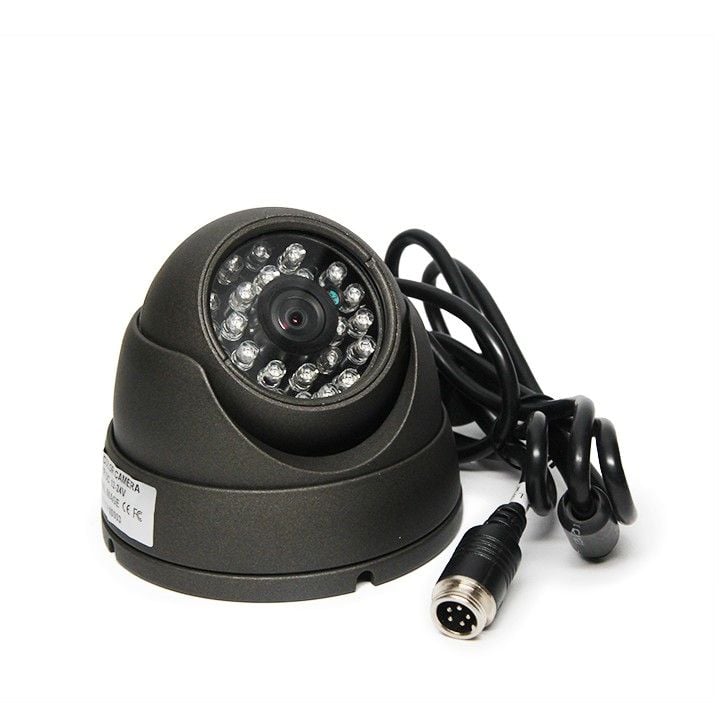

RVS Systems RVS-9000-AHD-01 AHD 120° Dome Camera, 66' Cable
SKU
RVS-9000-AHD-01
Model No
RVS-9000-AHD-01
$165.35
Product Highlights
- Full AHD Camera - Only compatible with Mobile DVR's
- Perfect for indoor/outdoor and surveillance purposes
- 24 infra-red lights - ultimate night vision
- 120° viewing angle
- Casing allows camera to swivel 360°
Speak to an expert
RVS Systems RVS-9000-AHD-01 Camera Features
The RVS-9000-AHD-01 from RVS Systems is a dome camera was designed solely for our MobileMule series (RVS-5500, RVS-5550, RVS-5530-Hybrid, RVS-8150) and has an AHD resolution of 1280 (H) × 720 (V). It boasts 120° viewing angle and 24 infra-red illuminators which enables you to see in total darkness. The casing allows camera to swivel 360°. Camera comes with 66' cable with a double-sided Female Air-Craft Grade Connection.
Features
- Full AHD Camera: Only compatible with Mobile DVR's, ensuring optimal compatibility and performance.
- Indoor/Outdoor Versatility: Perfect for various surveillance purposes, providing flexibility in installation.
- Ultimate Night Vision: 24 infra-red lights ensure visibility in total darkness for enhanced security.
- Wide Viewing Angle: 120° viewing angle allows for broader coverage of monitored areas.
- 360° Swiveling Casing: Flexible camera positioning helps to achieve ideal monitoring angles.
RVS Systems RVS-9000-AHD-01 Detailed Specifications
| Camera Type | Dome Camera |
| Resolution | 1280 (H) × 720 (V) |
| Viewing Angle | 120° |
| Night Vision | 24 infra-red illuminators |
| Cable Length | 66 feet |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
| Compatible Models | RVS-5500, RVS-5550, RVS-5530-Hybrid, RVS-8150 |
SKU  | RVS-9000-AHD-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 1280 X 720 |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Minimum Scene Illumination | 0.01 LUX |
| Operating Temperature | -20℃ ~+70℃ |
| Dimensions (W x H) | 3.39" (H) x 3.66" (L) x 3" (D) |
| S/N Ratio | >41.2db |
| Video Output | 1.0Vp-p75 |
| Weatherproof | IP67 |
| Angle of View | 120° |
| IR LEDs | 24 |
| Auto Gain Control | Yes |
