RVS Systems RVS-818-AHD AHD Dual Lens DVR Camera, 2 x 33' Cable
SKU
RVS-818-AHD
Model No
RVS-818-AHD
$227.05
Product Highlights
- Analog HD (Analog High Definition) Quality
- Dual Lens - Equipped with front & rear cameras
- Compatible with MobileMule™Mobile DVR Series
- 6 infra-red lights - 16 ft of night vision
- 130° (Front) / 92° (Rear) wide viewing angle
Speak to an expert

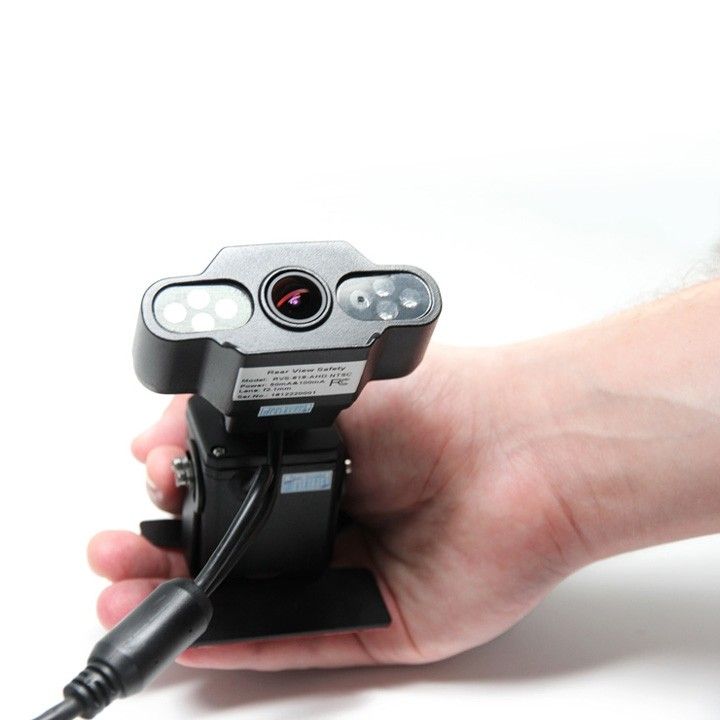

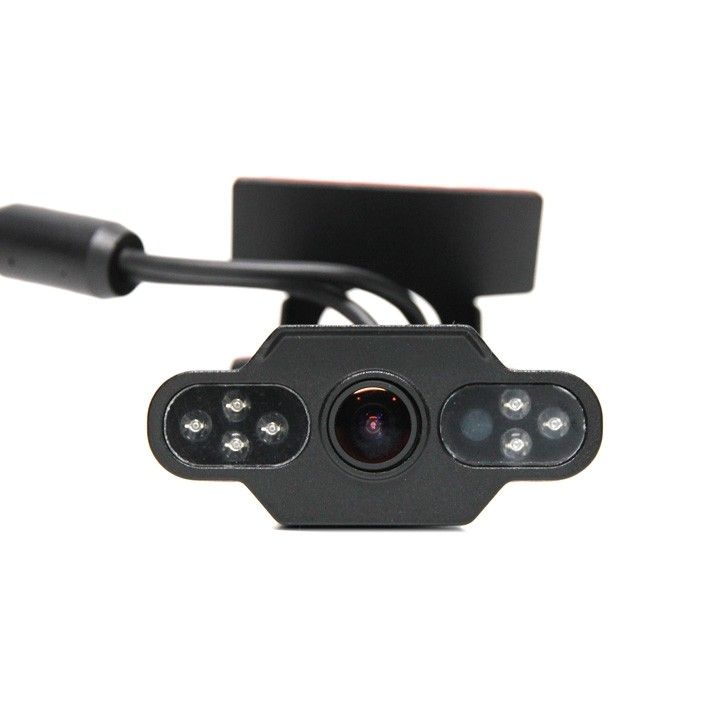

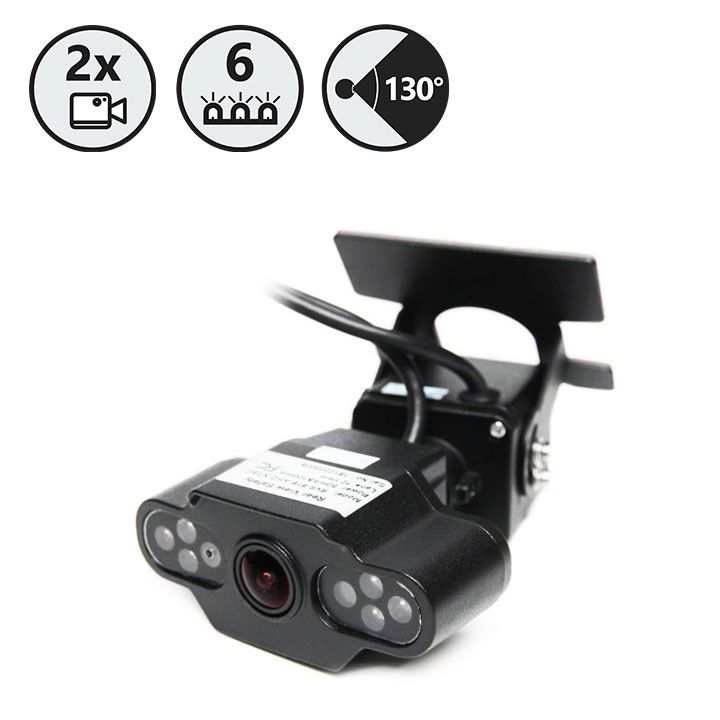

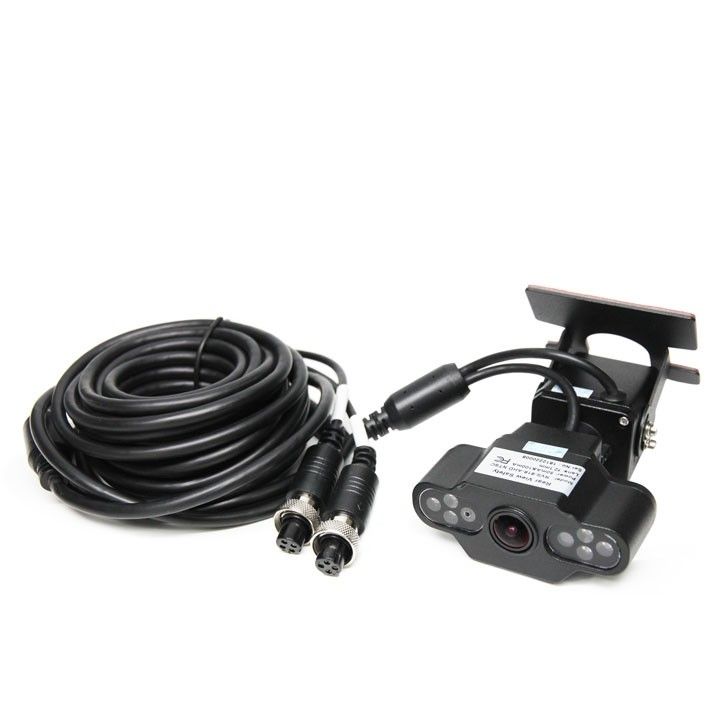

The RVS-818-AHD from RVS Systems is an AHD Dual Lens DVR Camera, 2 x 33' Cable. The camera is compatible with our MobileMule™ Mobile DVR's: (RVS-6000, RVS-6200, RVS-6300, RVS-6400, RVS-8117). Rear Camera is equipped with 6 infra-red illuminators and a wide 130° viewing angle. Front Camera features a wide 92° viewing angle. The RVS-818-AHD also features a simple installation with the included 3M mounting sticker. This two camera system uses two MobileMule™ video inputs.

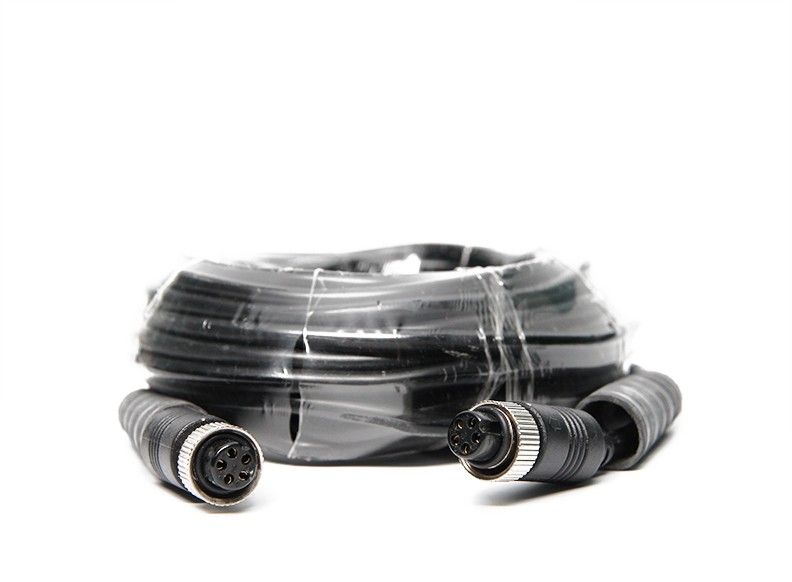

The RVS-826N is a 33' Camera Cable with a double sided Female Air-Craft Grade Connection.
RVS Systems RVS-818-AHD Camera Features
- Analog HD Quality: Delivers high-definition video clarity for detailed surveillance.
- Dual Lens: Equipped with front & rear cameras for comprehensive coverage.
- Compatibility: Seamlessly integrates with MobileMule™ Mobile DVR Series for easy setup.
- Infra-red Lights: Features 6 infra-red lights for 16 ft of night vision, ensuring visibility in low light conditions.
- Wide Viewing Angles: Offers 130° (Front) and 92° (Rear) viewing angles for maximum field of view.
RVS Systems RVS-818-AHD Detailed Specifications
| Type | AHD Dual Lens DVR Camera |
| Camera Cables | 2 x 33' with double sided Female Air-Craft Grade Connection |
| Rear Camera Features | 6 infra-red illuminators, 130° viewing angle |
| Front Camera Features | 92° viewing angle |
| Installation | Simple installation with included 3M mounting sticker |
| Compatibility | MobileMule™ Mobile DVR's (RVS-6000, RVS-6200, RVS-6300, RVS-6400, RVS-8117) |
SKU  | RVS-818-AHD |
|---|---|
| Features | Audio, Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 600 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Image Device | Next chip 2431H + SONY IMX225 |
| IR Distance | 4m/16ft |
| Operating Humidity | <95% |
| Operating Temperature | -20°C ~ +50°C |
| Dimensions (W x H) | 5" (L) x 1.1" (H) x 3.9" (D) |
| S/N Ratio | More than 72dB (AGC off) |
| Angle of View | Front camera: 130° / rear camera: 92° |
| IR LEDs | 6 |
| Audio | Yes |
| Auto Gain Control | Yes |
