RVS Systems RVS-818-AHD-NC AHD Dual Lens DVR Camera, 2 x 33' Cable, 2.1mm, 2.8mm lens
SKU
RVS-818-AHD-NC
Model No
RVS-818-AHD-NC
$254.39
Product Highlights
- Analog HD (Analog High Definition) Quality
- Dual Lens - Equipped with front & rear cameras
- Compatible with MobileMule™Mobile DVR Series
- 6 infra-red lights - 16 ft of night vision
- 130° (Front) / 92° (Rear) wide viewing angle
Speak to an expert
RVS Systems RVS-818-AHD-NC Camera Features

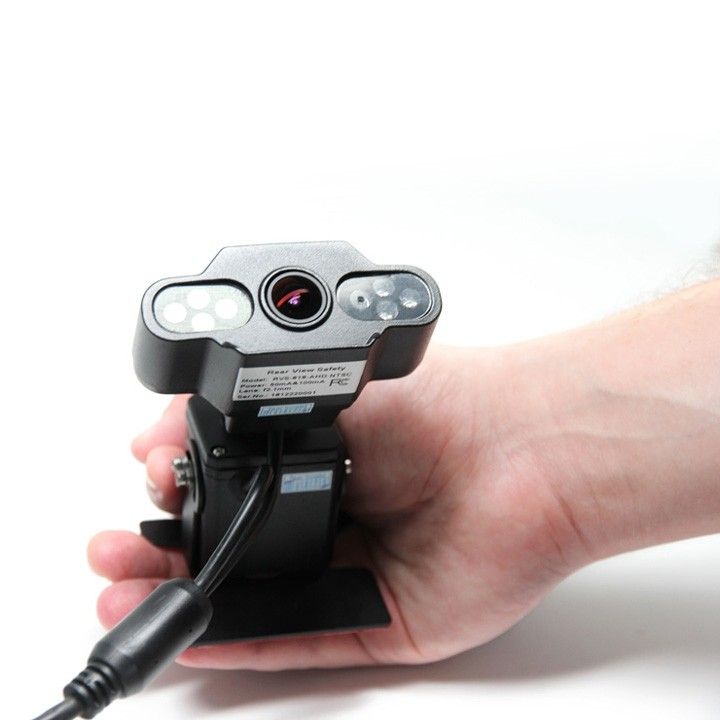

This AHD (Analog High-Definition) dual lens DVR camera is compatible with all our MobileMule™ Mobile DVR's. Rear Camera is equipped with 6 infra-red illuminators and a wide 130° viewing angle. Front Camera features a wide 92° viewing angle. The RVS-818-AHD also features a simple installation with the included 3M mounting sticker. This two camera system uses two MobileMule™ video inputs.

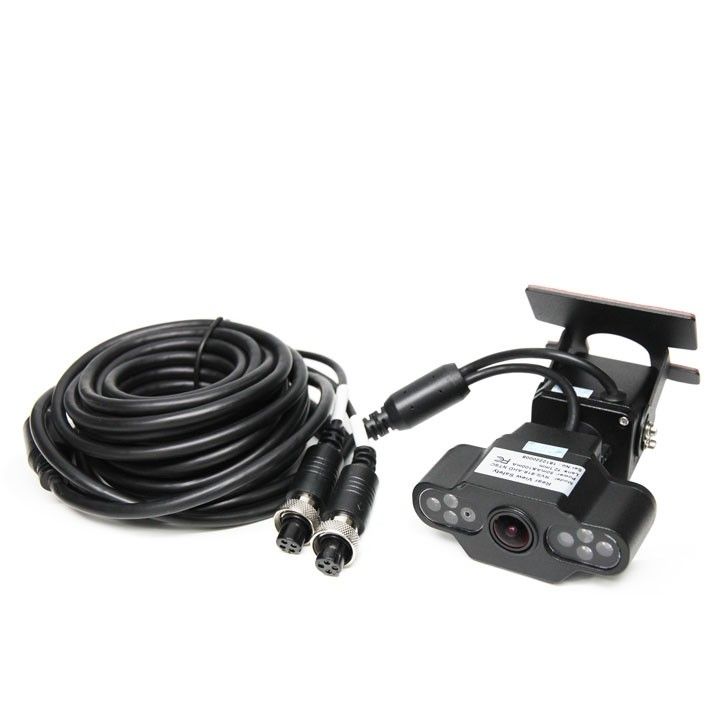

The RVS-826N is a 33' camera cable with a double sided Female Air-Craft Grade Connection.
Features
- Analog HD (Analog High Definition) Quality: Provides superior image clarity and detail compared to standard cameras.
- Dual Lens: Equipped with front & rear cameras - Offers comprehensive coverage for enhanced safety and security.
- Compatible with MobileMuleâ„¢ Mobile DVR Series: Seamless integration ensures easy setup and use with existing systems.
- 6 infra-red lights: 16 ft of night vision - Allows for clear visibility in low light conditions.
- 130° (Front) / 92° (Rear) wide viewing angle: Maximizes field of view to reduce blind spots for safer driving.
RVS Systems RVS-818-AHD-NC Detailed Specifications
| Camera Type | AHD Dual Lens DVR Camera |
| Lens Size | 2.1mm (Front), 2.8mm (Rear) |
| Cable Length | 2 x 33' (Included) |
| Viewing Angle | 130° (Front), 92° (Rear) |
| Night Vision | 16 ft with 6 Infra-red Lights |
| Mounting | 3M Mounting Sticker (Included) |
| Compatibility | MobileMuleâ„¢ Mobile DVR Series |
SKU  | RVS-818-AHD-NC |
|---|---|
| Features | Audio, Auto Gain Control |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Lens Type | Fixed |
| Lens Size | 2.1mm, 2.8mm |
| Infrared Distance | 0~60 Feet |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | Next chip 2431H + SONY IMX225 |
| IR Distance | 5m/16.40ft |
| Minimum Scene Illumination | 0.01Lux @ (F1.2, AGC on) |
| Operating Temperature | -20°C ~ +50°C |
| Dimensions (W x H) | 5" (L) x 1.1" (H) x 3.9" (D) |
| S/N Ratio | More than 72dB (AGC off) |
| Signal System | PAL/NTSC |
| Angle of View | Front camera: 130° / rear camera: 92° |
| IR LEDs | 6 |
| Audio | Yes |
| Auto Gain Control | Yes |
