RVS Systems RVS-816-04 420 TVL Mercedes Sprinter Third Brake Light Backup Camera, 66' Cable
SKU
RVS-816-04
Model No
RVS-816-04
$222.59
Product Highlights
- Designed for Mercedes Sprinter Vans
- Adjustable camera fits into brake light housing
- 6 infra-red lights - Excellent picture at night
- 170° ultra wide viewing angle
- Completely waterproof camera - IP68
Speak to an expert

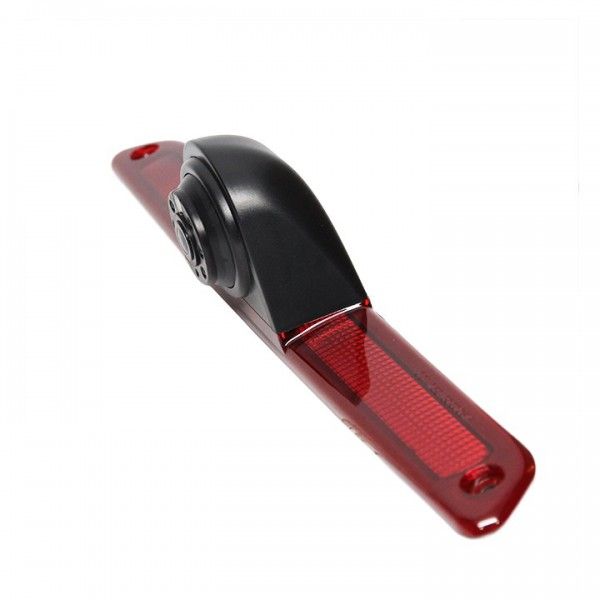

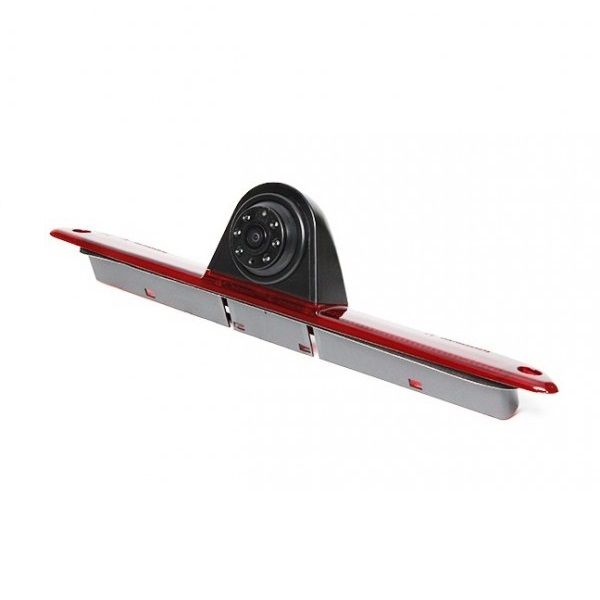

The RVS-816-04 from RVS Systems is a 420 TVL Mercedes Sprinter third brake light camera that features a 170° angle backup camera using a CMD lens with IR night vision. This product comes equipped with all the necessary wires, connectors, and mounts. The third brake light is completely weatherproof with an IP68 rating, strong and reliable, and has a shock resistance with a 10G vibration rating (the highest in the industry). The camera includes a 66' camera cable with a double-sided female air-craft grade connection.
RVS Systems RVS-816-04 Camera Features
- Designed for Mercedes Sprinter Vans: Perfect fit and compatibility with your vehicle for easy installation.
- Adjustable camera fits into brake light housing: Ensures a discreet look while providing optimal camera positioning.
- 6 infra-red lights: Excellent picture quality at night, enhancing visibility when reversing.
- 170° ultra wide viewing angle: Expansive field of view reduces blind spots for increased safety.
- Completely waterproof camera - IP68: Durable design for all weather conditions, ensuring reliable operation.
Detailed Specifications for RVS Systems RVS-816-04
| Camera Resolution | 420 TVL |
| Viewing Angle | 170° |
| Infra-red Lights | 6 |
| Weatherproof Rating | IP68 |
| Shock Resistance | 10G vibration rating |
| Length of Camera Cable | 66 feet |
| Connection Type | Double-sided Female Aircraft Grade Connection |
SKU  | RVS-816-04 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -30°C ~ +70°C |
| Dimensions (W x H) | 2.52" (H) x 13.39" (L) x 1" (D) |
| S/N Ratio | More than 48dB |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| IR LEDs | 6 |
| Auto Gain Control | Yes |
