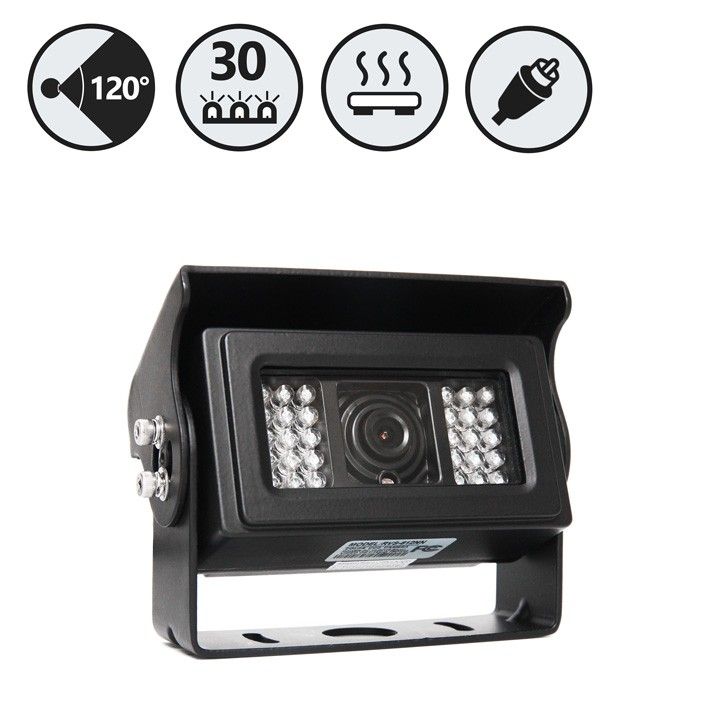

RVS Systems RVS-812N-06 700 TVL 120° Heated Backup Camera, 66' Cable
SKU
RVS-812N-06
Model No
RVS-812N-06
$589.56
Product Highlights
- Built-in Heater - Can Withstand All Weather Conditions
- 120° Ultra Wide Viewing Angle
- 30 Infra-Red Lights - Ultimate Night Vision
- IP69 Rating - Completely Waterproof
- Built-In High Gain Mic
Speak to an expert

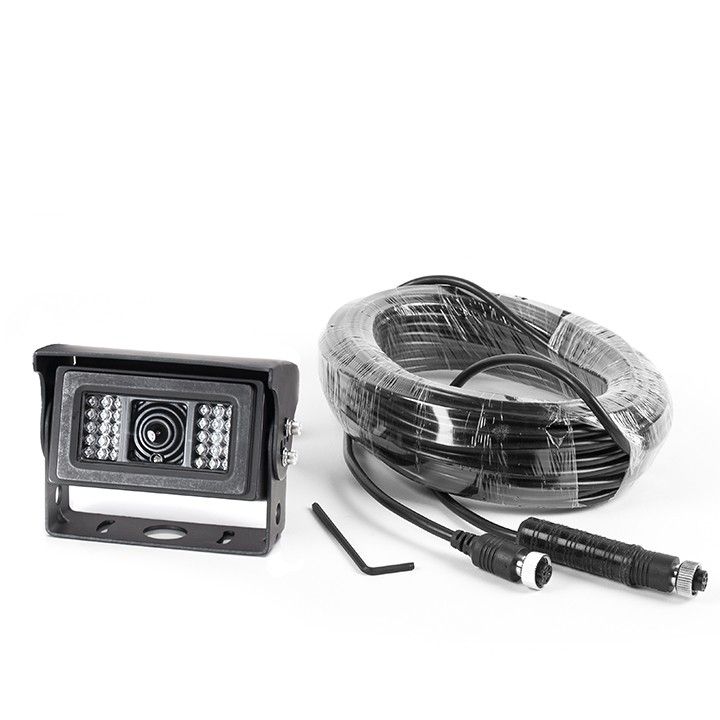

The RVS-812N-06 from RVS Systems is a 120° angle backup camera which is the clearest and greatest camera available on the market today. The RVS-812N backup camera has a built-in heater which keeps the camera warm in the coldest of climates. The camera boasts a 250,000 pixel 2.1 mm lens with 30 infra-red illuminators which enable you to see in total darkness. The die-cast casing of the camera has an IP69K rating which can withstand all weather conditions. The backup camera has a built-in microphone which enables you to hear as well as see what is behind you. The camera comes with 66' cable with a double-sided Female Air-Craft Grade Connection.
RVS Systems RVS-812N-06 Camera Features
- Built-in Heater: Can withstand all weather conditions, ensuring reliable performance in freezing temperatures.
- 120° Ultra Wide Viewing Angle: Provides exceptional visibility, minimizing blind spots when reversing.
- 30 Infra-Red Lights: Enables ultimate night vision, allowing you to see clearly in total darkness.
- IP69 Rating: Completely waterproof, making it durable and reliable in all weather conditions.
- Built-In High Gain Mic: Allows you to hear what is behind you, enhancing safety while reversing.
Detailed Specifications for RVS Systems RVS-812N-06
| Resolution | 700 TVL |
| Viewing Angle | 120° |
| Lens Type | 2.1 mm |
| Pixel Count | 250,000 pixels |
| Infra-Red Illuminators | 30 |
| Waterproof Rating | IP69K |
| Microphone | Yes |
| Cable Length | 66' |
| Cable Connection Type | Double-sided Female Air-Craft Grade |
SKU  | RVS-812N-06 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Gamma Correction | 0.45 |
| Image Device | 1/3'' SONY Super HAD CCD |
| Image Pixels Total | PAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V) |
| Image Pixels-Effective | PAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V) |
| Minimum Scene Illumination | 0 Lux (With IR) |
| Operating Humidity | RH 95% MAX. |
| Operating Temperature | -45°C~70°C |
| Dimensions (W x H) | 2.59" (H) x 4.02" (L) x 2.20" (D) |
| Power Consumption | Max. 300 mA |
| S/N Ratio | Better Than 48 dB |
| Signal System | PAL / NTSC |
| Video Output | Composite Signal (1.0 Vp-p, 75 Ω) |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | On |
| IR LEDs | 30 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
