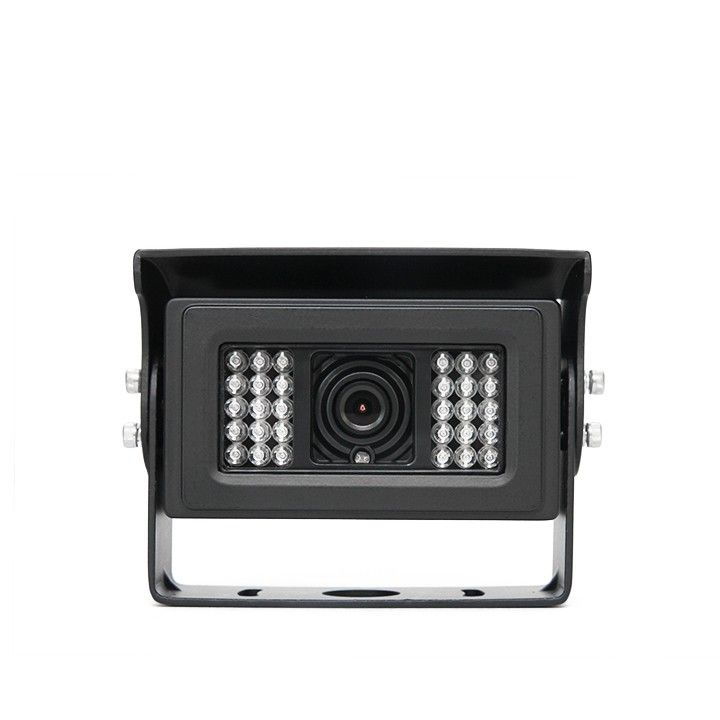

RVS Systems RVS-812N-05 700 TVL 120° Heated Backup Camera, 33' Cable
SKU
RVS-812N-05
Model No
RVS-812N-05
$209.87
Product Highlights
- Built-in Heater - Can Withstand All Weather Conditions
- 120° Ultra Wide Viewing Angle
- 30 Infra-Red Lights - Ultimate Night Vision
- IP69 Rating - Completely Waterproof
- Built-In High Gain Mic
Speak to an expert
The RVS-812N-05 from RVS Systems is a state-of-the-art backup camera designed for optimal visibility and safety. Featuring a 120° angle view and advanced night vision capabilities, this camera ensures that you can see clearly in any conditions. Its built-in heater allows it to perform even in the coldest weather, while the IP69K rating guarantees it is fully waterproof. With additional features like a high-quality microphone and an extended 33' cable, the RVS-812N-05 is perfect for all your backup needs.
RVS Systems RVS-812N-05 Camera Features
- Built-in Heater: Keeps the camera warm in cold climates, ensuring functionality in all weather conditions.
- 120° Ultra Wide Viewing Angle: Provides a larger field of view to help avoid obstacles and enhance safety when reversing.
- 30 Infra-Red Lights: Offers superior night vision capabilities, allowing you to see in total darkness.
- IP69 Rating: Ensures the camera is completely waterproof and can withstand harsh environments.
- Built-In High Gain Mic: Allows you to hear audio from behind your vehicle, adding an additional layer of safety.
RVS Systems RVS-812N-05 Detailed Camera Specifications
| Resolution | 700 TVL |
| Viewing Angle | 120° |
| Lens Size | 2.1 mm |
| Infra-Red Illuminators | 30 |
| Heater | Yes |
| Cable Length | 33' |
| IP Rating | IP69K |
| Microphone | Yes |
| Connection Type | Double-sided Female Air-Craft Grade Connection |
SKU  | RVS-812N-05 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Gamma Correction | 0.45 |
| Image Device | 1/3'' SONY Super HAD CCD |
| Image Pixels Total | PAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V) |
| Image Pixels-Effective | PAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V) |
| Minimum Scene Illumination | 0 Lux (With IR) |
| Operating Humidity | RH 95% MAX. |
| Operating Temperature | -45°C~70°C |
| Dimensions (W x H) | 2.59" (H) x 4.02" (L) x 2.20" (D) |
| Power Consumption | Max. 300 mA |
| S/N Ratio | Better Than 48 dB |
| Signal System | PAL / NTSC |
| Video Output | Composite Signal (1.0 Vp-p, 75 Ω) |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | On |
| IR LEDs | 30 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
