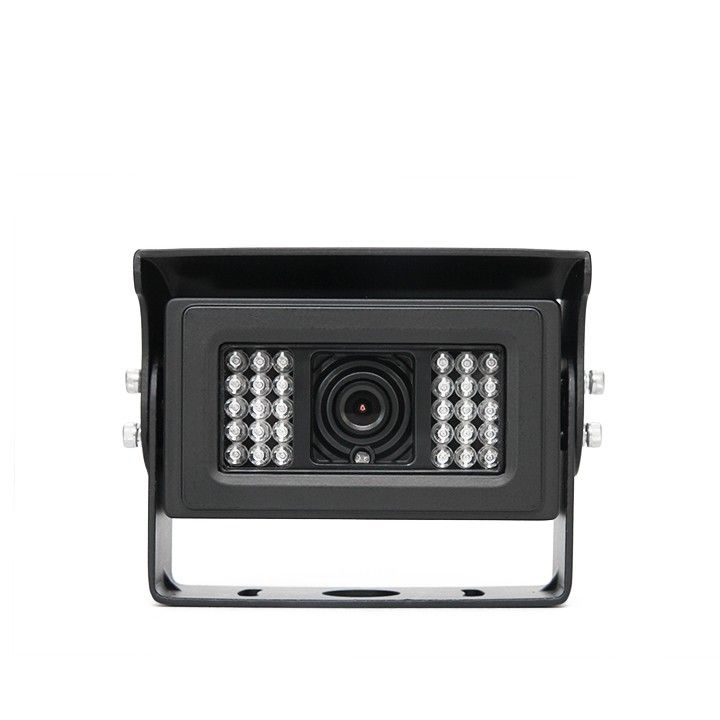

RVS Systems RVS-812N-03 700 TVL 120° Heated Backup Camera, 16' Cable, RCA Adapter

SKU
RVS-812N-03
Model No
RVS-812N-03
$209.87
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Built-in Heater - Can Withstand All Weather Conditions
  • 120° Ultra Wide Viewing Angle
  • 30 Infra-Red Lights - Ultimate Night Vision
  • IP69 Rating - Completely Waterproof
  • Built-In High Gain Mic

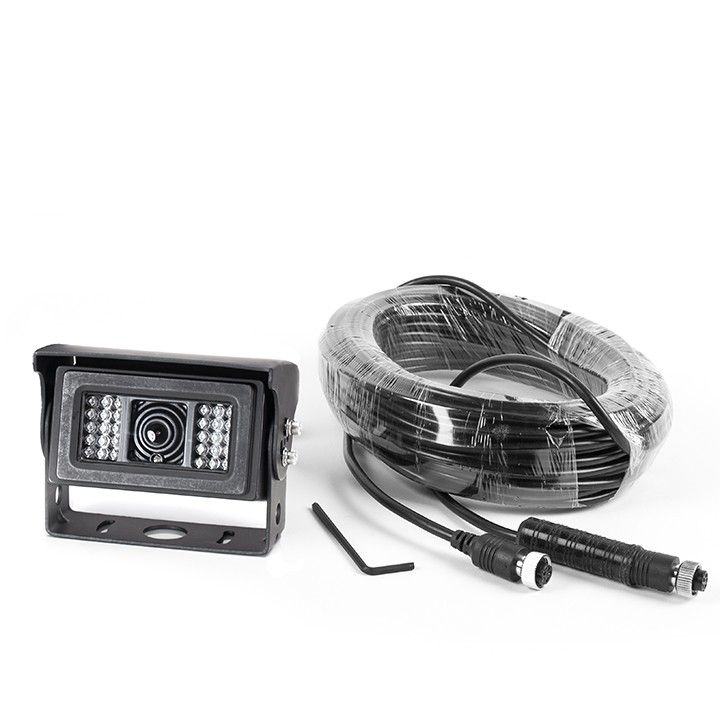

The RVS-812N-03 from RVS Systems is a 120° angle backup camera which is the clearest and greatest camera available on the market today. The RVS-812N backup camera has a built-in heater which keeps the camera warm in the coldest of climates. The camera boasts a 250,000 pixel 2.1 mm lens with 30 infra-red illuminators which enable you to see in total darkness. The die-cast casing of the camera has an IP69K rating which can withstand all weather conditions. The backup camera has a built-in microphone which enables you to hear as well as see what is behind you. The camera comes with 16' cable with double-sided female aircraft grade connectors, 5 Pin Male to Male RCA with Male Power. The purpose of this adapter is to connect our camera to any monitor with an RCA input and Cable to connect power to RCA adapters.

RVS Systems RVS-812N-03 Camera Features

  • Built-in Heater: Can withstand all weather conditions allowing for reliable performance in extreme temperatures.
  • 120° Ultra Wide Viewing Angle: Provides enhanced visibility, minimizing blind spots for safer reversing.
  • 30 Infra-Red Lights: Delivers ultimate night vision capabilities, ensuring visibility in total darkness.
  • IP69 Rating: Completely waterproof design protects against dust and high-pressure water events, making it perfect for outdoor use.
  • Built-In High Gain Mic: Enables audio detection behind the vehicle, adding an extra layer of safety.

RVS Systems RVS-812N-03 Detailed Specifications

Camera TypeBackup Camera
Resolution700 TVL
Viewing Angle120°
Image Sensor250,000 Pixels 2.1 mm Lens
IR Illuminators30 Infra-Red Lights
HeaterBuilt-In
Waterproof RatingIP69K
MicrophoneBuilt-In High Gain Mic
Cable Length16 feet
Connector Type5 Pin Male to Male RCA with Male Power
SKU  RVS-812N-03
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Electronic Shutter    1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
Gamma Correction  0.45
Image Device    1/3'' SONY Super HAD CCD
Image Pixels TotalPAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V)
Image Pixels-EffectivePAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V)
Minimum Scene Illumination  0 Lux (With IR)
Operating Humidity    RH 95% MAX.
Operating Temperature    -45°C~70°C

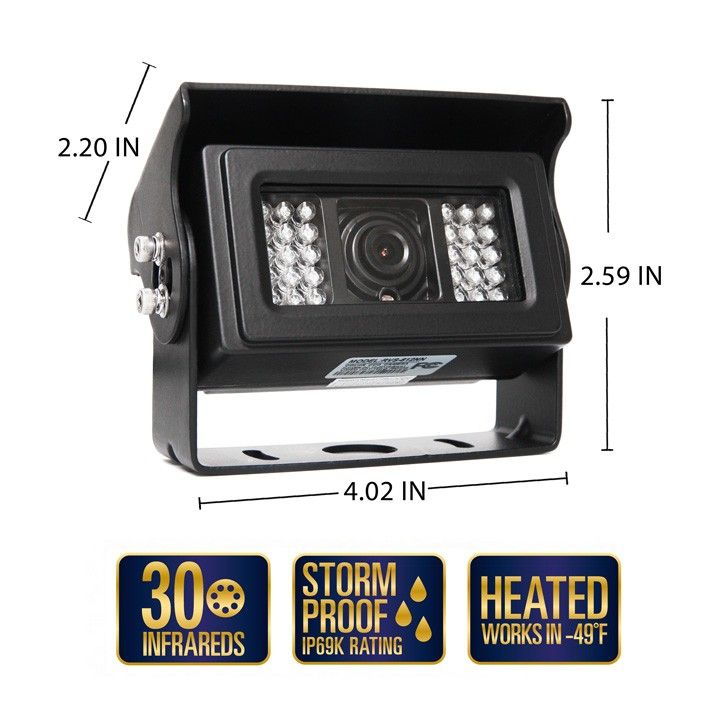

Dimensions (W x H)  2.59" (H) x 4.02" (L) x 2.20" (D)
Power Consumption  Max. 300 mA
S/N Ratio  Better Than 48 dB
Signal System    PAL / NTSC
Video Output    Composite Signal (1.0 Vp-p, 75 Ω)
Weatherproof    IP69
Synchronization  Internal
Angle of View    120°
Backlight Compensation    Auto
Automatic White Balance    Auto
Auto Gain Control    On
IR LEDs  30
Back Light Compensation    Yes
Automatic White Balance    Yes
Auto Gain Control    Yes
