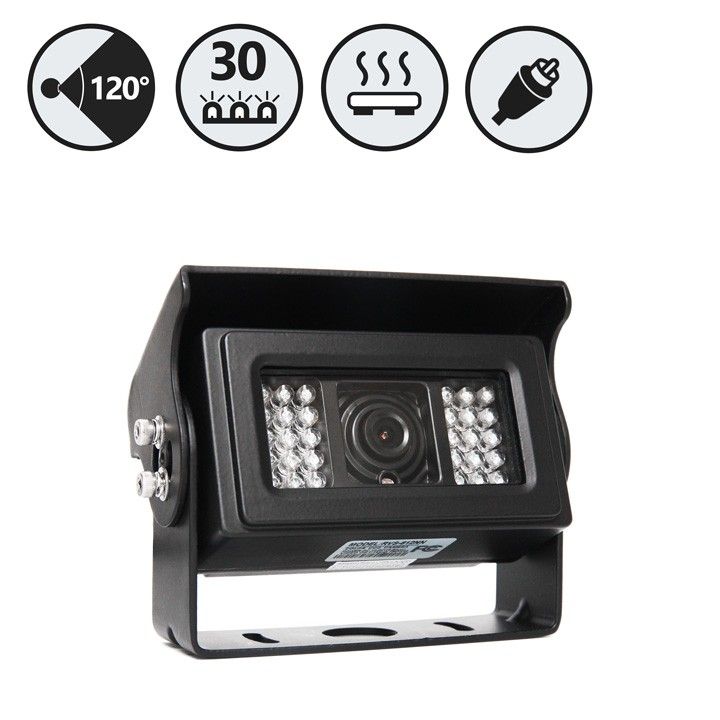

RVS Systems RVS-812N-02 700 TVL 120° Heated Backup Camera, 33' Cable, RCA Adapter
- Built-in Heater - Can Withstand All Weather Conditions
- 120° Ultra Wide Viewing Angle
- 30 Infra-Red Lights - Ultimate Night Vision
- IP69 Rating - Completely Waterproof
- Built-In High Gain Mic
The RVS-812N-02 from RVS Systems is a 120° angle backup camera which is the clearest and greatest camera available on the market today. The RVS-812N backup camera has a built-in heater which keeps the camera warm in the coldest of climates. The camera boasts a 250,000 pixel 2.1 mm lens with 30 infra-red illuminators which enable you to see in total darkness. The die-cast casing of the camera has an IP69K rating which can withstand all weather conditions. The backup camera has a built-in microphone which enables you to hear as well as see what is behind you. The camera comes with 33' cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power. The purpose of this adapter is to connect our camera to any monitor with an RCA input and Cable to connect power to RCA adapters.
RVS Systems RVS-812N-02 Camera Features
Features
- Built-in Heater: Can withstand all weather conditions, ensuring continuous performance in cold climates.
- 120° Ultra Wide Viewing Angle: Allows for enhanced visibility, improving safety while reversing.
- 30 Infra-Red Lights: Provides ultimate night vision capabilities, so you can see clearly even in total darkness.
- IP69 Rating: Completely waterproof, making it durable and reliable in all weather scenarios.
- Built-In High Gain Mic: Captures sound behind you, providing additional safety as you reverse.
RVS Systems RVS-812N-02 Detailed Specifications
| Camera Resolution | 700 TVL |
| Lens Size | 2.1 mm |
| Viewing Angle | 120° |
| Infra-Red Lights | 30 |
| Weatherproof Rating | IP69K |
| Cable Length | 33' |
| Connection Type | 5 Pin Male to Male RCA with Male Power |
SKU  | RVS-812N-02 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Gamma Correction | 0.45 |
| Image Device | 1/3'' SONY Super HAD CCD |
| Image Pixels Total | PAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V) |
| Image Pixels-Effective | PAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V) |
| Minimum Scene Illumination | 0 Lux (With IR) |
| Operating Humidity | RH 95% MAX. |
| Operating Temperature | -45°C~70°C |
| Dimensions (W x H) | 2.59" (H) x 4.02" (L) x 2.20" (D) |
| Power Consumption | Max. 300 mA |
| S/N Ratio | Better Than 48 dB |
| Signal System | PAL / NTSC |
| Video Output | Composite Signal (1.0 Vp-p, 75 Ω) |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 120° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | On |
| IR LEDs | 30 |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
