RVS Systems RVS-812613-NM Backup Camera System with Heated Camera
- Heated Backup Camera for Use in Ultra Cold Climates
- 30 Infra-Red Lights for 50ft of Night Vision
- Camera is Completely Waterproof with an IP69K Rating
- 7" LED Digital Panel Color Display with Three Camera Inputs

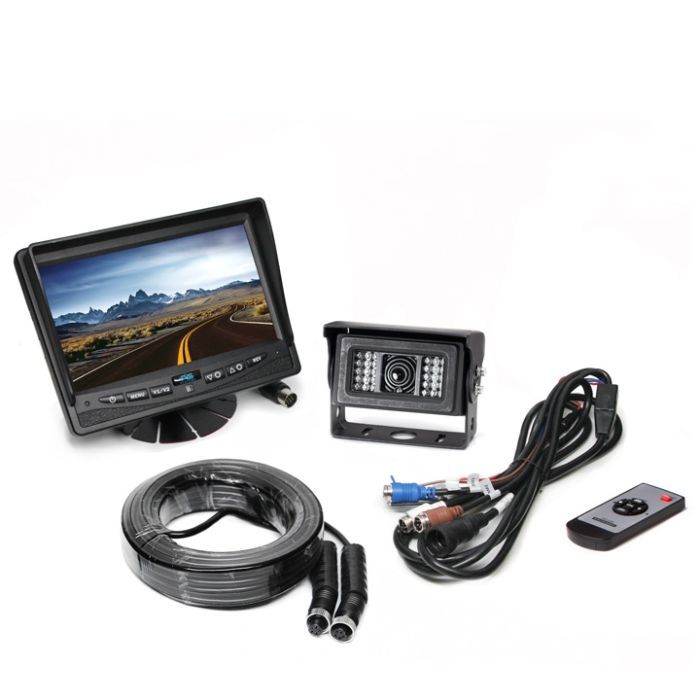

This heated rear view camera system is complete with a crystal clear 7" LED Digital Panel color monitor with mirror image capability and distance grid lines and one (1) rear view back up camera with 120° viewing angle and built in heater to withstand the coldest weather. The backup camera's night vision boasts a 50 foot range with 30 built in Infra-reds so you can see in total darkness.
With built-in system memory, this innovative system automatically saves previous option settings even after it's turned off. This system has two viewing options. The camera view can be triggered when the vehicle is put into reverse, or remain on continuously. The system includes all the wires, connectors and mounts you will need. The backup camera is completely weatherproof, with an IP69K rating to withstand power washing, strong and reliable, shock resistant and has a 10G vibration rating. It comes with a full year warranty.
RVS Systems RVS-812613-NM Camera Features
Features
- Heated Backup Camera: Designed for use in ultra cold climates to ensure visibility and performance even in freezing temperatures.
- 30 Infra-Red Lights: Provides 50ft of night vision, allowing for clear viewing in total darkness.
- Waterproof Design: IP69K rating ensures the camera can withstand power washing and harsh weather conditions.
- 7" LED Digital Panel Display: Features a high-resolution color display with mirror image capability and three camera inputs for additional versatility.
Detailed Specifications for RVS Systems RVS-812613-NM
| Display Size | 7 inches |
| Camera Viewing Angle | 120° |
| Night Vision Range | 50 feet |
| Infra-Red Lights | 30 |
| Waterproof Rating | IP69K |
| Vibration Rating | 10G |
| Warranty | 1 year |
SKU  | RVS-812613-NM |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Infrared Distance | 0~60 Feet |
| Electronic Shutter | 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Image Device | 1/3'' SONY® Super HAD CCD |
| Image Pixels Total | PAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V) |
| Image Pixels-Effective | PAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V) |
| Minimum Scene Illumination | 0 Lux (With IR) |
| Operating Temperature | –45°C~70°C, RH 95% MAX. |

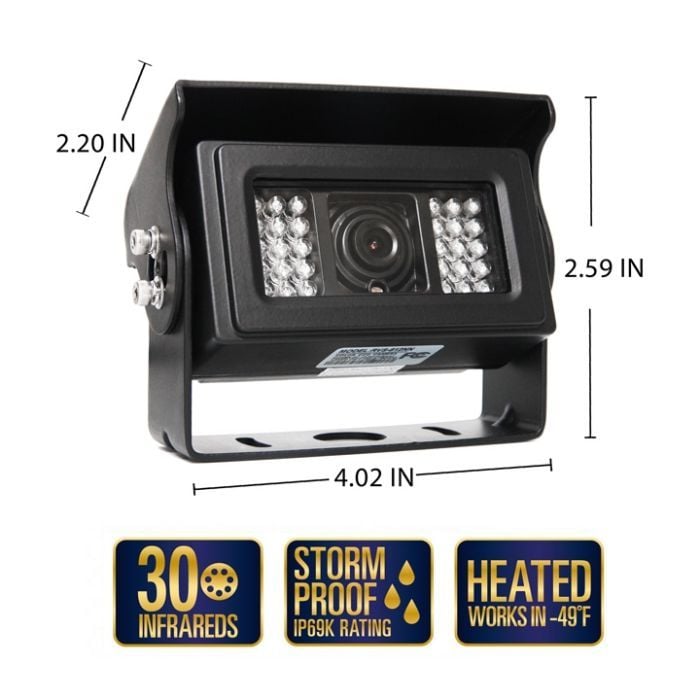

| Dimensions (W x H) | (with bracket) 2.59" (H) x 4.02" (L) x 2.20" (D), 5.25" (H) x 7" (L) x 1" (D) |
| Power Consumption | Max. 300 mA |
| S/N Ratio | Better Than 48 dB |
| Scanning System | Internal |
| Video Output | Composite Signal (1.0 Vp-p, 75 Ω) |
| Weatherproof | IP69K |
| Synchronization | Internal |
| Angle of View | U:50° D:60° L/R:70° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| IR LEDs | Seven (7) |
| Audio | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
RVS-812613-NM-Specsheet RVS-812613-NM-Instruction-Manual
