RVS Systems RVS-812613-NM-24 120° 2 x Heated Backup Cameras, 9" QV Display, 2 x 33' Cables

SKU
RVS-812613-NM-24
Model No
RVS-812613-NM-24
$828.67
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Heated Backup Camera for Use in Ultra-Cold Climates
  • 30 Infra-Red Lights for More Than 50ft of Night Vision
  • Camera is Completely Waterproof with an IP69K Rating
  • 7" LED digital Panel Color Display

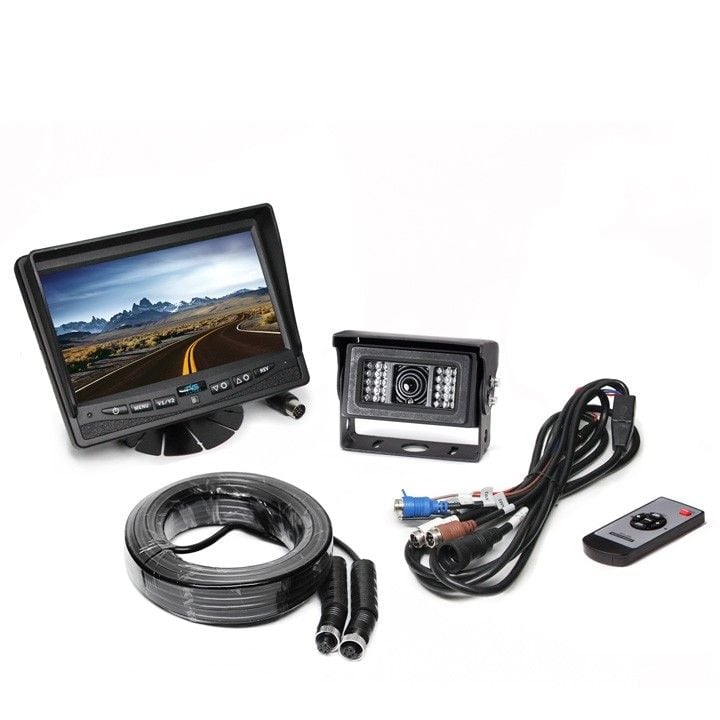

The RVS-812613-NM-24 from RVS Systems is a heated rearview camera system complete with a crystal clear 7" LED digital panel color monitor with mirror image capability and distance grid lines. It features a backup camera with a 120° viewing angle and a built-in heater to withstand cold weather. Enjoy enhanced visibility at night with its 50-foot range and 30 built-in Infra-reds for total darkness. With built-in system memory, this innovative system saves previous settings, and can trigger camera views automatically or remain continuously on. All necessary wiring and mounts are included, and the weatherproof camera has an IP69K rating, making it both reliable and durable.

RVS Systems RVS-812613-NM-24 Camera Features

  • Heated Backup Camera: Functions well in ultra-cold climates, ensuring clear visibility without freezing issues.
  • High Night Vision Capability: 30 Infra-Red lights provide over 50 feet of visibility in total darkness, enhancing safety during nighttime operations.
  • Waterproof Design: With an IP69K rating, the camera can endure severe weather and even power washing, maintaining reliability in all conditions.

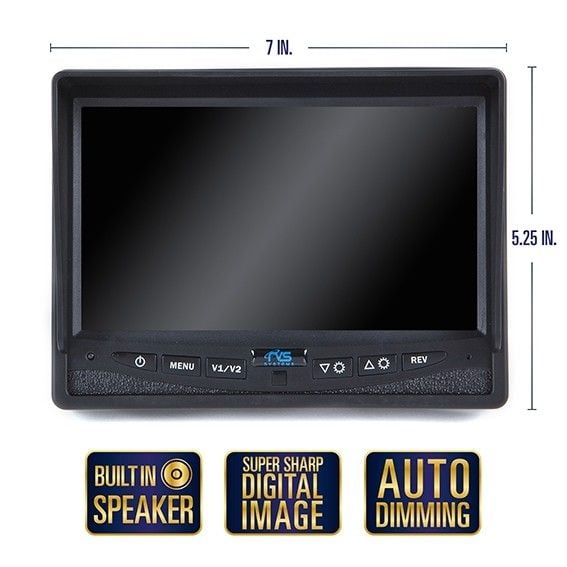

  • Large LED Display: The 7" LED digital panel ensures clear visuals, making it easy to monitor surroundings while reversing.

RVS Systems RVS-812613-NM-24 Detailed Specifications

FeatureDetails
ModelRVS-812613-NM-24
Cameras2 x Heated Backup Cameras
Viewing Angle120°
Display Size7" LED Digital Panel
Night Vision Range50 feet
Infra-Red Lights30
Waterproof RatingIP69K

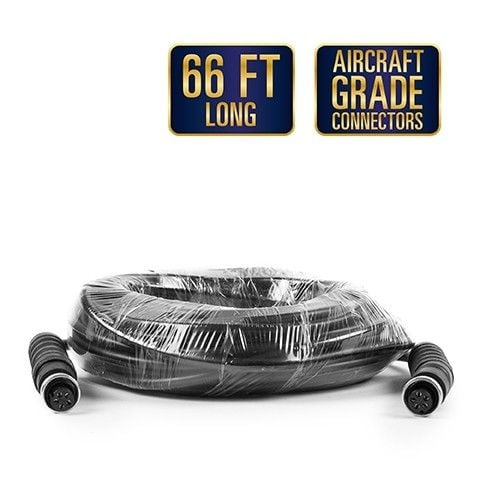

Cable Length2 x 33' Cables
Memory FeatureAutomatically saves previous settings

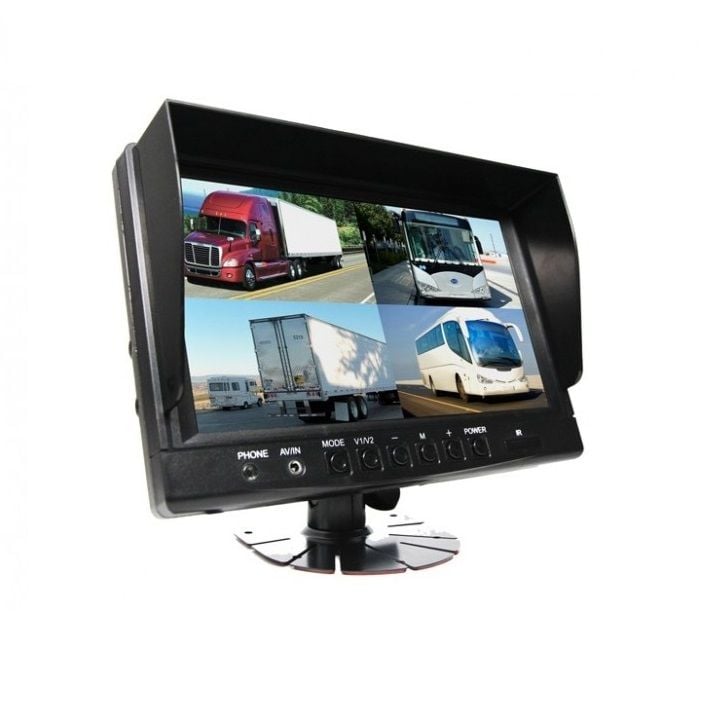

Monitor CapabilitiesConnects and views up to four cameras
MicrophoneBuilt-in to hear surroundings
ShapeDie-cast casing
Vibration Rating10G
SKU  RVS-812613-NM-24
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Mirror, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Electronic Shutter    1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
Gamma Correction  0.45
Image Device    1/3'' SONY Super HAD CCD
Image Pixels TotalPAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V)
Image Pixels-EffectivePAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V)
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (With IR)
Operating Humidity    RH 95% MAX.
Operating Temperature    -45°C~70°C

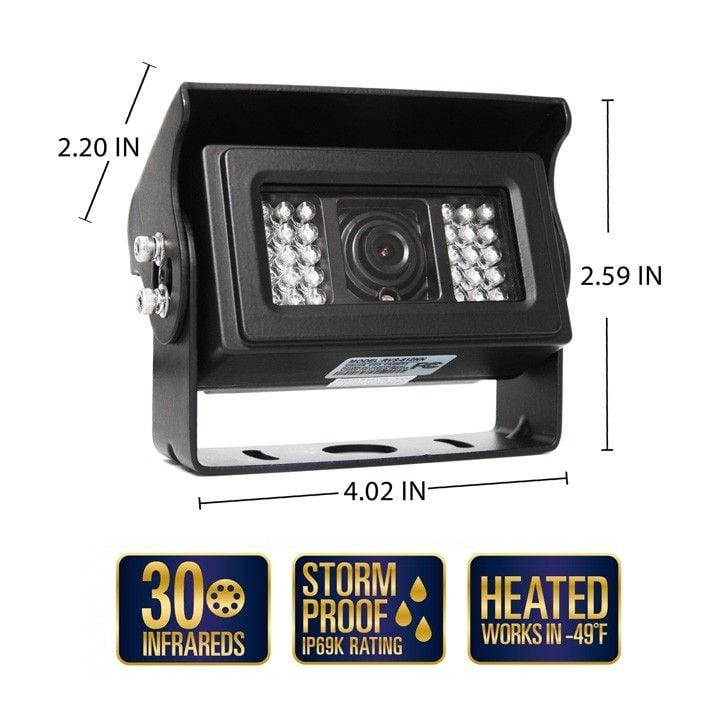

Dimensions (W x H)  2.59" (H) x 4.02" (L) x 2.20" (D)
Power Consumption  Max. 300 mA
S/N Ratio  Better Than 48 dB
Signal System    PAL / NTSC
Video Output    Composite Signal (1.0 Vp-p, 75 Ω)
Weatherproof    IP69
Synchronization  Internal
Angle of View    120°
Backlight Compensation    Auto
Automatic White Balance    Auto
Auto Gain Control    On
IR LEDs  30
Back Light Compensation    Yes
Automatic White Balance    Yes
Mirror    Yes
Auto Gain Control    Yes
