RVS Systems RVS-812613-NM-22 120° Heated Backup Camera, 9" QV Display, 33' Cable

SKU
RVS-812613-NM-22
Model No
RVS-812613-NM-22
$612.49
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Heated Backup Camera for Use in Ultra-Cold Climates
  • 30 Infra-Red Lights for More Than 50ft of Night Vision
  • Camera is Completely Waterproof with an IP69K Rating
  • 7" LED digital Panel Color Display

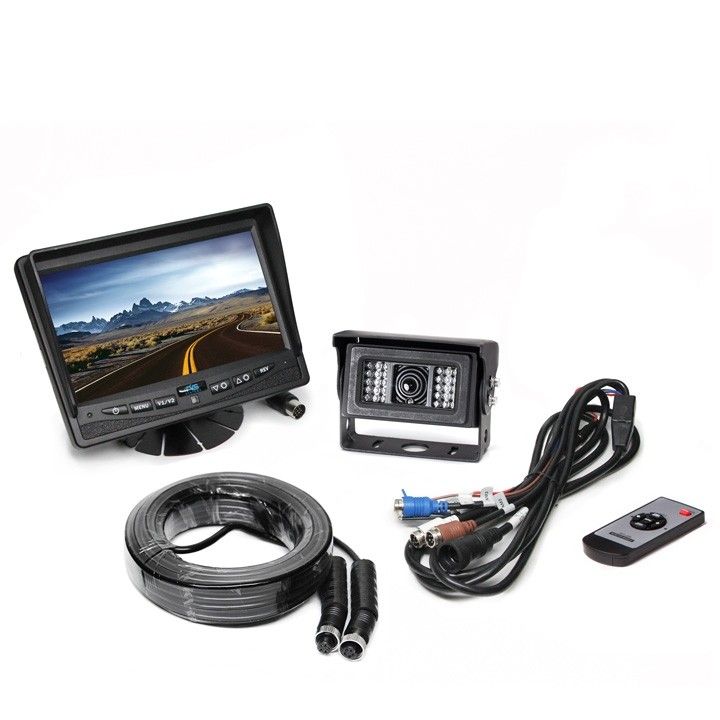

The RVS-812613-NM-22 from RVS Systems is a heated rearview camera system complete with a crystal clear 9" QV display. It features a 120° viewing angle, built-in heater for cold weather durability, and night vision functionality with 30 infrared lights that provide visibility up to 50 feet in complete darkness. Ideal for vehicles operating in harsh climates, this system ensures safety and convenience while reversing or viewing the rear area. It includes all necessary wiring and connectors, making installation straightforward and hassle-free.

RVS Systems RVS-812613-NM-22 Camera Features

  • Heated Backup Camera: Ensures visibility and performance in ultra-cold climates, preventing lens icing and enhancing safety.
  • Infra-Red Night Vision: 30 built-in infrared lights provide visibility beyond 50 feet in complete darkness, ensuring all-around safety.
  • Waterproof Design: IP69K rating ensures the camera withstands harsh weather conditions and can endure power washing.

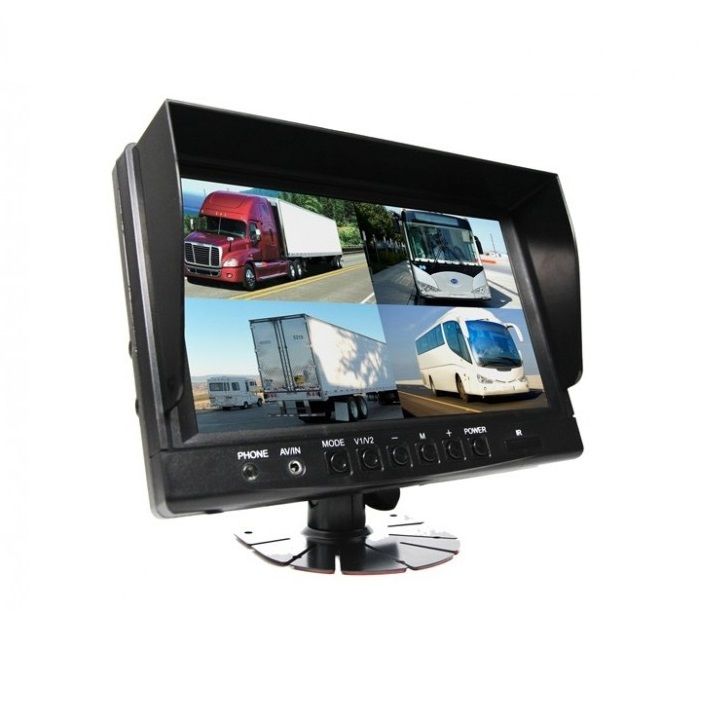

  • 9" QV Display: High-resolution 9" TFT LCD monitor allows for a clear view of multiple camera feeds and includes built-in speakers and distance grid lines.
  • System Memory: Built-in memory retains previous settings, offering a user-friendly experience each time the system is powered on.
  • Dual Viewing Options: The camera can be activated either when the vehicle is in reverse or continuously, providing flexibility based on user preference.

Detailed Specifications for RVS Systems RVS-812613-NM-22

Product TypeHeated Rearview Camera System
Viewing Angle120°
Night VisionUp to 50 ft with 30 Infra-Red Lights
Display Size9" QV TFT LCD Color Monitor
Weatherproof RatingIP69K
Vibration Rating10G
Built-in MicrophoneYes
Cable Length33' with double sided female Aircraft grade connection
SKU  RVS-812613-NM-22
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Mirror, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    700 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Electronic Shutter    1/50-1/100,000 Sec. / 1/60-1/100,000 Sec.
Gamma Correction  0.45
Image Device    1/3'' SONY Super HAD CCD
Image Pixels TotalPAL: 537 (H) × 597 (V) / NTSC: 537 (H) × 505 (V)
Image Pixels-EffectivePAL: 500 (H) × 582 (V) / NTSC: 510 (H) × 492 (V)
IR Distance  15.24m/50ft
Minimum Scene Illumination  0 Lux (With IR)
Operating Humidity    RH 95% MAX.
Operating Temperature    -45°C~70°C
Dimensions (W x H)  2.59" (H) x 4.02" (L) x 2.20" (D)
Power Consumption  Max. 300 mA
S/N Ratio  Better Than 48 dB
Signal System    PAL / NTSC
Video Output    Composite Signal (1.0 Vp-p, 75 Ω)
Weatherproof    IP69
Synchronization  Internal
Angle of View    120°
Backlight Compensation    Auto
Automatic White Balance    Auto
Auto Gain Control    On
IR LEDs  30
Back Light Compensation    Yes
Automatic White Balance    Yes
Mirror    Yes
Auto Gain Control    Yes
