RVS Systems RVS-77F 420 TVL Analog Outdoor Wired Forklift Automobile Camera
SKU
RVS-77F
Model No
RVS-656
$127.19
Product Highlights
- Designed for forklifts
- Simple installation
- IP69K - completely waterproof
- Precise 45° Viewing Angle
- 420 TV Lines - high image quality
Speak to an expert

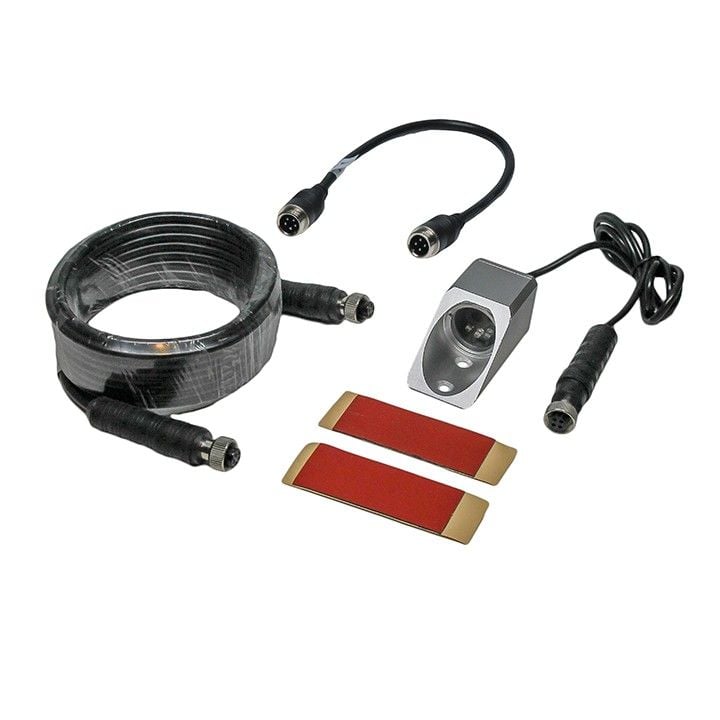

This commercial grade RVS Systems RVS-77F 420 TVL Analog Outdoor Wired Forklift Automobile Camera was designed with forklifts in mind. The camera includes a 16" weatherproof cable (Model # RVS-881) with aircraft grade connectors. The forklift camera is completely weatherproof with an IP69K rating, strong and reliable.
RVS Systems RVS-77F Camera Features
- Designed for forklifts: Tailored specifically for heavy-duty use, ensuring durability and longevity in tough environments.
- Simple installation: The user-friendly design makes setup fast and hassle-free, allowing for quick deployment.
- IP69K - completely waterproof: Provides maximum protection against dust and water, making it suitable for all weather conditions.
- Precise 45° Viewing Angle: Offers the perfect field of view for operational safety and awareness when maneuvering forklifts.
- 420 TV Lines - high image quality: Ensures clear and detailed images, enhancing visibility and safety.
RVS Systems RVS-77F Detailed Specifications
| Camera Type | 420 TVL Analog |
| Waterproof Rating | IP69K |
| Cable Length | 16" |
| Viewing Angle | 45° |
| Image Resolution | High quality (420 TV Lines) |
| Connectors | Aircraft grade |
| Intended Use | Forklift and outdoor automobile applications |
SKU  | RVS-77F |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/4" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Electronic Shutter | Auto:1/60 (NTSC) / 1/50 (PAL) ~ 1/100,000 Seconds |
| Gamma Correction | 0.45 |
| Image Device | 1/4" CMOS ASX340CS |
| Image Pixels-Effective | 640 x 480 Pixels |
| Minimum Scene Illumination | 0 Lux |
| Operating Temperature | -20°C ~ 70°C, RH 95% MAX |
| S/N Ratio | Better than 46dB |
| Scanning Horizontal | 15.625 kHz / 15.734 kHz |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 50 Hz / 60 Hz |
| Signal System | PAL / NTSC |
| Video Output | 1.0Vp-p, 75Ω |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 45° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Auto Gain Control | Yes |
