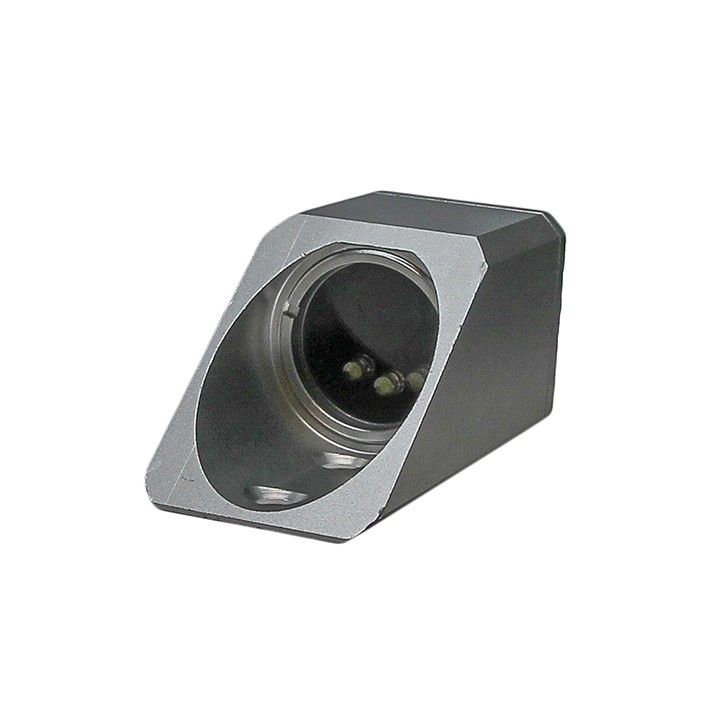

RVS Systems RVS-77F-NC 420 TVL Wired Forklift Camera, No Cable
SKU
RVS-77F-NC
Model No
RVS-77F-NC
$127.19
Product Highlights
- Designed for forklifts
- Simple installation
- IP69K - completely waterproof
- Precise 45° Viewing Angle
- 420 TV Lines - high image quality
Speak to an expert
The RVS-77F-NC from RVS Systems is a commercial grade camera designed specifically for forklifts. This forklift camera is completely weatherproof with an IP69K rating, making it strong and reliable in various environments.
RVS Systems RVS-77F-NC Camera Features
- Designed for forklifts: Tailored specifications ensure optimal performance in warehouse and industrial applications.
- Simple installation: Easy to set up, minimizing downtime and labor costs during installation.
- IP69K - completely waterproof: Built to withstand harsh weather conditions, providing durability and reliability.
- Precise 45° Viewing Angle: Allows for a better visual range, assisting in safe maneuvering of forklifts.
- 420 TV Lines - high image quality: Delivers clear and detailed images for effective monitoring and safety.
Detailed Specifications for RVS Systems RVS-77F-NC
| Feature | Details |
| Camera Type | Wired Forklift Camera |
| Image Resolution | 420 TV Lines |
| Viewing Angle | 45° |
| Weather Resistance | IP69K Rating |
| Installation Type | Simple Direct Installation |
SKU  | RVS-77F-NC |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 420 TVL |
| Sensor Option | 1/4" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | Auto: 1/60 (NTSC) / 1/50 (PAL) ~ 1/100,000 Seconds |
| Gamma Correction | 0.45 |
| Image Device | 1/4" CMOS ASX340CS |
| Image Pixels-Effective | 640 x 480 Pixels |
| Minimum Scene Illumination | 0 Lux |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | -20°C ~ 70°C |
| Dimensions (W x H) | 1.15" (H) x 1.25" (L) x 3" (D) |
| S/N Ratio | Better than 46dB |
| Scanning Horizontal | 15.625 kHz / 15.734 kHz |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 50 Hz / 60 Hz |
| Signal System | PAL / NTSC |
| Video Output | 1.0Vp-p, 75Ω |
| Weatherproof | IP69 |
| Synchronization | Internal |
| Angle of View | 45° |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
