RVS Systems RVS-778718N 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
SKU
RVS-778718N
Model No
RVS-609620
$254.99
Product Highlights
- 4.3" Replacement Mirror Monitor
- Distance Grid Lines for Backing Up Reference
- Camera Easily Mounts to License Plate
- 170° Ultra Wide Viewing Angle
- Completely Waterproof Camera - IP68
Speak to an expert

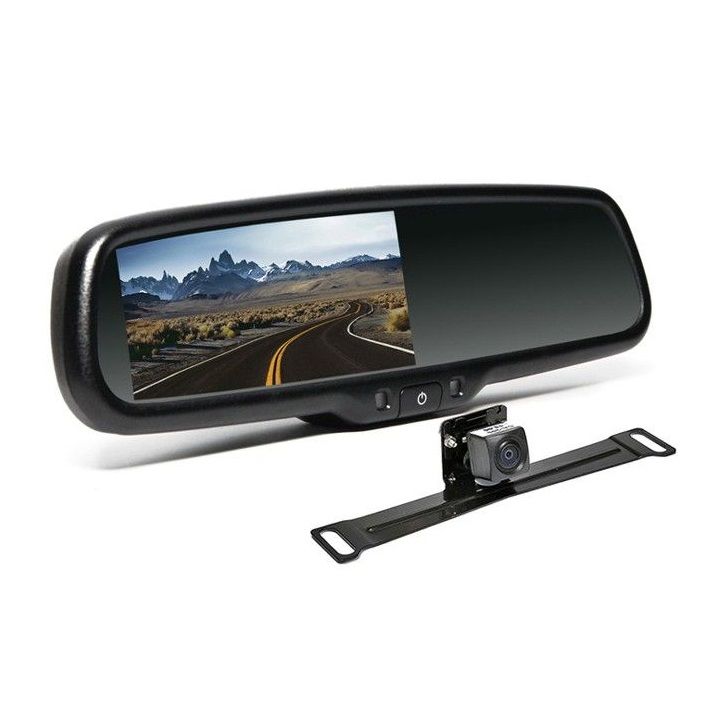

The RVS Systems RVS-778718N 480 TVL Analog Outdoor Backup Camera System is an ideal solution for drivers seeking enhanced visibility while reversing. This system features a 4.3" TFT-LCD mirror monitor that seamlessly replaces the vehicle's existing rearview mirror, allowing for a direct view of what's behind. With night vision capabilities, a 170° viewing angle, and weatherproof design, this backup camera ensures safety and reliability in all driving conditions.
RVS Systems RVS-778718N Camera Features
- 4.3" Replacement Mirror Monitor: Provides a clear and integrated viewing experience without cluttering the dashboard.
- Distance Grid Lines: Offers visual guidance for safe and accurate reversing, enhancing driver confidence.
- License Plate Mounting: Easy installation that fits virtually any vehicle, making it convenient and versatile.
- 170° Ultra Wide Viewing Angle: Ensures maximum coverage of the area behind the vehicle, reducing blind spots significantly.
- IP68 Waterproof Rating: Guarantees functionality in all weather conditions, prolonging the camera’s lifespan.
RVS Systems RVS-778718N Detailed Specifications
| Monitor Size | 4.3 inches |
| Camera Resolution | 480 TVL |
| Lens Type | 2.1mm |
| Viewing Angle | 170° |
| Night Vision | Yes |
| Weatherproof Rating | IP68 |
| Vibration Rating | 10G |
| Power Harness | Includes with dual camera inputs |
SKU  | RVS-778718N |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

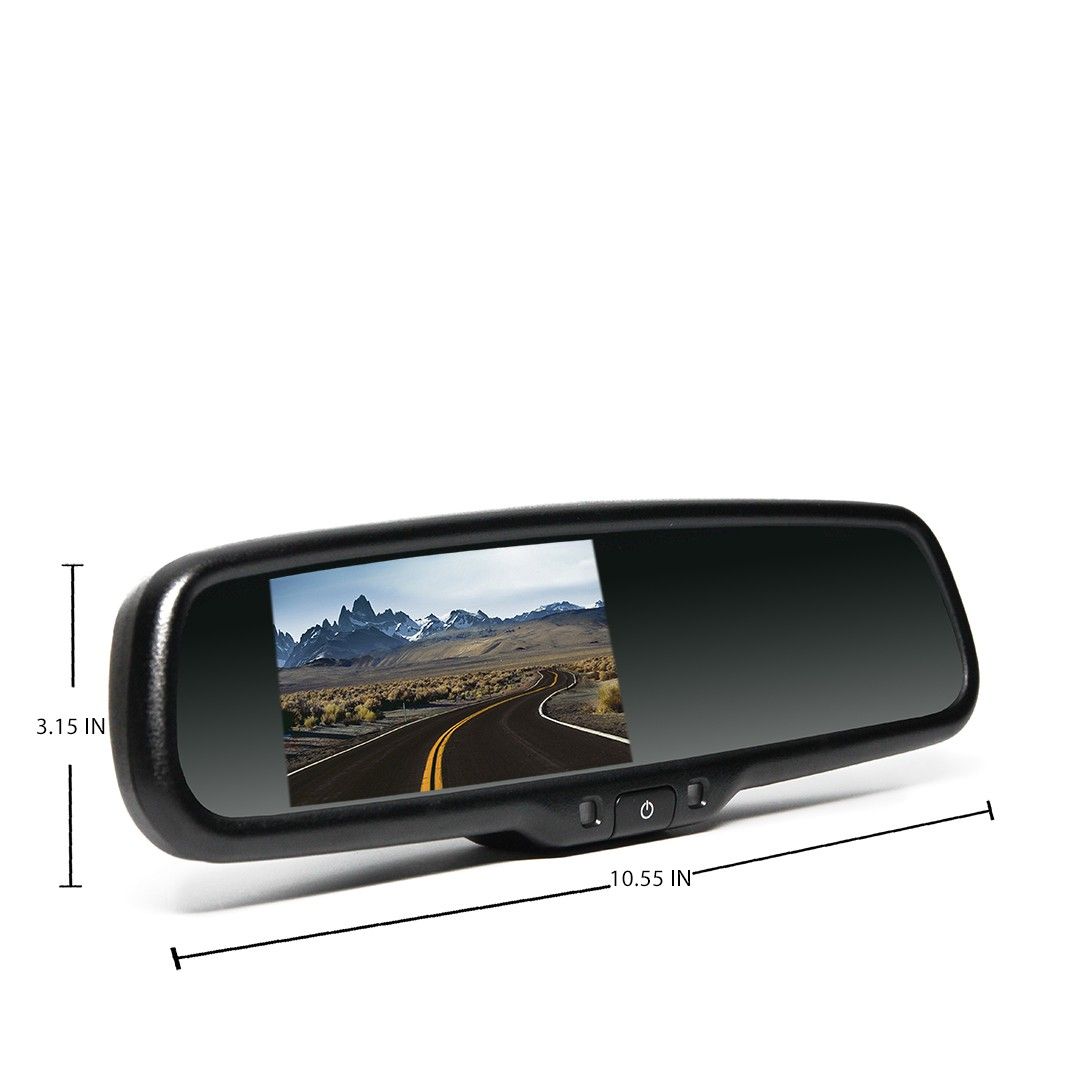

| Dimensions (W x H) | Camera: 1" (H) x 8" (L) x 1" (D), Mirror Monitor: 3.15" (H) x 10.55" (L) x 1" (D) |
| Power Consumption | 8W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
