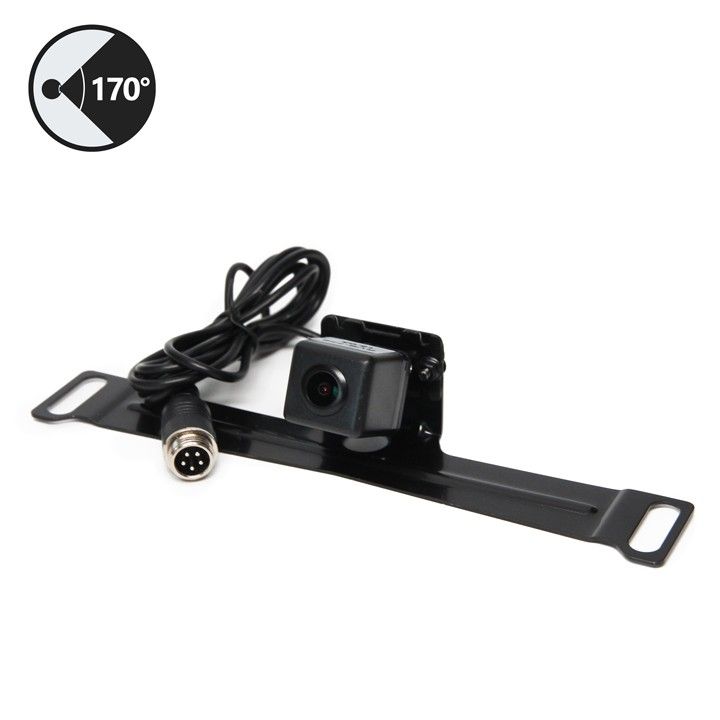

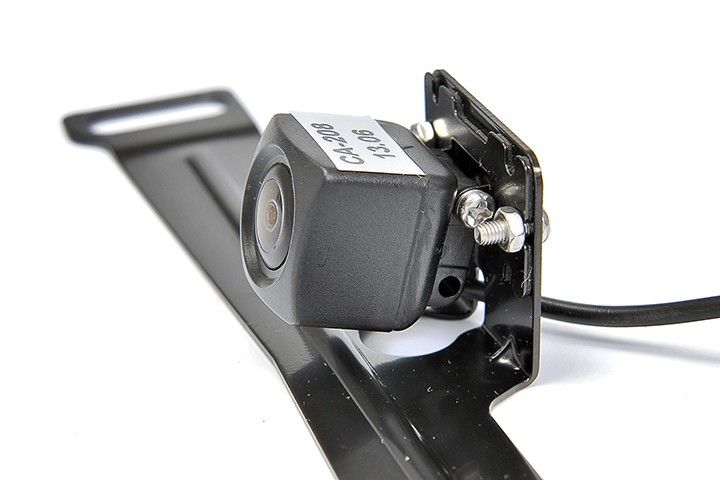

RVS Systems RVS-778-02 480 TVL License Plate Mounted Backup Camera, 33' Cable, RCA Adapter
SKU
RVS-778-02
Model No
RVS-778-02
$127.19
Product Highlights
- Easily mounts to license plate
- 170° all-encompassing angle
- Excellent night vision
- Completely waterproof - IP68 rating
- Heavy duty metal

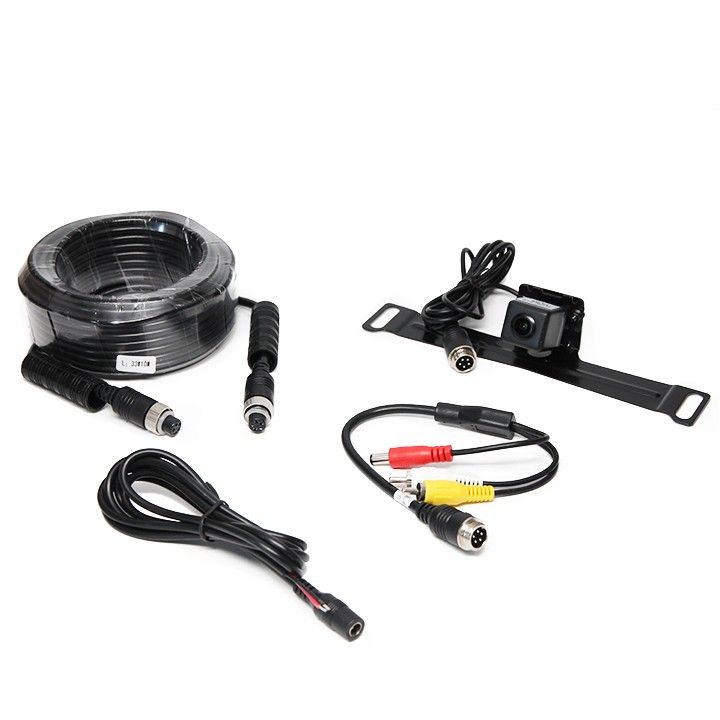

The RVS-778-02 from RVS Systems is a license plate mounted camera that can fit any vehicle. This slick compact design makes the camera virtually invisible. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision. The camera can plug into any monitor or GPS system which allows an A/V input. Connect the power to the reverse circuit of the vehicle. The camera comes with 33' cable with a double-sided Female Air-Craft Grade Connection, 5 Pin Male to Male RCA with Male Power. The purpose of this adapter is to connect our camera to any monitor with an RCA input and Cable to connect power to RCA adapters.
Features
- Easily mounts to license plate
- 170° all-encompassing angle
- Excellent night vision
- Completely waterproof - IP68 rating
- Heavy duty metal
SKU  |
RVS-778-02 |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer |
RVS Systems |
Camera Signal  |
Analog |
| Resolution |
480 TVL |
| Sensor Option |
1/4" Image Sensor |
| Infrared Distance |
Non Infrared |
| Durability |
Weather Resistant |
| Voltage |
12-24vDC |
| Minimum Scene Illumination |
0.5 Lux |
| Operating Humidity |
RH 95% Max |
| Operating Temperature |
-30°C ~ +70°C |
| Dimensions (W x H) |
(with brackets) 1" (H) x 8" (L) x 1" (D) |
| S/N Ratio |
48dB |
| Video Output |
1Vp.p 75ohm |
| Weatherproof |
IP68 |
| Angle of View |
170° |
| Automatic White Balance |
Auto |
| Auto Gain Control |
Auto |
| Automatic White Balance |
Yes |
| Auto Gain Control |
Yes |
