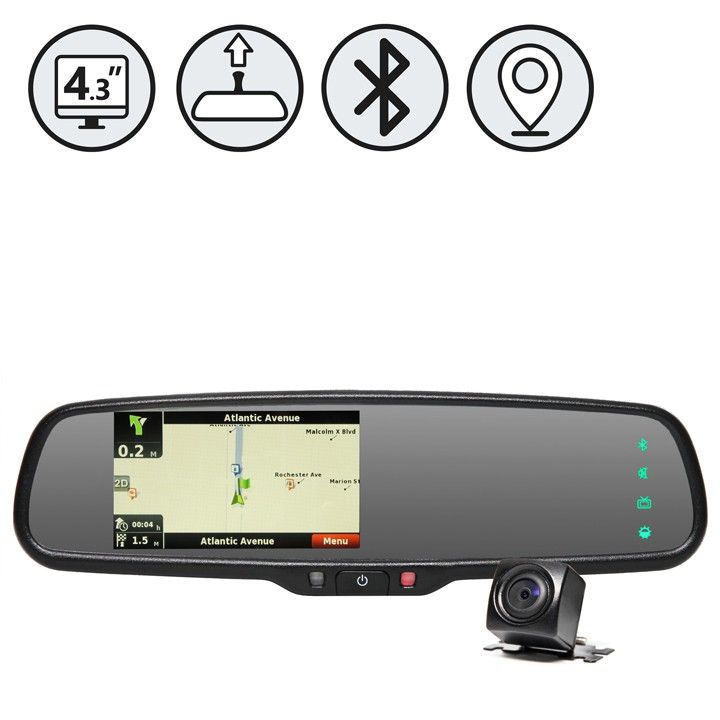

RVS Systems RVS-776718-NAVBT 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
- 4.3" Replacement Mirror Monitor
- Equipped with GPS and Full Bluetooth Capabilities
- Compact Camera Ideal for Smaller Vehicles
- 170° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
RVS Systems RVS-776718-NAVBT Backup Camera System Features
Backup camera system which fits almost any vehicle and is virtually invisible, look no further than the G-Series Camera System. This system features the legendary G-Series Monitor and the 776 Camera which despite its small size is powerfully built to withstand all weather conditions. This mirror monitor bundles a whole range of features into one unit. It acts as a rear view mirror, displays the backup camera, comes with complete GPS Navigation (from IGO) and has full Bluetooth capabilities. This monitor will direct you to your destination with the safety of a backup camera and the ease of hands free Bluetooth. The backup camera is completely waterproof with an IP68 rating and boasts excellent night vision. The system comes included with all parts necessary for installation.
Features
- 4.3" Replacement Mirror Monitor: Provides a sleek look while offering a clear display of rearview camera feed.
- Equipped with GPS and Full Bluetooth Capabilities: Allows for hands-free calling and navigation, promoting safer driving.
- Compact Camera Ideal for Smaller Vehicles: Fits in tight spaces without compromising on performance.
- 170° Ultra Wide Viewing Angle and Excellent Night Vision: Enhances visibility and safety during low-light conditions.
- Completely Waterproof Camera - IP68: Ensures durability and reliability in all weather conditions.
RVS Systems RVS-776718-NAVBT Detailed Specifications
| Monitor Size | 4.3 inches |
| Camera Lens | 2.1mm |
| Field of View | 170° |
| Weatherproof Rating | IP68 |
| Bluetooth Capability | Yes |
| GPS Navigation | Included (IGO) |
SKU  | RVS-776718-NAVBT |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | Camera: (with brackets) 0.83" (H) x 1.81" (L) x 0.79" (D), Mirror Monitor: 3.15" (H) x 10.55" (L) x 1" (D) |
| Power Consumption | 8W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
