RVS Systems RVS-776718-HBB 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens

SKU
RVS-776718-HBB
Model No
RVS-218638
$483.35
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights

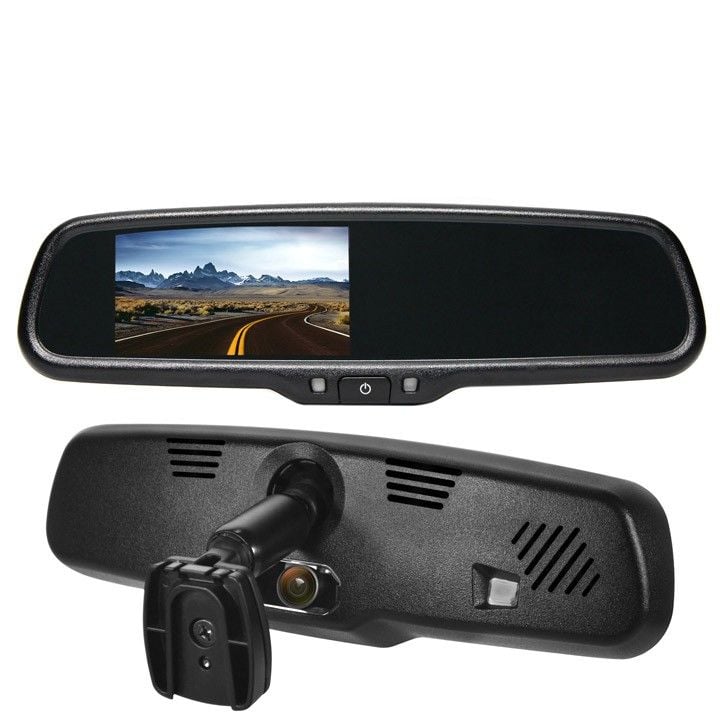

  • 4.3" Replacement Mirror Monitor
  • Hidden Dash Camera Records HD Footage Out Front Windshield
  • Dash Camera Equipped with Loop Recording and G-Sensor
  • 170° Ultra Wide Viewing Angle and Excellent Night Vision
  • Completely Waterproof Backup Camera - IP68

RVS Systems RVS-776718-HBB Backup Camera Features

The monitor with this backup camera system not only provides the view of the backup camera on its 4.3" screen but also comes with a built-in hidden dash camera to record full HD video out the front windshield. An SD card slot allows recordings on SD cards up to 32GB and when card is full, recording will loop and start overwriting the oldest footage. This system also includes parking mode, motion detection and a G-Sensor for event recording. The backup camera with this system is small and compact yet powerful with a 170° viewing angle and a completely waterproof encasing with an IP68 rating.

Features

  • 4.3" Replacement Mirror Monitor: Enhances visibility while maintaining a sleek appearance.
  • Hidden Dash Camera Records HD Footage Out Front Windshield: Provides reliable video evidence for increased safety and security.
  • Dash Camera Equipped with Loop Recording and G-Sensor: Ensures important footage is recorded and stored securely, preserving crucial data during incidents.
  • 170° Ultra Wide Viewing Angle and Excellent Night Vision: Offers enhanced awareness of surroundings, reducing blind spots during driving.
  • Completely Waterproof Backup Camera (IP68): Ensures durability and functionality in all weather conditions, providing peace of mind.

RVS Systems RVS-776718-HBB Detailed Specifications

Monitor Size4.3 inches
Camera Resolution480 TVL
Lens Type2.1mm lens
Viewing Angle170°
Waterproof RatingIP68
SD Card CapacityUp to 32GB
FeaturesParking mode, motion detection, G-Sensor
SKU  RVS-776718-HBB
Features  Auto Gain Control, Day/Night, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    480 TVL
Sensor Option    1/4" Image Sensor
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    Non Infrared
Durability    Weather Resistant
Electronic Shutter    1/50, 160-1/100,000sec
Gamma Correction  r=0.45 to 1.0
Minimum Scene Illumination  0.5 Lux
Operating Humidity    RH 95% Max
Operating Temperature    -40°C ~ +70°C
Dimensions (W x H)  Monitor: 10.55" (L) x 3.15" (H) x 1" (D), Camera: 1.81" (L) x 0.83 (H) x 0.79" (D)
S/N Ratio  More than 48dB
Signal System    PAL / NTSC
Video Output    1Vp.p 75ohm
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    170°
AudioYes
Day/Night    Yes
Auto Gain Control    Yes
