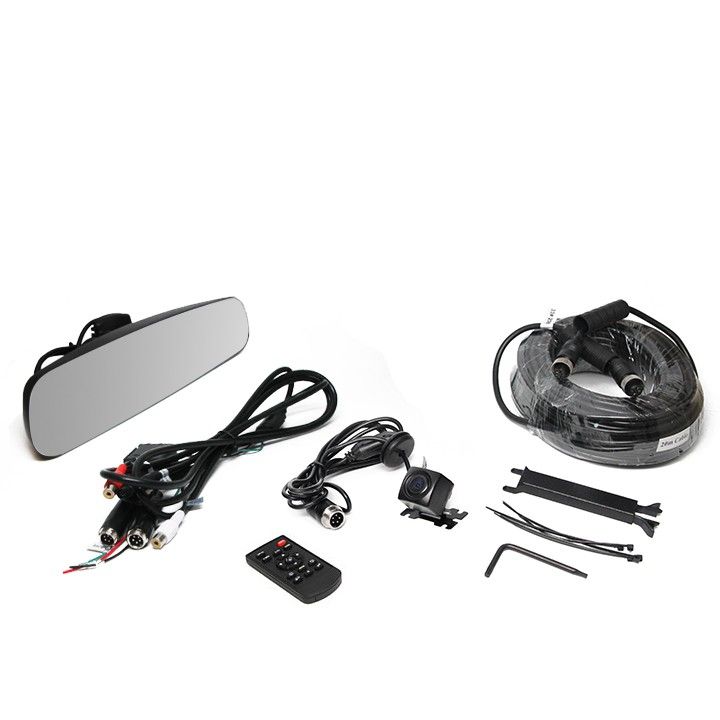

RVS Systems RVS-776718-FLML 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
- Frameless Touch Screen Mirror Monitor with 4.3" Display
- Mirror Link - View mobile phone on monitor
- Distance Grid Lines for Backing Up Reference
- 170° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Camera - IP68
RVS Systems RVS-776718-FLML Backup Camera System Features
Backup camera system which fits almost any vehicle and is virtually invisible, look no further than the G-Series Camera System. A modern take on a classic, the RVS-718-FLML features a frameless design, mirror link technology and a waterproof compact camera. This touchscreen system is equipped with a 4.3" display placed to the left of the mirror while the entire surface is reflective and acts as a mirror. Mirror Link enables you to view your mobile phone on your mirror monitor through Wi-Fi and standard programs like DLNA, Miracast and Air Play. Navigate your trip, select and listen to music, or play games on your mirror monitor, all with your cell phone. This monitor comes with adjustable grid lines, allowing you to adjust the grid lines to be completely accurate regardless where you mount the camera. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision.
Features

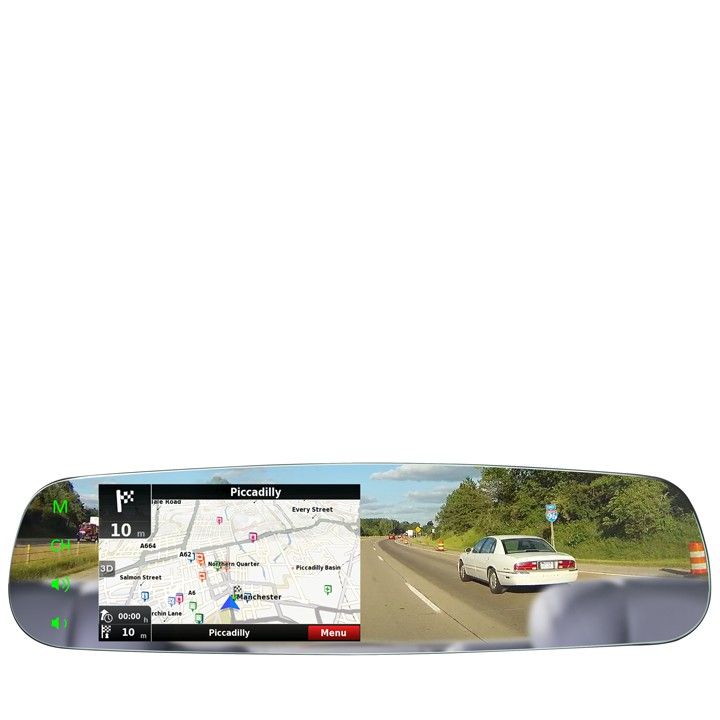

- Frameless Touch Screen Mirror Monitor: The 4.3" display offers a sleek, modern appearance and excellent visibility.
- Mirror Link: View your mobile phone on the monitor for music, navigation, and more, enhancing functionality on the road.
- Distance Grid Lines: Provides accurate backing up reference, improving parking confidence and safety.
- 170° Ultra Wide Viewing Angle: Ensures maximum visibility and excellent night vision for safer driving at all times.
- Completely Waterproof Camera - IP68: Protects against rain and extreme weather, meaning you can rely on this system in any condition.
RVS Systems RVS-776718-FLML Detailed Specifications
| Display Size | 4.3 inches |
| Camera Lens | 2.1mm |
| Viewing Angle | 170° |
| Waterproof Rating | IP68 |
| Compatibility | Universal fit for most vehicles |
| Technology | Mirror Link (DLNA, Miracast, Air Play) |
| Night Vision | Yes |
SKU  | RVS-776718-FLML |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | Monitor: 10.55" (L) x 3.15" (H) x 1" (D), Camera: 1.81" (L) x 0.83 (H) x 0.79" (D) |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
RVS-776718-FLML-Specsheet RVS-776718-FLML-Manual
