RVS Systems RVS-776718-BB 480 TVL Analog Outdoor Backup Camera System, 2.1mm Lens
SKU
RVS-776718-BB
Model No
RVS-218632
$507.84
Product Highlights
- 4.3" Replacement Mirror Monitor
- Built-in Dash Camera Records HD Footage Out Front Windshield
- Dash Camera Equipped with Loop Recording and G-Sensor
- 170° Ultra Wide Viewing Angle and Excellent Night Vision
- Completely Waterproof Backup Camera - IP68
Speak to an expert
The RVS Systems RVS-776718-BB 480 TVL Analog Outdoor Backup Camera System is a high-quality solution for enhancing vehicle safety while reversing. Featuring a dual-camera setup, this system ensures comprehensive visibility both behind and in front of your vehicle. With a user-friendly 4.3" monitor, SD card recording capabilities, and a durable waterproof camera, you can drive with enhanced confidence knowing you're covered on all fronts.
RVS Systems RVS-776718-BB Camera Features

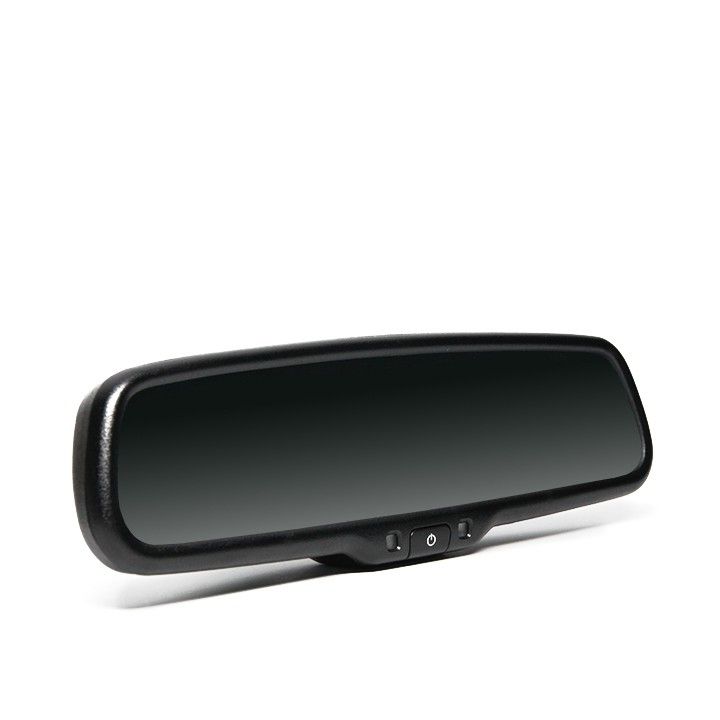

- 4.3" Replacement Mirror Monitor: Provides a clear display for easy viewing while reversing, ensuring safety and awareness.
- Built-in Dash Camera: Records high-definition footage out the front windshield, allowing you to capture important events on the road.
- Loop Recording and G-Sensor: Automatically overwrites older footage when the SD card is full, while the G-Sensor captures incident files for later review.
- 170° Ultra Wide Viewing Angle: Offers excellent visibility of your surroundings, reducing blind spots and improving safety.
- Completely Waterproof Backup Camera - IP68: Designed to withstand harsh weather conditions, providing reliability in all environments.
Detailed Specifications for RVS Systems RVS-776718-BB
| Camera Type | 480 TVL Analog Outdoor Backup Camera |
| Monitor Size | 4.3" Replacement Mirror Monitor |
| Field of View | 170° Viewing Angle |
| Recording Capacity | SD Cards up to 32GB |
| Waterproof Rating | IP68 |
| Additional Features | Built-in Dash Camera, Loop Recording, G-Sensor, Optional GPS |
SKU  | RVS-776718-BB |
|---|---|
| Features | Auto Gain Control, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Sensor Option | 1/4" Image Sensor |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Electronic Shutter | 1/50, 160-1/100,000sec |
| Gamma Correction | r=0.45 to 1.0 |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

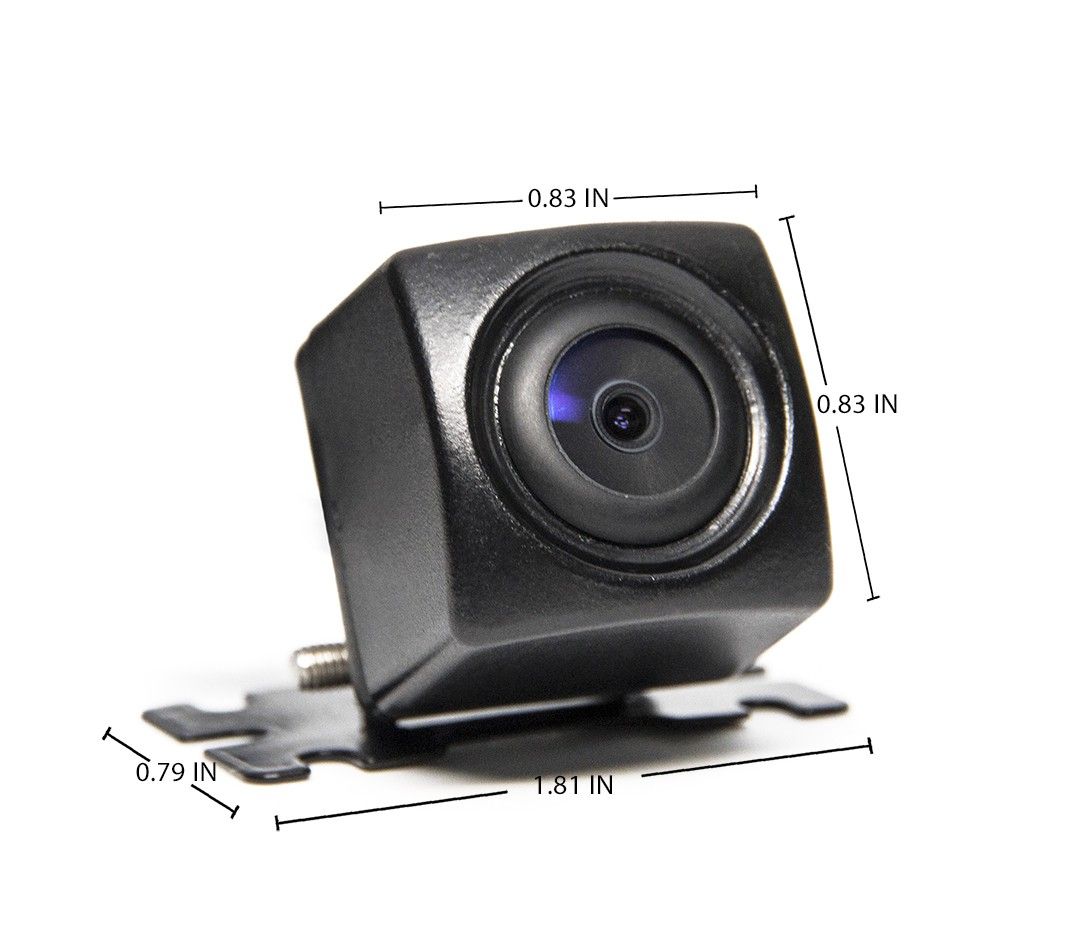

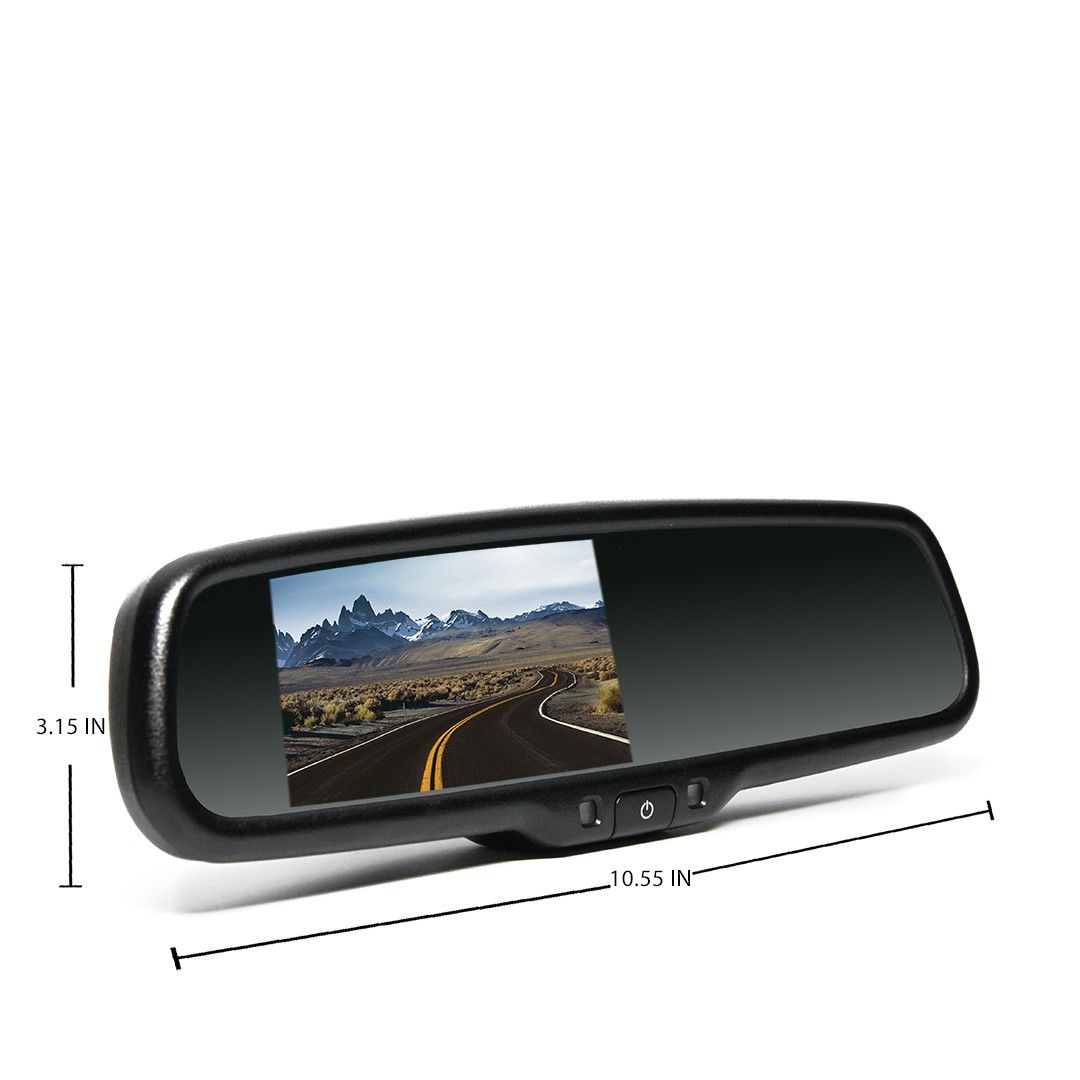

| Dimensions (W x H) | Camera: (with brackets) 0.83" (H) x 1.81" (L) x 0.79" (D), Mirror Monitor: 3.15" (H) x 10.55" (L) x 1" (D) |
| Power Consumption | 8W |
| S/N Ratio | More than 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1Vp.p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Day/Night | Yes |
| Auto Gain Control | Yes |
