RVS Systems RVS-776619 520 TVL Analog Outdoor Backup Camera System
SKU
RVS-776619
Model No
RVS-082514
$317.99
Product Highlights
- 7" TFT LCD Mirror Color Monitor

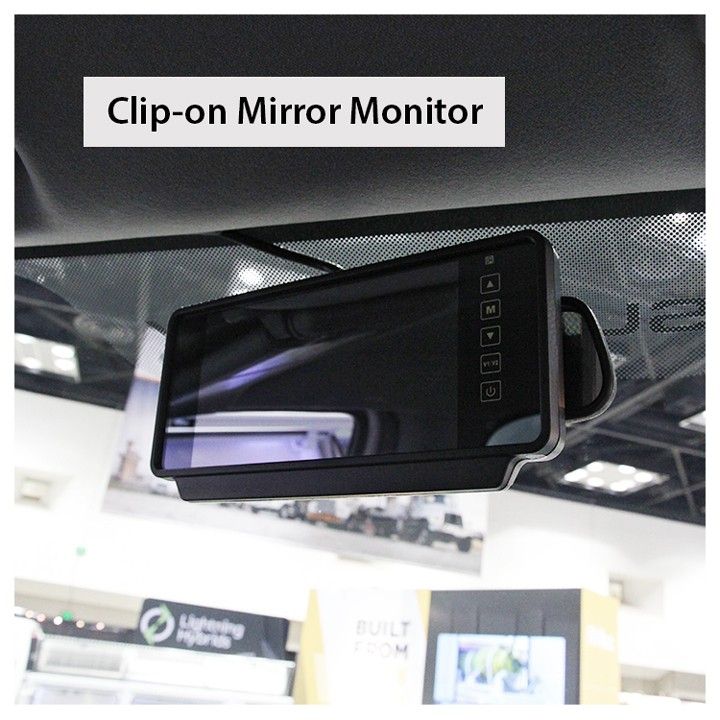

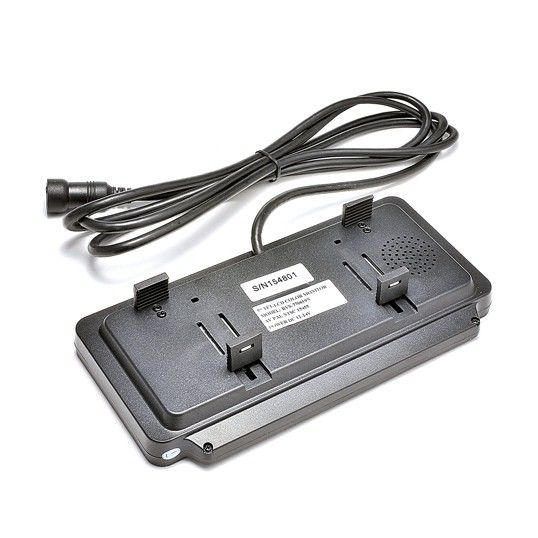

- Replaces or Clips Onto Rear View Mirror
- Completely waterproof backup camera with an IP68K rating
- 170° viewing angle and excellent Night vision
- 3 Channel - can add an additional two cameras
Speak to an expert

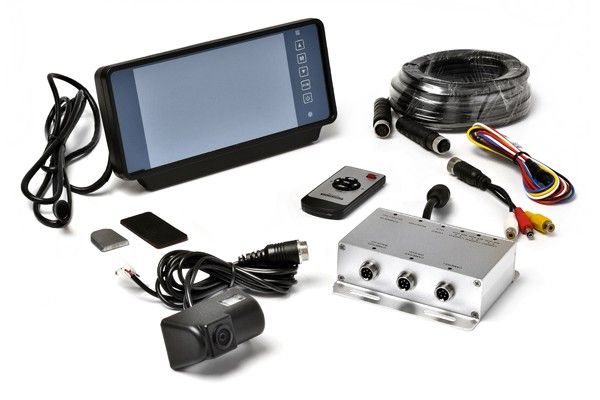

This RVS Systems RVS-776619 backup camera system is designed specifically for the Ford Transit Connect, featuring a high-resolution 7" TFT LCD color monitor with distance grid lines for added convenience. The system includes an OEM-style backup camera that installs seamlessly, ensuring a clean and professional look. With superior night vision capabilities, a robust weatherproof design, and complete installation accessories, this system offers safety and reliability backed by a one-year warranty.
RVS Systems RVS-776619 Backup Camera Features

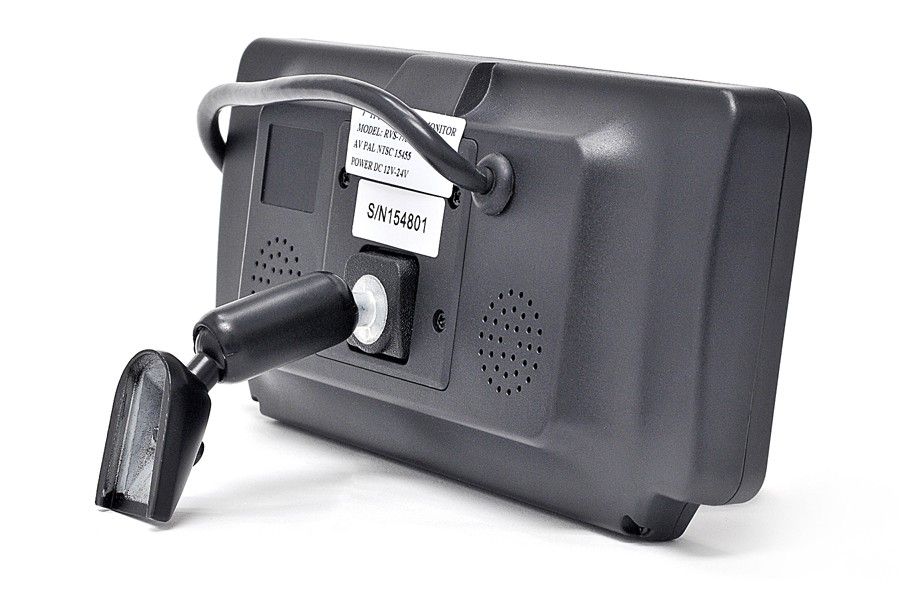

- 7" TFT LCD Monitor: Offers a clear and bright display for easy visibility in all lighting conditions.
- OEM-Style Installation: Installs like a factory-made camera for a seamless look on your vehicle.
- Weatherproof Design: IP68K rating ensures durability and protection against the elements.
- 170° Viewing Angle: Provides a wide field of view to minimize blind spots when reversing.
- Night Vision: Enhanced visibility in low-light conditions for safe maneuvering after dark.
- 3 Channel Multiplexer: Allows for the addition of two extra cameras for improved coverage.
Detailed Specifications for RVS Systems RVS-776619
| Monitor Size | 7 inches |
| Camera Type | OEM-style backup camera |
| Camera Rating | IP68 waterproof |
| View Angle | 170° |
| Night Vision | Yes |
| Multiplexer Channels | 3 channels |
| Vibration Rating | 10G (highest in the industry) |
| Warranty | 1 year |
SKU  | RVS-776619 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 520 TVL |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0.1 Lux |
| Dimensions (W x H) | Camera:(with brackets) 1.40" (H) x 1.50" (L) x 1.10" (D), Multiplexer: 1.25" (H) x 4.5" (L) x 4" (D), Monitor: 4.5" (H) x 9" (L) x 1" (D) |
| Power Consumption | <1W |
| S/N Ratio | 48dB |
| Signal System | PAL / NTSC |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Auto Gain Control | Yes |
