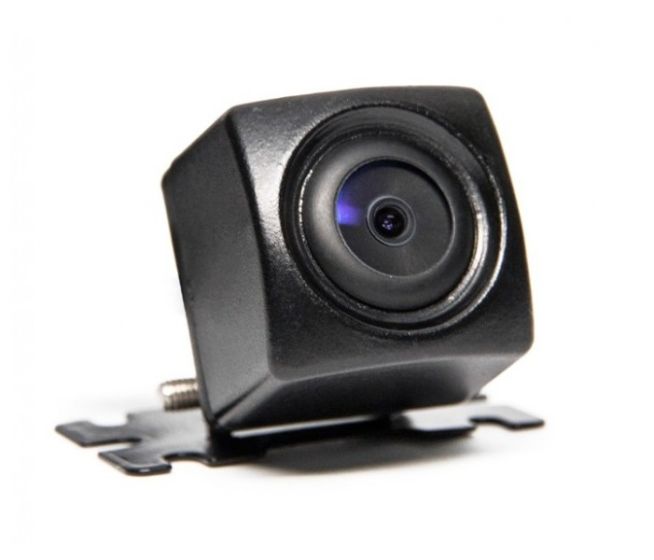

RVS Systems RVS-776-12 480TVL Surface Mount Forward Facing Camera, 16' Cable, RCA Adapter
SKU
RVS-776-12
Model No
RVS-776-12
$139.91
Product Highlights
- Surface Mounts on the front or back of vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

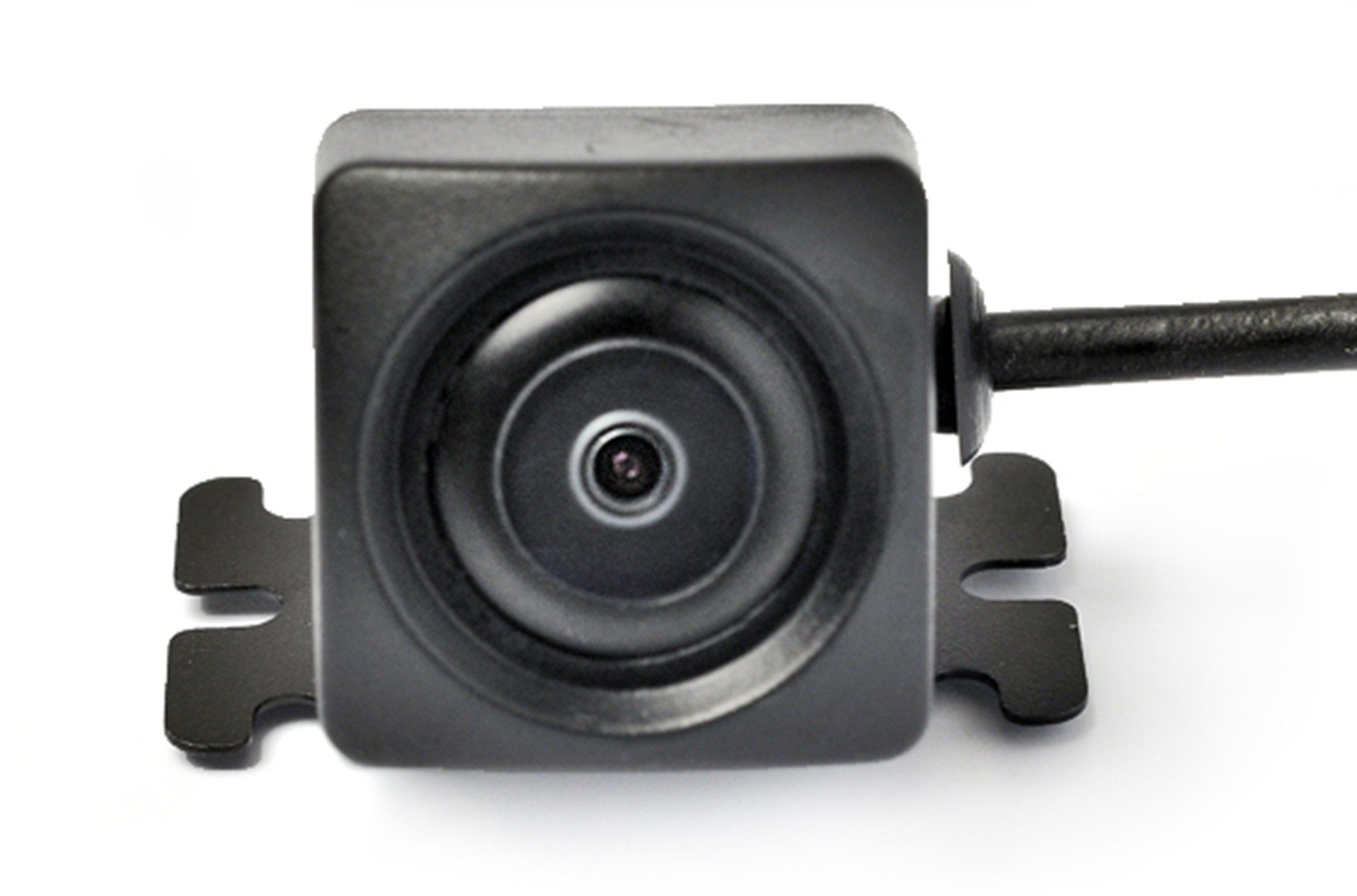

The RVS-776 forward facing camera is surface mounted and can fit virtually any vehicle. This slick compact design makes the camera virtually invisible. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision. The camera can plug into any monitor or GPS system which allows an A/V input. Camera comes with 16' cable, RCA Adapter, female power cable for RCA adapters, 5 pin male to RCA male adapter.
RVS Systems RVS-776-12 Camera Features
- Installation: Surface mounts on the front or back of vehicle for flexible positioning and ease of use.
- Field of View: 170° all-encompassing angle provides a wide view for enhanced safety and awareness.
- Design: Compact design ensures the camera is virtually invisible, maintaining the aesthetic of your vehicle.
- Night Vision: Excellent night vision capabilities allow for clear visibility in low light conditions, enhancing security.
- Weatherproof: Completely waterproof with an IP68 rating, ensuring durability in harsh weather conditions.
RVS Systems RVS-776-12 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Forward Facing Surface Mount |
| Video Resolution | 480TVL |
| Field of View | 170° |
| IP Rating | IP68 |
| Night Vision | Yes |

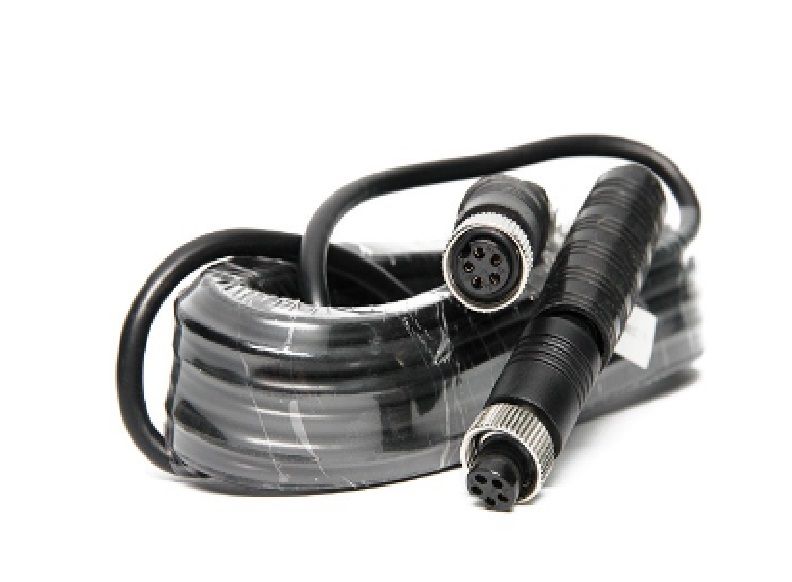

| Cable Length | 16' |

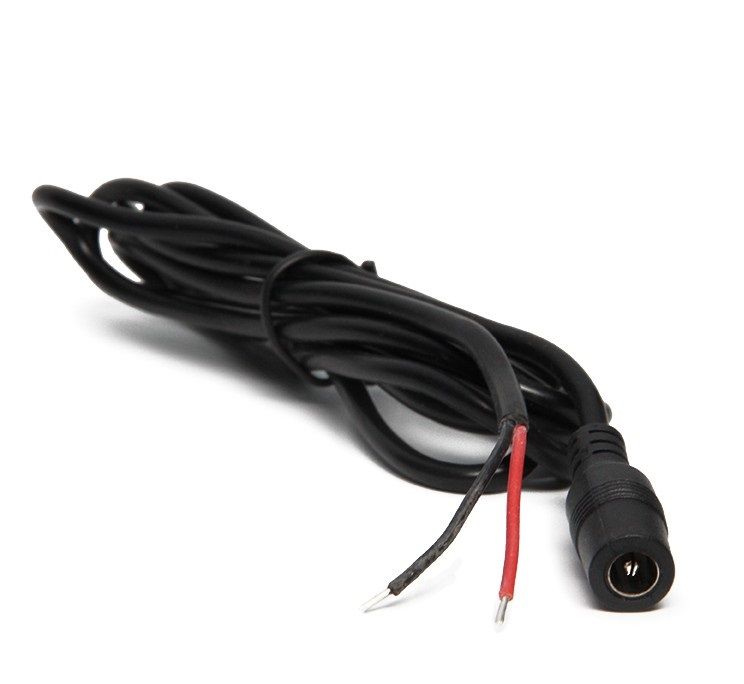

| Connectors | RCA and female power cable for RCA adapters |

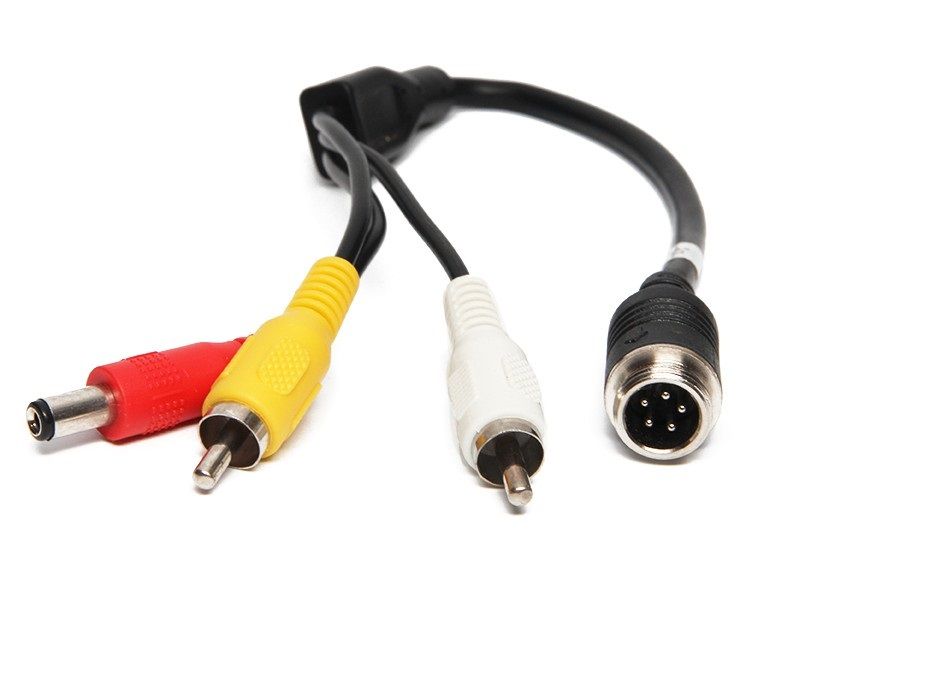

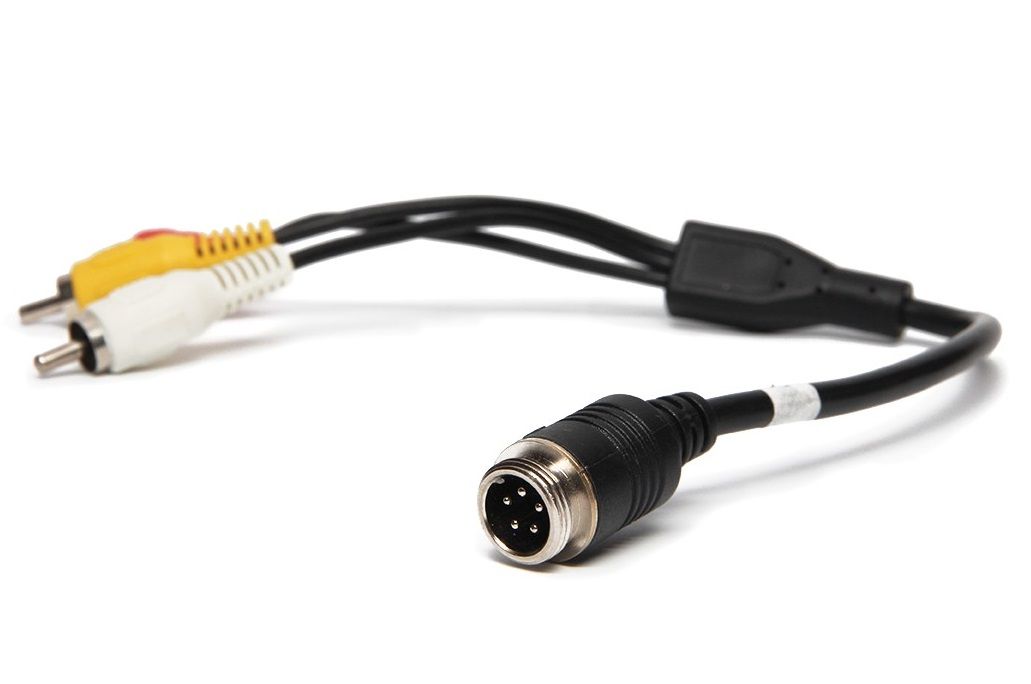

| Adapter Included | 5 pin male to RCA male adapter |
SKU  | RVS-776-12 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

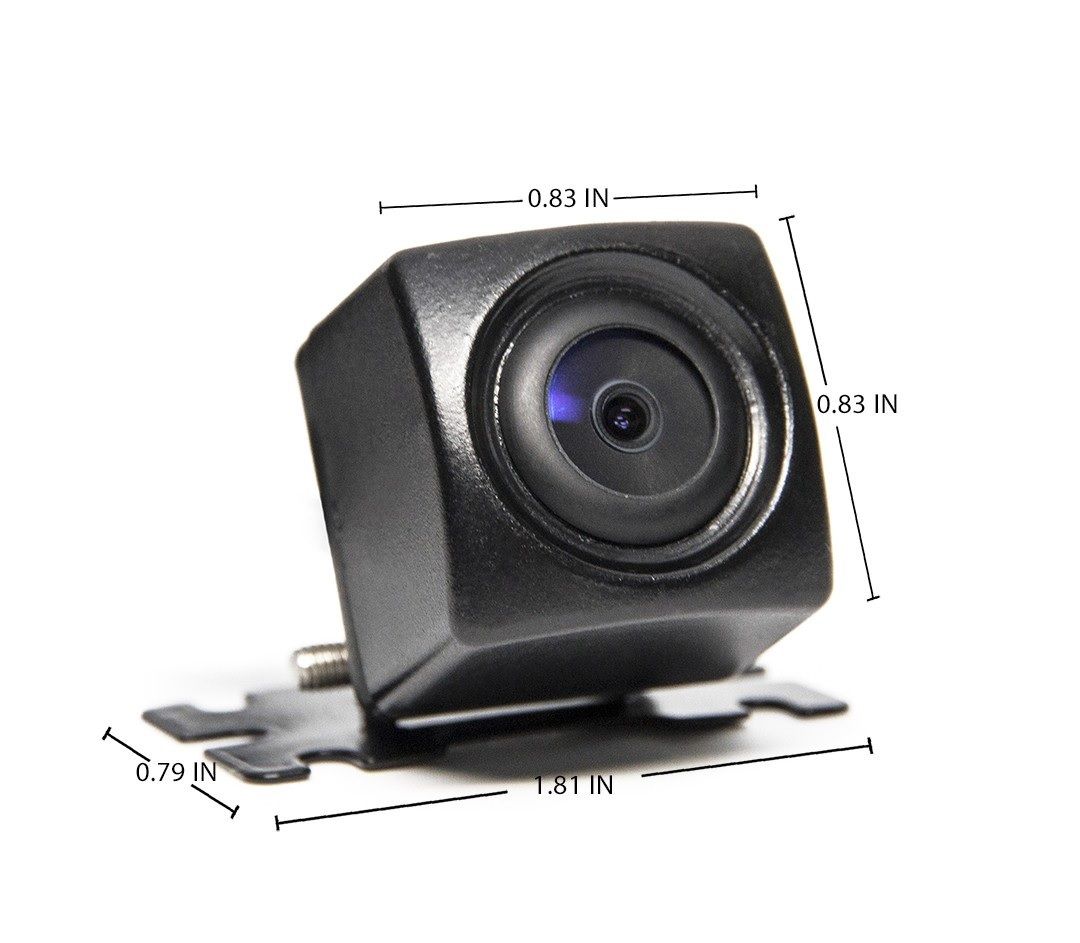

| Dimensions (W x H) | 0.83" (H) x 1.81" (L) x 0.79 "(D) |
| S/N Ratio | 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
