RVS Systems RVS-776-11 480TVL Surface Mount Forward Facing Camera, 33' Cable, RCA Adapter
SKU
RVS-776-11
Model No
RVS-776-11
$139.91
Product Highlights
- Surface Mounts on the front or back of vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

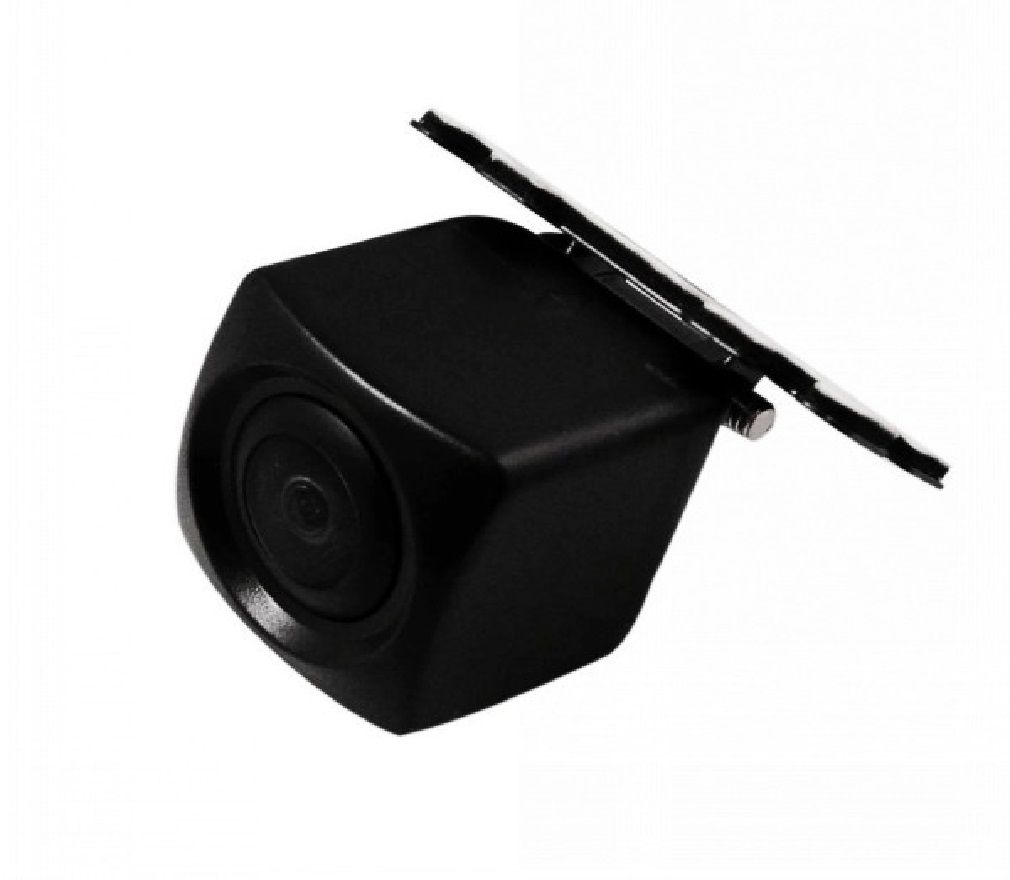

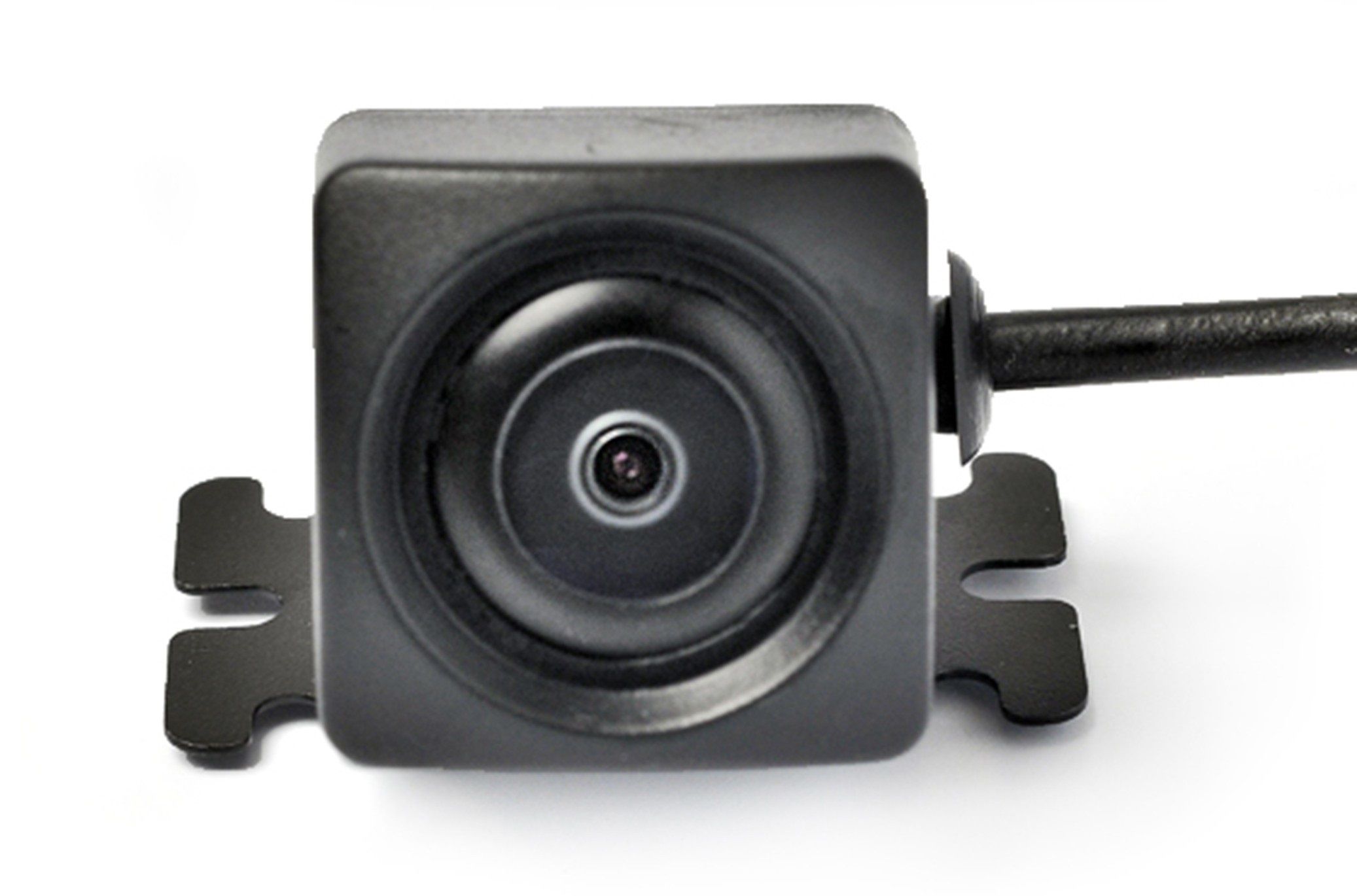

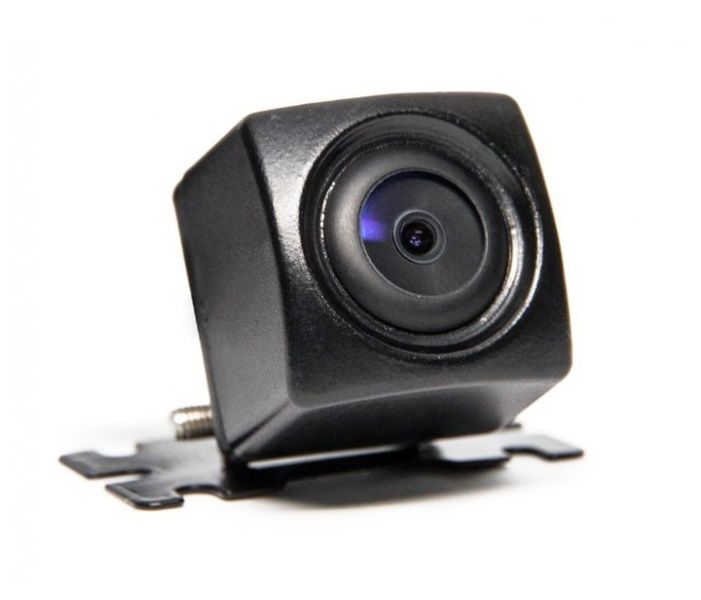

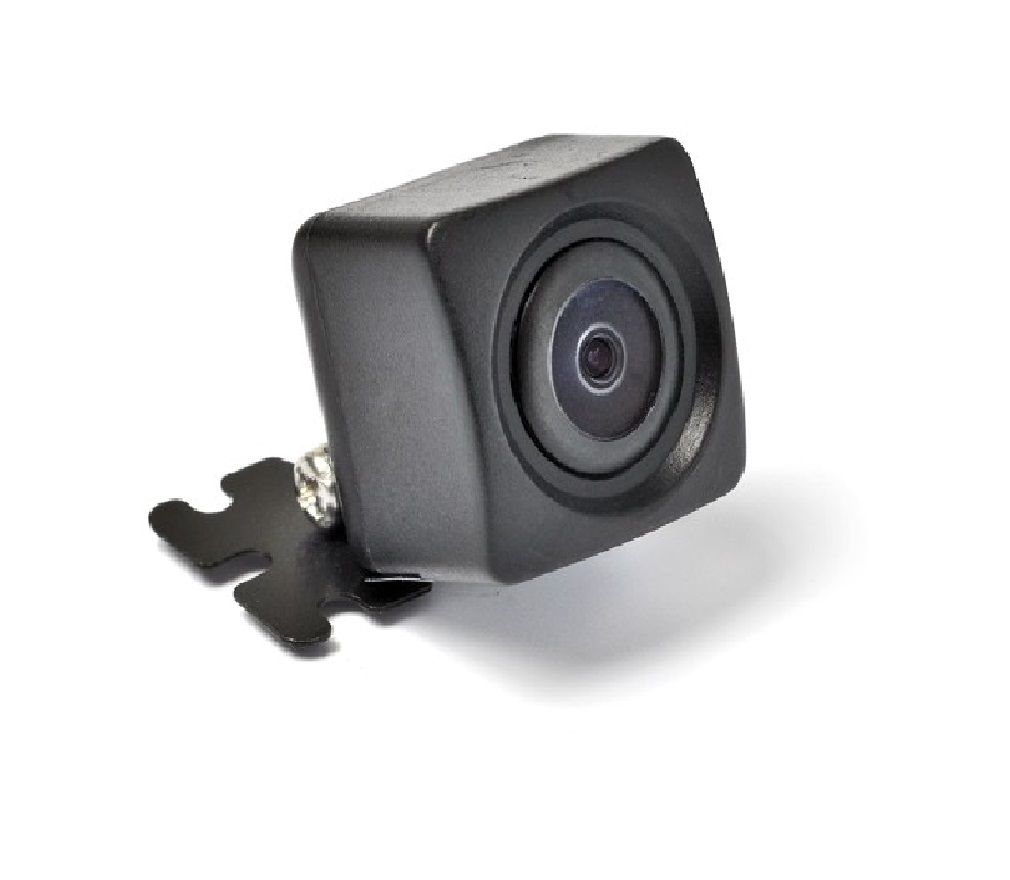

The RVS-776 forward facing camera is surface mounted and can fit virtually any vehicle. This slick compact design makes the camera virtually invisible. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision. The camera can plug into any monitor or GPS system which allows an A/V input. Camera comes with 33' cable, RCA Adapter, female power cable for RCA adapters, 5 pin male to RCA male adapter.
RVS Systems RVS-776-11 Camera Features
- Versatile Installation: Surface mounts on the front or back of the vehicle for enhanced functionality.
- Wide Field of View: 170° all-encompassing angle eliminates blind spots for safer driving.
- Discreet Design: Compact design ensures the camera remains less noticeable once installed.
- Night Vision Capability: Excellent low-light performance guarantees visibility in adverse conditions.
- Durability: Completely waterproof with an IP68 rating for long-lasting performance against weather elements.
RVS Systems RVS-776-11 Detailed Specifications
| Camera Type | Surface Mount Forward Facing |
| Image Quality | 480TVL |
| Field of View | 170° Angle |
| Waterproof Rating | IP68 |
| Cable Length | 33 feet |
| Included Adapters | RCA, 5 Pin Male to RCA Male |
| Power Input | Female Power Cable for RCA Adapters |
SKU  | RVS-776-11 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 0.83" (H) x 1.81" (L) x 0.79 "(D) |
| S/N Ratio | 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
