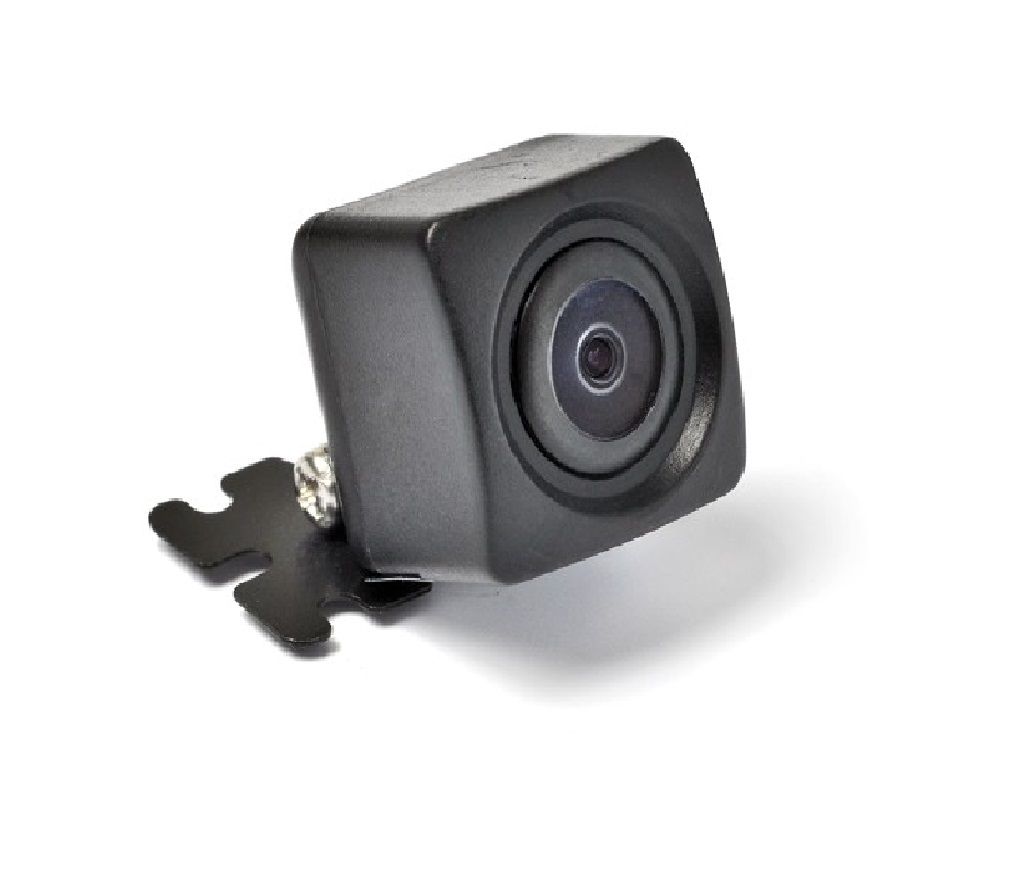

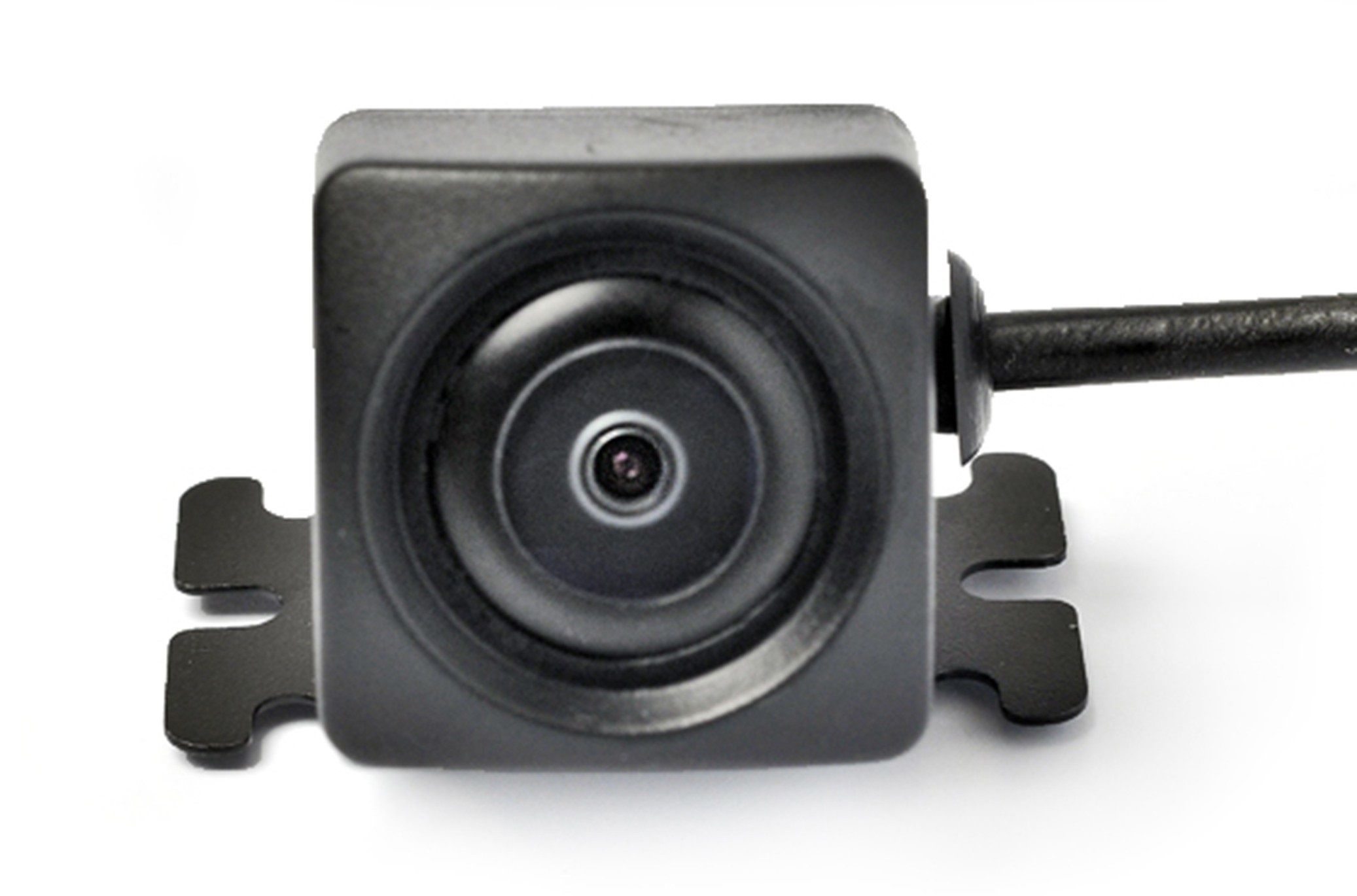

RVS Systems RVS-776-10 480TVL Surface Mount Forward Facing Camera, 66' Cable, RCA Adapter
SKU
RVS-776-10
Model No
RVS-776-10
$119.99
Product Highlights
- Surface Mounts on the front or back of vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

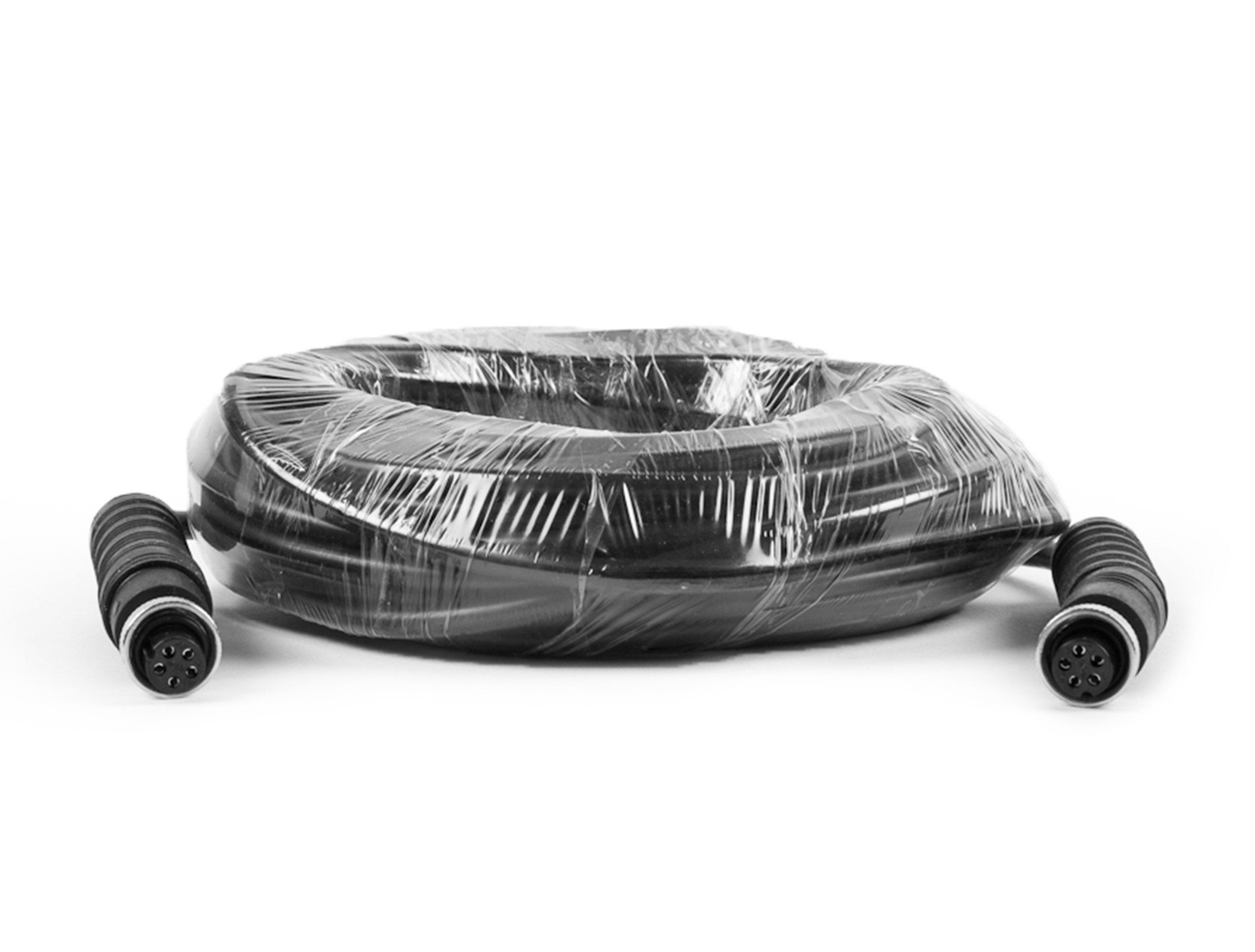

The RVS-776 forward facing camera is surface mounted and can fit virtually any vehicle. This slick compact design makes the camera virtually invisible. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision. The camera can plug into any monitor or GPS system which allows an A/V input. Camera comes with 66' cable, RCA Adapter, female power cable for RCA adapters, 5 pin male to RCA male adapter.
RVS Systems RVS-776-10 Camera Features
- Surface Mount: Easily installable on the front or back of any vehicle for versatile applications.
- 170° Viewing Angle: Provides a wide field of view, ensuring maximum visibility and safety during driving.
- Compact Design: Its sleek and unobtrusive profile allows the camera to blend seamlessly with the vehicle.
- Excellent Night Vision: Enhanced visibility in low-light conditions ensures safe operation at all times.
- Weatherproof Rating: IP68 protection guarantees functionality in various weather conditions, making it durable and reliable.
RVS Systems RVS-776-10 Detailed Specifications
| Camera Type | Forward Facing Surface Mount |
| Resolution | 480TVL |
| Cable Length | 66 feet |
| Angle of View | 170° |
| Weatherproof Rating | IP68 |
| Installation | Surface Mounted |
| Power Supply | Includes female power cable for RCA adapters |
| Adapters Included | RCA Adapter, 5 pin male to RCA male adapter |
SKU  | RVS-776-10 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |

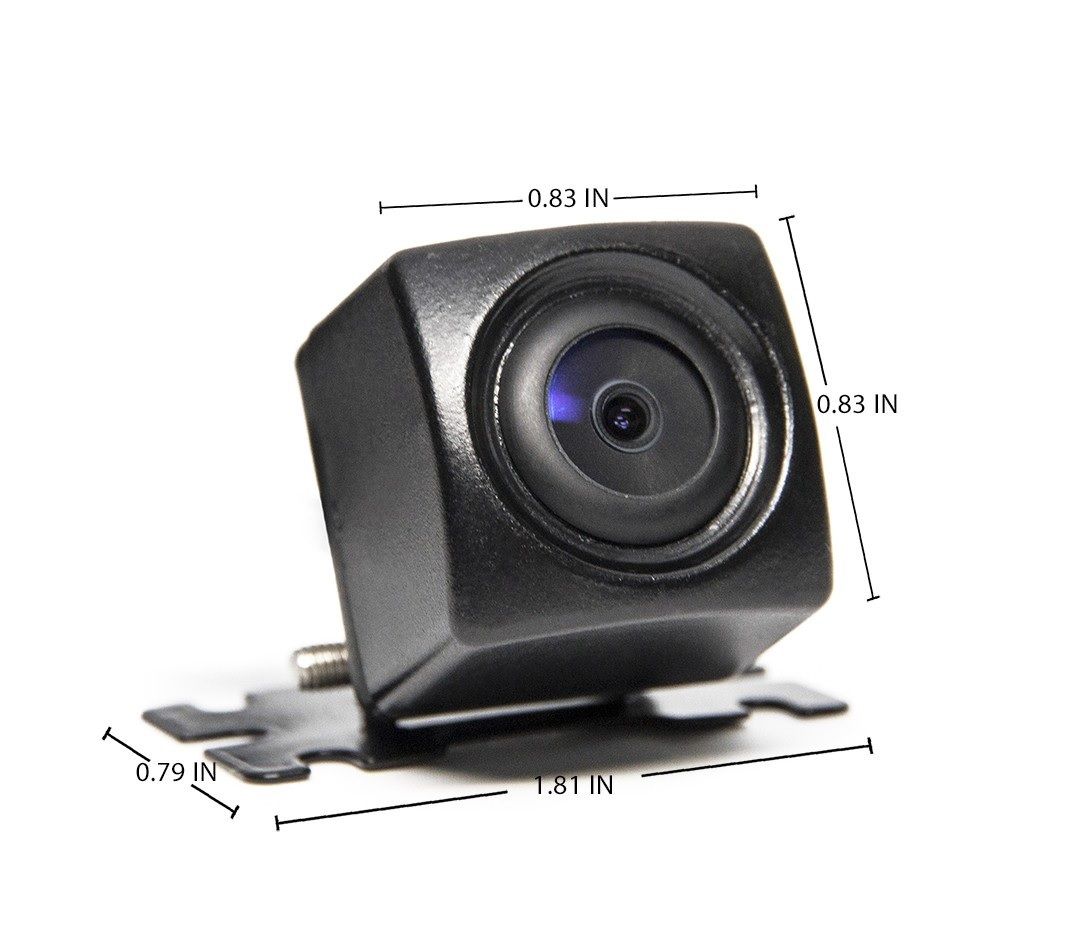

| Dimensions (W x H) | 0.83" (H) x 1.81" (L) x 0.79 "(D) |
| S/N Ratio | 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
