RVS Systems RVS-776-09 480TVL Surface Mount Backup Camera, 16' Cable, RCA Adapter
SKU
RVS-776-09
Model No
RVS-776-09
$139.91
Product Highlights
- Surface Mounts on the front or back of vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

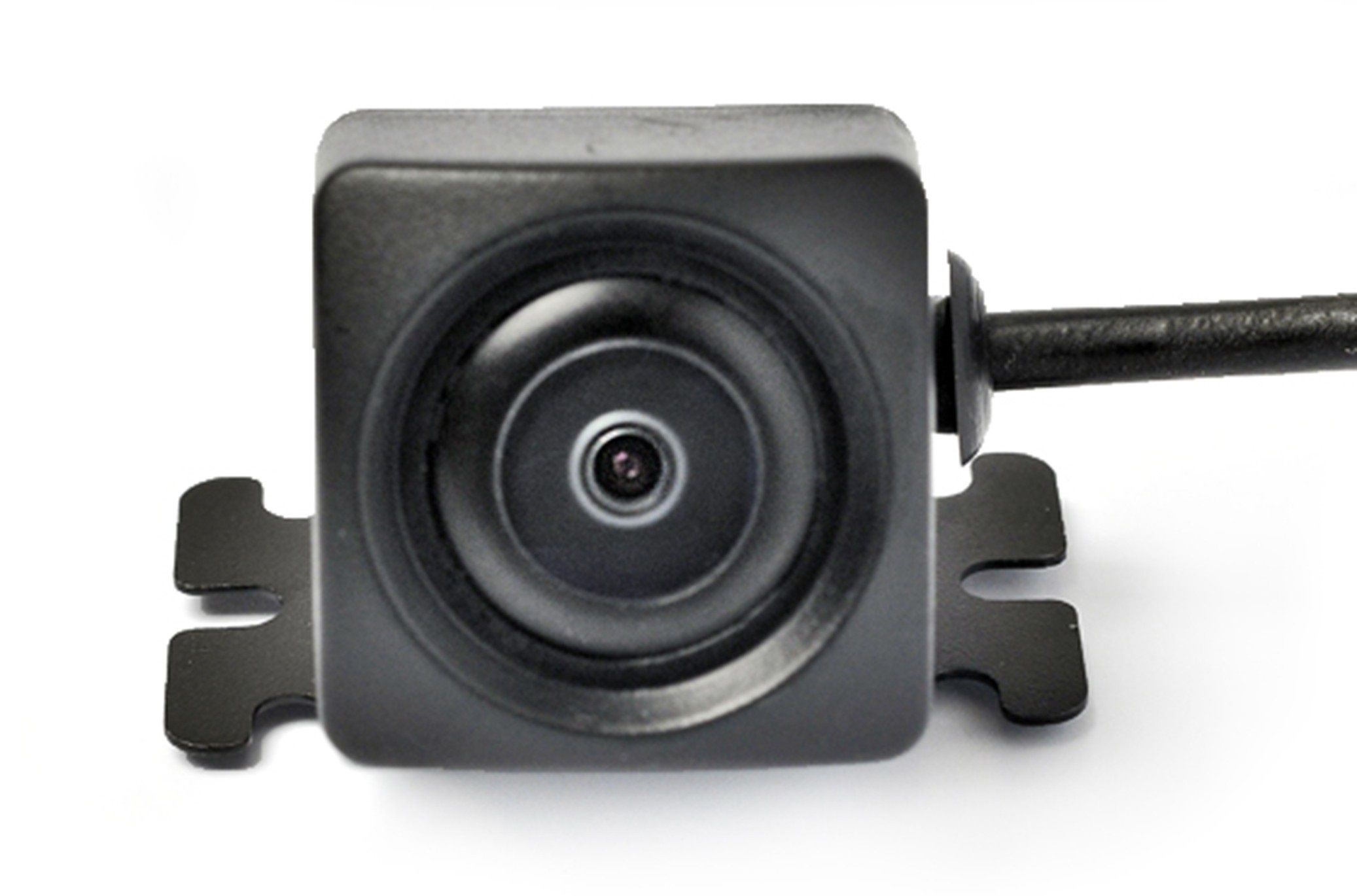

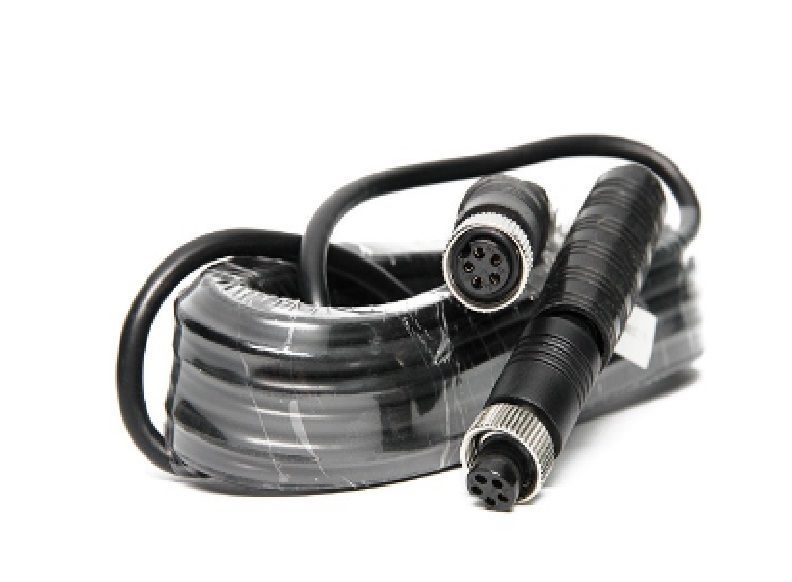

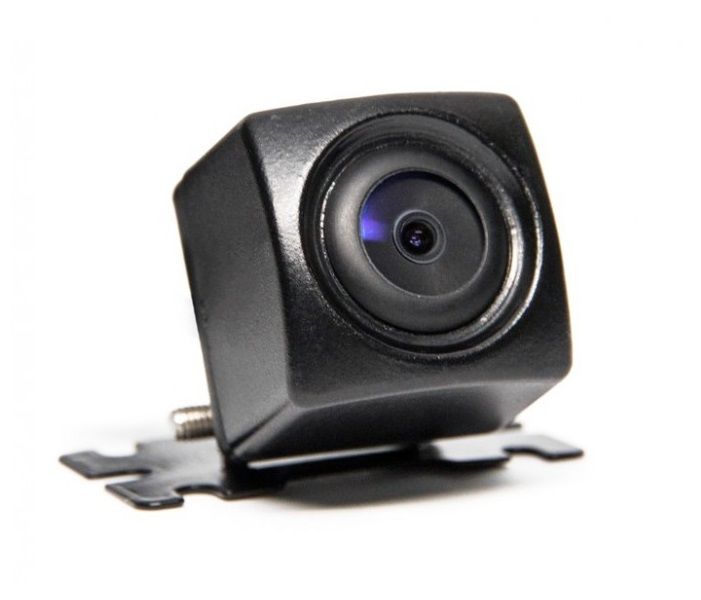

The RVS-776 backup camera is surface mounted and can fit virtually any vehicle. This slick compact design makes the camera virtually invisible. The camera has an IP68 rating which makes it completely weatherproof and boasts excellent night vision. The camera can plug into any monitor or GPS system which allows an A/V input. Camera comes with 18' cable, RCA Adapter, female power cable for RCA adapters, 5 pin male to RCA male adapter.
RVS Systems RVS-776-09 Camera Features
- Surface Mount: Allows for installation on the front or back of any vehicle, giving you flexibility in placement.
- 170° Viewing Angle: Provides a wide field of view to eliminate blind spots while reversing, enhancing safety.
- Compact Design: Blends seamlessly with the vehicle's aesthetic and remains discreet.
- Excellent Night Vision: Equipped for low-light conditions, ensuring clear visibility at night or in dim environments.
- IP68 Rating: Completely waterproof and weatherproof, guaranteeing durability and longevity against harsh conditions.
RVS Systems RVS-776-09 Detailed Specifications
| Feature | Details |
| Camera Type | Surface Mount |
| Resolution | 480TVL |
| Cable Length | 16' with additional 2' for a total of 18' |
| Viewing Angle | 170° |
| Waterproof Rating | IP68 |
| Night Vision | Yes |
| Connection Type | RCA Adapter |
| Included Accessories | Female power cable, 5 pin male to RCA male adapter |
SKU  | RVS-776-09 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Resolution | 480 TVL |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Minimum Scene Illumination | 0.5 Lux |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +70°C |
| Dimensions (W x H) | 0.83" (H) x 1.81" (L) x 0.79 "(D) |
| S/N Ratio | 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
