RVS Systems RVS-776-07 Surface Mount Backup Camera, 66' Cable, RCA Adapter
SKU
RVS-776-07
Model No
RVS-776-07
$139.91
Product Highlights
- Surface Mounts on the front or back of the vehicle
- 170° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating
Speak to an expert

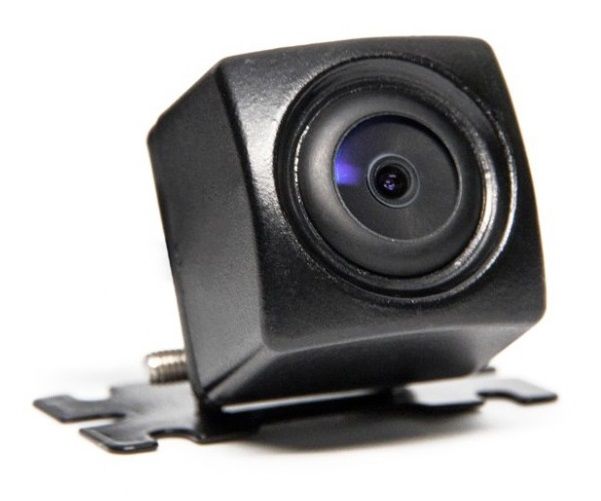

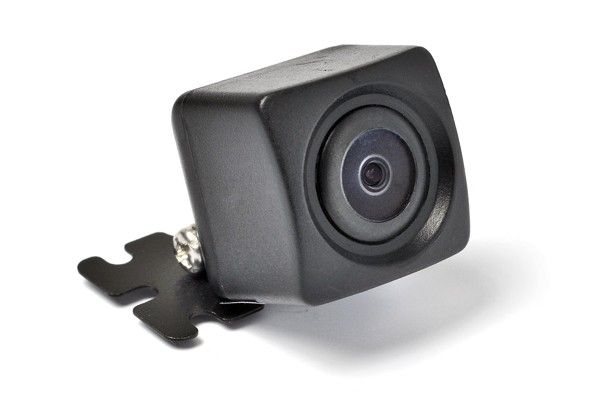

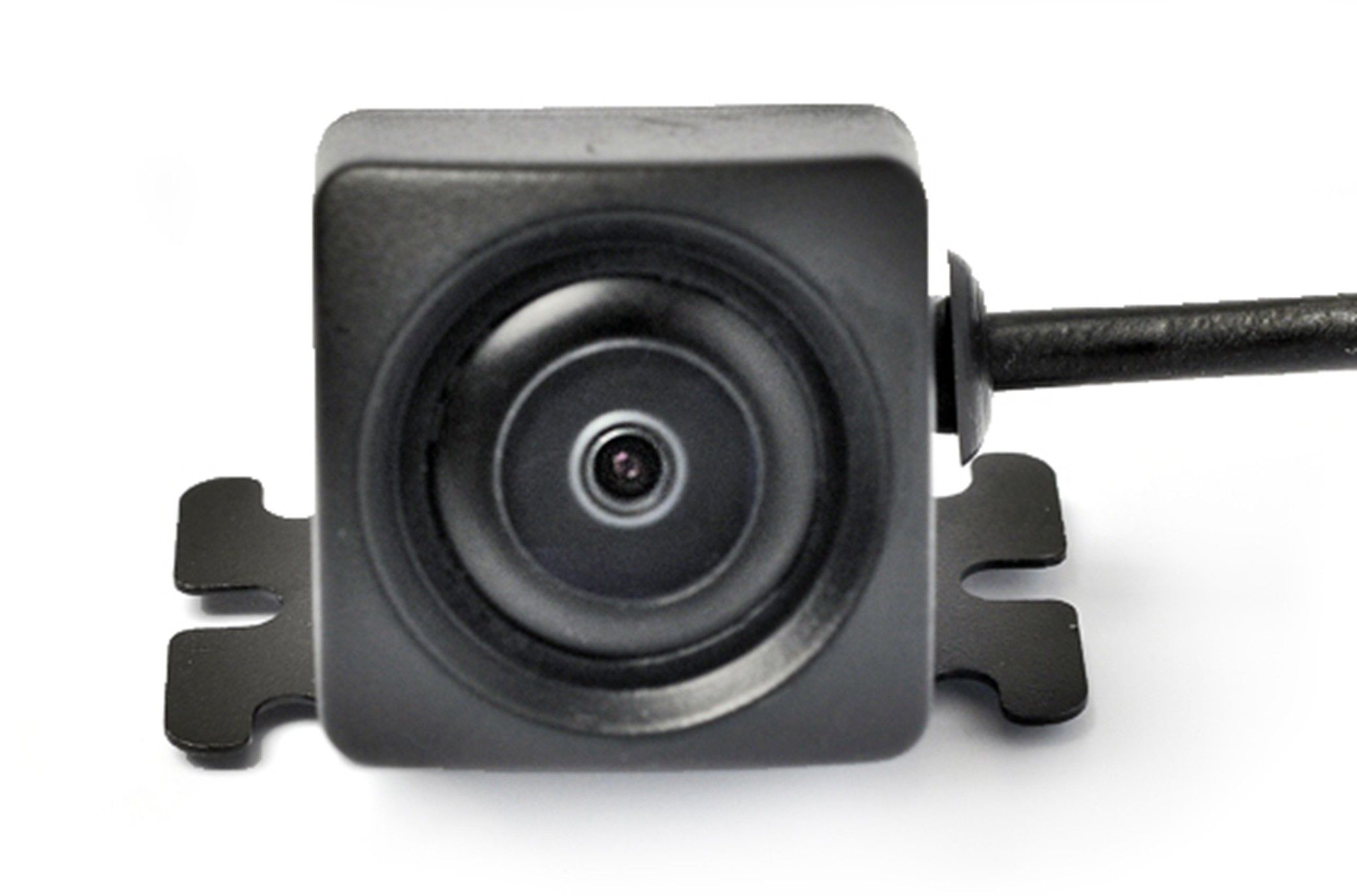

The RVS-776-07 from RVS Systems is a backup camera designed for surface mounting, making it suitable for virtually any vehicle. Its compact design ensures that it's nearly invisible, while the IP68 rating guarantees complete weatherproofing, making it perfect for all conditions. With outstanding night vision, this camera connects effortlessly to any monitor or GPS system via RCA input, making it an ideal choice for enhancing your vehicle's safety.
RVS Systems RVS-776-07 Camera Features
- Surface Mounting: Allows installation on both the front and rear of the vehicle, providing versatile placement options.
- 170° Viewing Angle: Offers a wide coverage area, ensuring you can see more of your surroundings.
- Compact Design: Blends seamlessly with your vehicle's exterior, enhancing aesthetics without compromising functionality.
- Excellent Night Vision: Ensures clear visibility in low-light conditions, improving safety during nighttime driving.
- Waterproof - IP68 Rating: Fully protected against dust and water, suitable for all weather conditions.
RVS Systems RVS-776-07 Detailed Specifications
| Model | RVS-776-07 |
| Mount Type | Surface Mount |
| Camera Angle | 170 degrees |
| Night Vision | Yes |
| Waterproof Rating | IP68 |

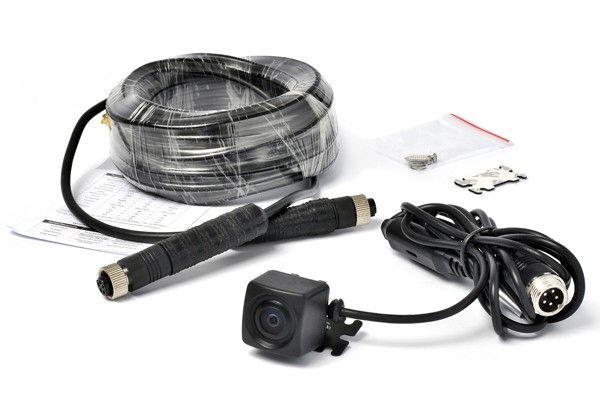

| Cable Length | 66 feet |
| Connections | RCA and Power connections |
| Compatibility | Any monitor with RCA input |
SKU  | RVS-776-07 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Lens Type | Fixed |
| Lens Size | 2.1mm |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Voltage | 12-24vDC |
| Electronic Shutter | Electronic Rolling Shutter (ERS) |
| Image Device | 1/4 Inch |
| Operating Humidity | RH 95% Max |
| Operating Temperature | -40°C ~ +80°C |

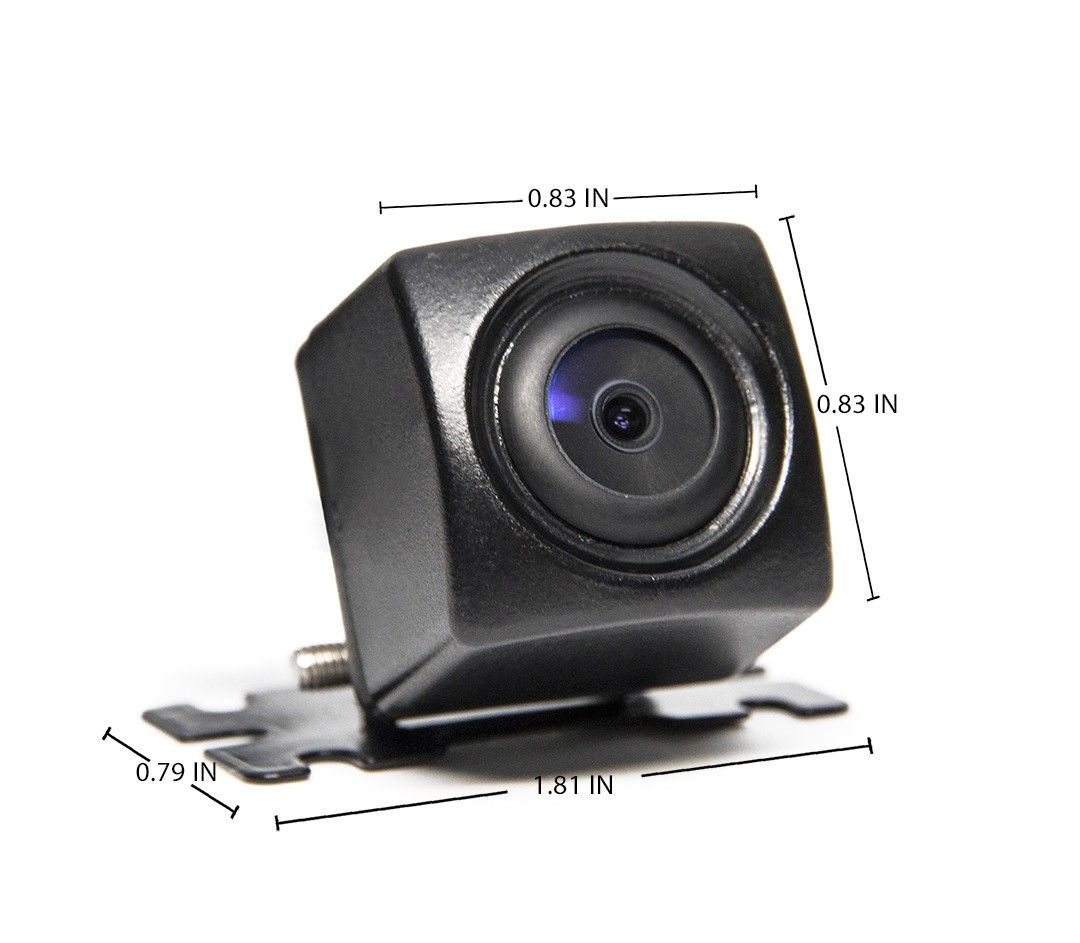

| Dimensions (W x H) | 0.83" (H) x 1.81" (L) x 0.79 "(D) |
| S/N Ratio | 48dB |
| Signal System | NTSC / PAL |
| Video Output | 1Vp-p, 75 Ω |
| Weatherproof | IP68 |
| Synchronization | Internal Synchronization |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Auto Gain Control | Yes |
