RVS Systems RVS-775R-01 120° HD Side Camera, Right, 66' Cable, Black
SKU
RVS-775R-01
Model No
RVS-775R-01
$127.19
Product Highlights
- High-Definition (HD)
- 120° Ultra Wide Viewing Angle
- 9 Infra-Red Lights - 50ft of Night Vision
- Completely Waterproof - IP68 Rating
- High Dynamic Range Imaging (HDRI)
Speak to an expert

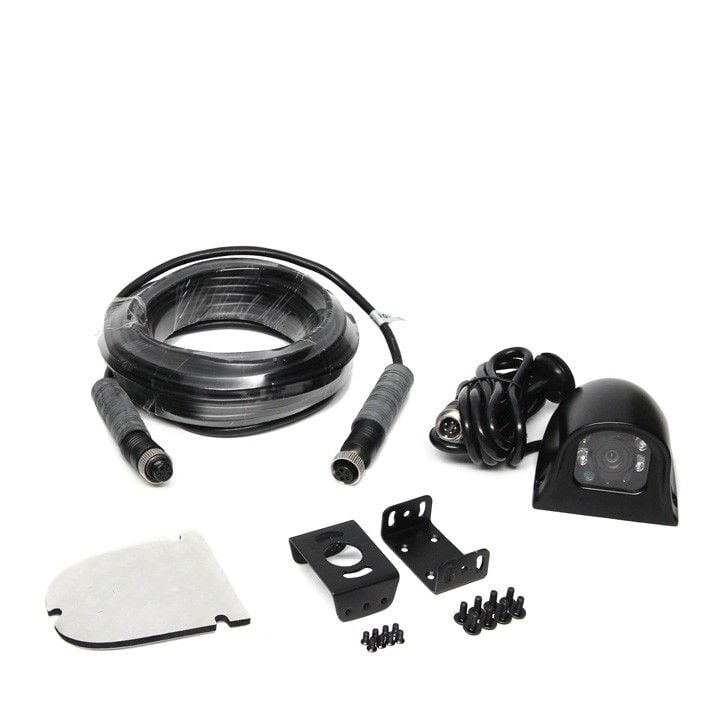

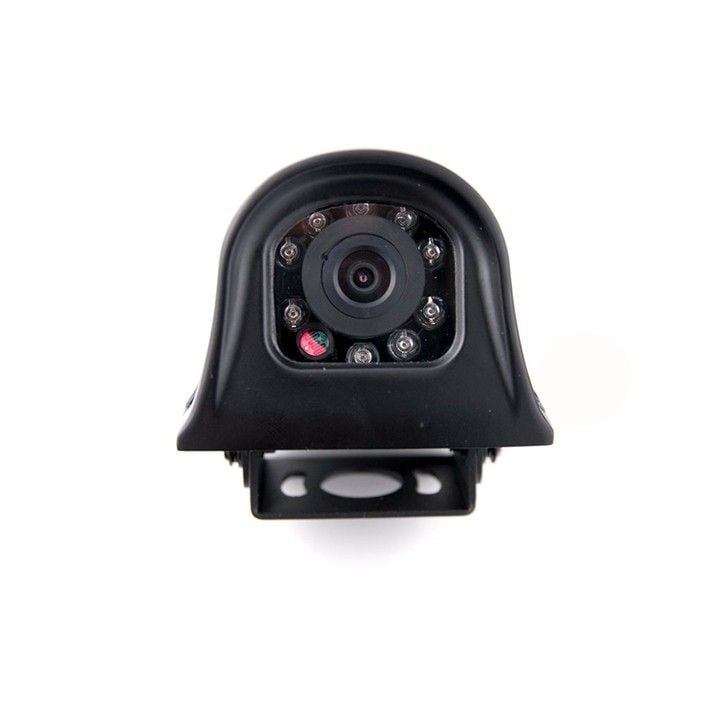

The RVS-775R-01 from RVS Systems is the high definition (HD) version of our popular side camera. A dynamic 927,000 Pixels, F/2.5 Maximum Aperture, and 9 Infra-Red Illuminators deliver clear video footage with rich-detail to view your blind spots. Drivers can see up to 50 ft., even in total darkness! This heavy-duty camera has an IP68 rating and can withstand tough weather conditions. Take advantage of the camera’s High-Dynamic-Range Imaging (HDRI), a technique used to produce a dynamic range of luminosity for truly advanced HD video. The camera comes with 66' cable with a double-sided Female Air-Craft Grade Connection.
RVS Systems RVS-775R-01 Camera Features
- High-Definition (HD): Offers exceptional clarity with 927,000 pixels for detailed images.
- 120° Ultra Wide Viewing Angle: Maximizes your field of view, enhancing safety by capturing blind spots.
- 9 Infra-Red Lights - 50ft of Night Vision: Allows for clear visibility in complete darkness, making it ideal for nighttime driving.
- Completely Waterproof - IP68 Rating: Ensures durability in harsh weather conditions, proving to be reliable over time.
- High Dynamic Range Imaging (HDRI): Produces advanced HD video quality through improved luminosity control, making images more vibrant.
RVS Systems RVS-775R-01 Detailed Specifications
| Camera Type | HD Side Camera |
| Resolution | 927,000 Pixels |
| Aperture | F/2.5 Maximum |
| Viewing Angle | 120° |
| Night Vision | 9 Infra-Red Lights, Up to 50ft |
| Waterproof Rating | IP68 |
| Dynamic Range Technique | High Dynamic Range Imaging (HDRI) |
| Cable Length | 66 ft |
| Connection Type | Double-sided Female Air-Craft Grade |
SKU  | RVS-775R-01 |
|---|---|
| Features | Auto Gain Control, Weather Resistant, Wide Dynamic Range |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Infrared Distance | 0~60 Feet |
| Durability | Weather Resistant |
| IR Distance | 15.24m/50ft |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Humidity | RH 85% Max |
| Operating Temperature | -20°C ~ +70°C |
| S/N Ratio | More than 50db (AGC OFF) |
| Weatherproof | IP68 |
| Angle of View | 120° |
| IR LEDs | 9 |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
