RVS Systems RVS-775L-12 120° 420 TVL White Left Side Camera, 16' Cable, RCA Adapter, 2.1mm Lens

SKU
RVS-775L-12
Model No
RVS-775L-12
$127.19
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 120° angle left side camera, White
  • Weather-resistant
  • 16' Cable
  • 2.1mm Lens

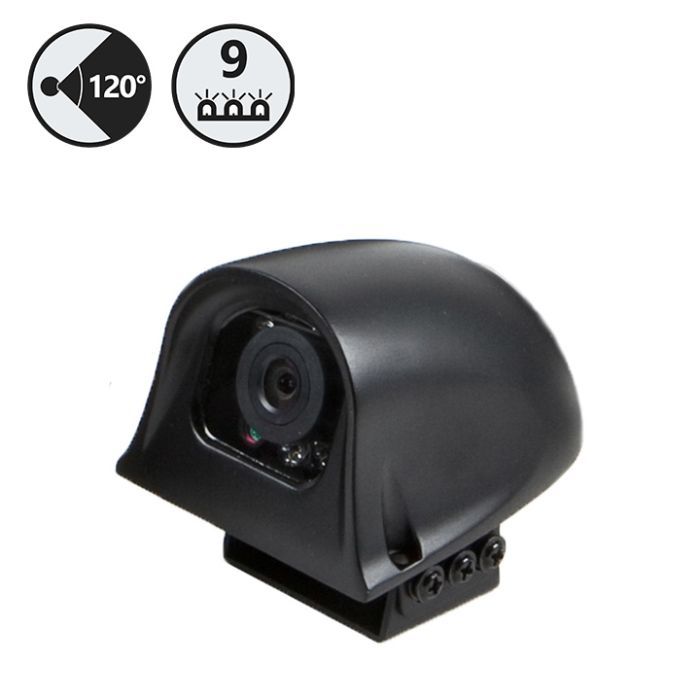

The RVS-775L-12 from RVS Systems is a 120° angle left side camera which is the clearest and greatest camera available on the market today. It boasts a 250,000 pixel 2.1 mm lens with 9 infra-red illuminators which enable you to see in total darkness. The casing of the camera has an IP68 rating which can withstand all weather conditions. This camera comes with 16' camera cable with a double-sided Female Air-Craft Grade Connection. This cable runs the length of the vehicle, from the camera to the multiplexer or power harness, 5 Pin Male to Male RCA with Male Power. The purpose of this adapter is to connect our camera to any monitor with an RCA input and Cable to connect power to RCA adapters.

RVS Systems RVS-775L-12 Camera Features

  • 120° Angle: Provides a wide field of view, enhancing visibility around the vehicle and reducing blind spots for safer driving.
  • High Resolution: The 250,000 pixel 2.1 mm lens ensures clear and detailed images for improved monitoring and safety.
  • Infra-Red Illuminators: Includes 9 infrared LEDs for night vision capability, allowing you to see in complete darkness.
  • Weather-Resistant Design: With an IP68 rating, this camera is designed to withstand harsh weather conditions, ensuring durability and longevity.
  • 16' Cable: Comes with a long cable that allows for flexible installation options, capable of reaching from the camera to the monitor easily.
  • Easy Connectivity: Equipped with an RCA adapter, making it compatible with most monitors for easy installation and use.

Detailed Specifications for RVS Systems RVS-775L-12

Camera TypeLeft Side Camera
Field of View120°
Resolution250,000 pixels
Lens Size2.1 mm
Infra-Red LEDs9
IP RatingIP68
Cable Length16 feet
Connector Type5 Pin Male to Male RCA with Male Power
SKU  RVS-775L-12
Features  Auto Gain Control, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    420 TVL
Sensor Option    1/4" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Voltage  12-24vDC
Gamma Correction  R=0.45 to 1.0
Image Device    1/4" Sharp Color CCD
IR Distance  9.14m/30ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C ~ +80°C
S/N Ratio  More than 48dB
Video Output    1Vp.p 75 Ω
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    120°
IR LEDs  9
Auto Gain Control    Yes
