RVS Systems RVS-775613 Blind Spot Backup Camera System, 2.1mm Lens

SKU
RVS-775613
Model No
RVS-082579
$317.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 7" LED DIGITAL PANEL Color Display
  • 120° Ultra Wide Viewing Angle
  • 9 Infra-red Lights - 35ft of Night Vision
  • Completely Waterproof Camera - IP68

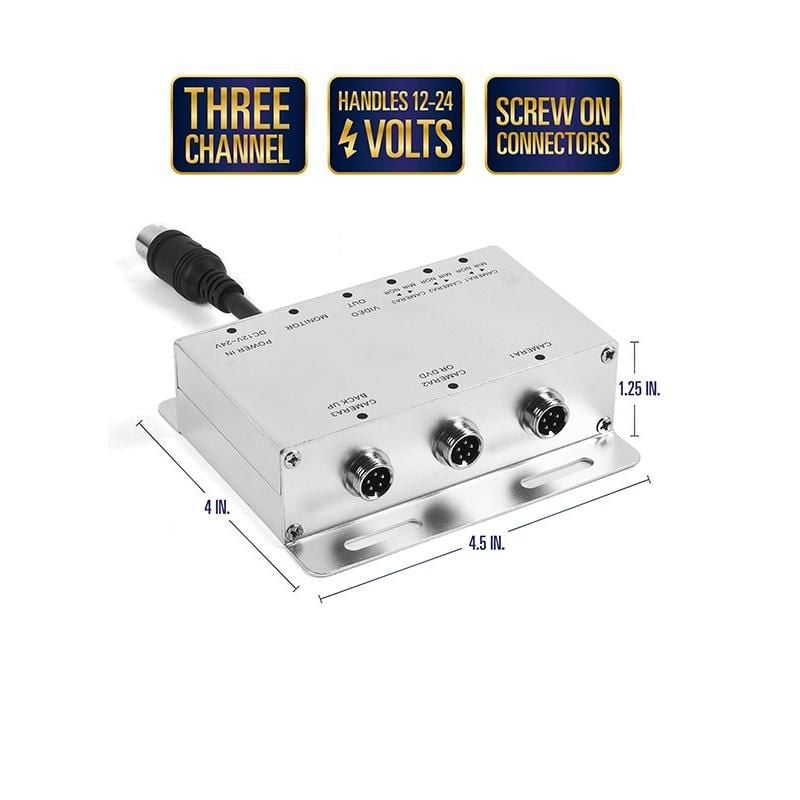

  • 3 Channel Multiplexer - Supports Additional Cameras

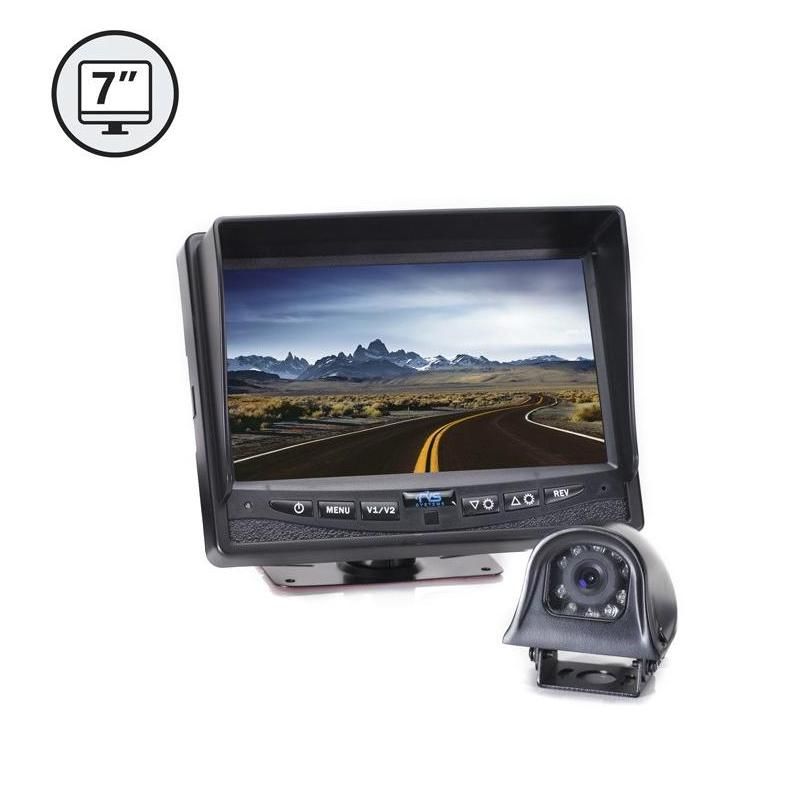

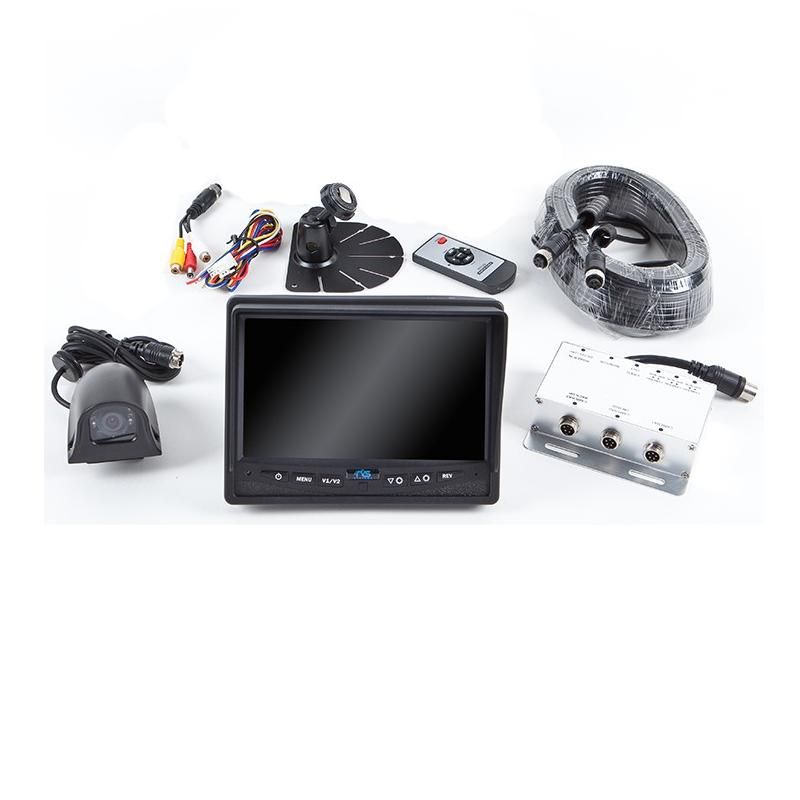

The RVS-775613 from RVS is a Blind Spot Backup Camera System, 2.1mm Lens. This tractor trailer blind spot camera system is complete with a crystal clear Digital 7" LED Digital Panel color monitor with mirror image capability, a 3 channel multiplexer with automatic system switch, 120° CCD side camera (right or left side) with 30 foot infra-red night vision and all the wires, connectors and mounts you will need. The system is completely weatherproof with an IP68 rating, strong and reliable, shock resistant, with a 20G vibration rating (highest in the industry).

RVS Systems RVS-775613 Camera Features

Features

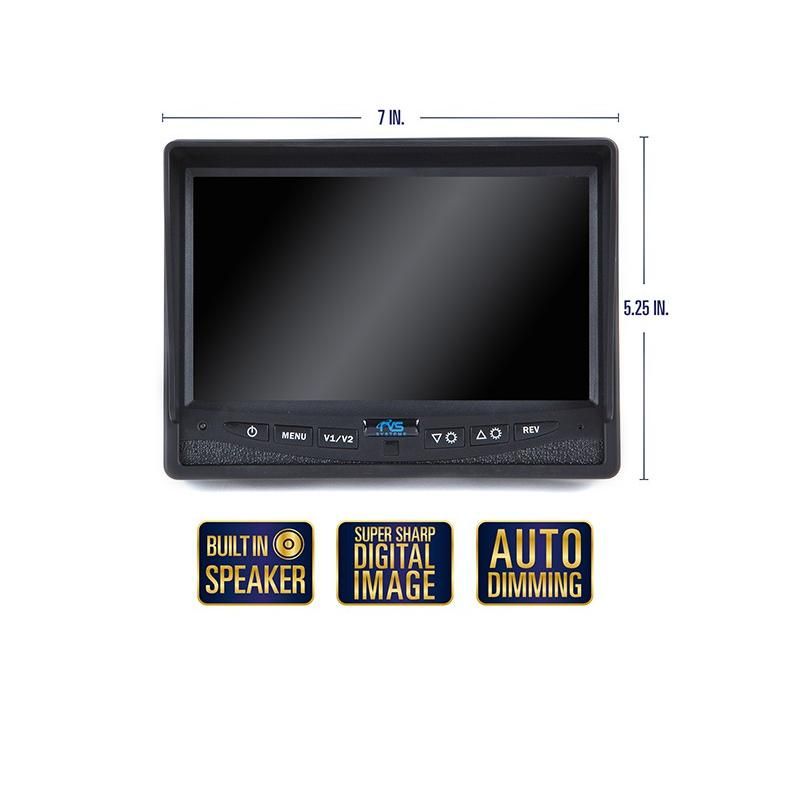

  • 7" LED DIGITAL PANEL: Crystal clear display allows for easy viewing and monitoring of blind spots.
  • 120° Ultra Wide Viewing Angle: Provides a wider field of vision to eliminate blind spots while reversing.
  • 9 Infra-red Lights: Offers 35ft of night vision for safe navigation in low-light conditions.
  • Completely Waterproof Camera: With an IP68 rating, the camera withstands harsh weather for reliable performance.
  • 3 Channel Multiplexer: Supports additional cameras, enabling comprehensive surveillance for larger vehicles.

Detailed Specifications for RVS Systems RVS-775613

Display Size7 inches
Camera Lens Size2.1mm
Viewing Angle120°
Night Vision Range35ft
Waterproof RatingIP68
Vibration Rating20G
Multiplexer Channels3
SKU  RVS-775613
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Heater & Fan, Weather Resistant
Manufacturer  RVS Systems
Camera Signal     Analog
Resolution    420 TVL
Sensor Option    1/4" CCD
Lens Type    Fixed
Lens Size    2.1mm
Infrared Distance    0~60 Feet
Durability    Weather Resistant
Mount Type  Dashboard
Electronic Shutter    1/50, 160-1/100,000sec
Gamma Correction  r=0.45 to 1.0
Image Device    1/4" Sharp Color CCD
Image Pixels Total250,000 pixels
IR Distance  9.14m/30ft
Minimum Scene Illumination  0 Lux (IR On)
Operating Humidity    RH 95% Max
Operating Temperature    -40°C ~ +80°C
Dimensions (W x H)  1.98" (H) x 2.44" (L) x 2.97" (D)
S/N Ratio  More Than 48db
Signal System    NTSC / PAL
Video Output    1Vp.p 75 Ohm
Weatherproof    IP68
Synchronization  Internal Synchronization
Angle of View    120°
IR LEDs  9
Back Light Compensation    Yes
Automatic White Balance    Yes
Heater & Fan    Yes
Auto Gain Control    Yes
