RVS Systems RVS-77555-08 1080p HD 360° Camera System with 10.1" HD Monitor, Calibration Kit and Backup Sensor Kit
SKU
RVS-77555-08
Model No
RVS-77555-08
$3,598.62
Product Highlights
- Seamless stitching provides 360° view of vehicle surroundings
- Records 4 HD (1920 x 1080) IP69K cameras simultaneously
- 1080P HDMI video output - Connect a 7" or 10" HD Monitor
- Automatic trigger switch
- Distance grid lines for backing up reference
Speak to an expert
The RVS-77555-08 from RVS Systems is a 1080p HD 360° Camera System with a 10.1" HD Monitor, Calibration Kit, and Backup Sensor Kit. This innovative system enhances vehicle safety with its advanced 360° view, helping drivers navigate tight spaces and avoid obstacles. Equipped with four ultra-wide fish-eye cameras, the system records high-definition video onto multiple SD cards and is designed for easy setup across various vehicles.
RVS Systems RVS-77555-08 Camera Features

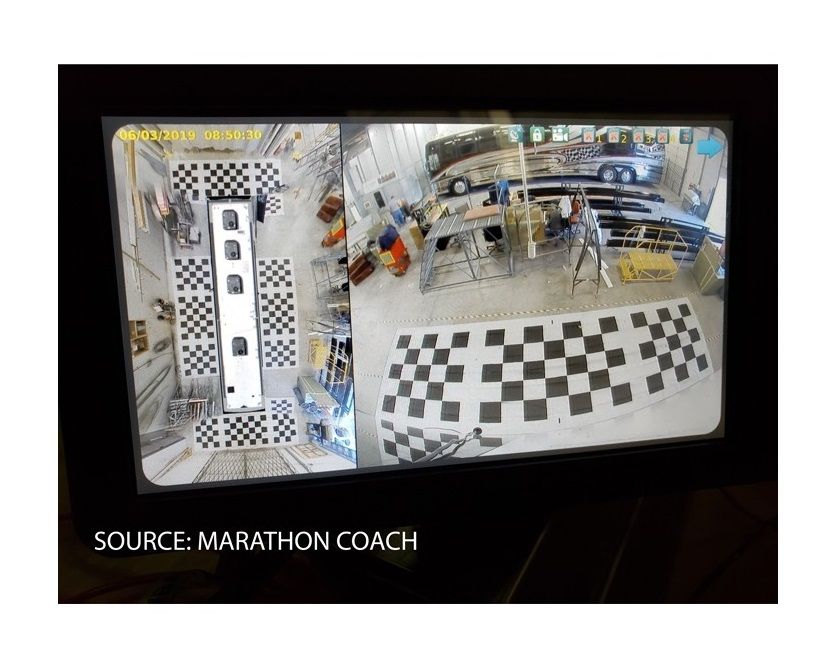

- Seamless stitching: Provides a comprehensive 360° view of vehicle surroundings, allowing for better parking and safety awareness.
- 4 HD camera recording: Simultaneously records from four IP69K rated cameras at 1920 x 1080 resolution for clear imagery and video playback.
- 1080P HDMI video output: Connects directly to a 7" or 10" HD Monitor, ensuring you have a clear display while driving.
- Automatic trigger switch: Activates the system automatically when the vehicle is in reverse, offering instant access to the 360° view.
- Distance grid lines: Enhances backing up reference, providing visual cues to assist with parking and distance judgement.
Detailed Specifications for RVS Systems RVS-77555-08
| Camera Type | 4 Full HD ultra-wide fish-eye cameras |
| Video Output | 1080P HDMI |
| Monitor Size | 10.1" HD |
| Recording Capability | Records onto 4 SD cards (up to 128GB each, sold separately) |
| Waterproof Rating | IP69K |
| Calibration Kit | Included, can be used for multiple vehicles |
| Sensor Integration | Compatible with a 12 sensor system |
SKU  | RVS-77555-08 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Image Device | 1/2.9” SONY CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V) |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | –20°C ~ +70°C |
| Video Output | 1.0Vp-p, 75Ohm |
| Weatherproof | IP69 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
