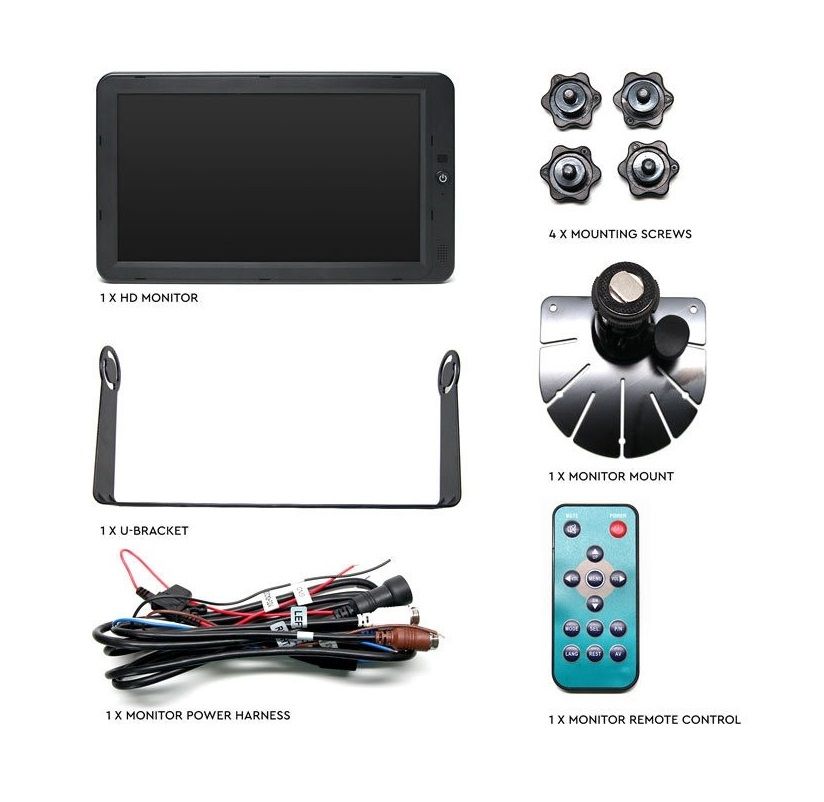

RVS Systems RVS-77555-07 1080p HD 360° Camera System with 10.1" HD Monitor and Backup Sensor Kit
- Seamless stitching provides 360° view of vehicle surroundings
- Records 4 HD (1920 x 1080) IP69K cameras simultaneously
- 1080P HDMI video output - Connect a 7" or 10" HD Monitor
- Automatic trigger switch
- Distance grid lines for backing up reference

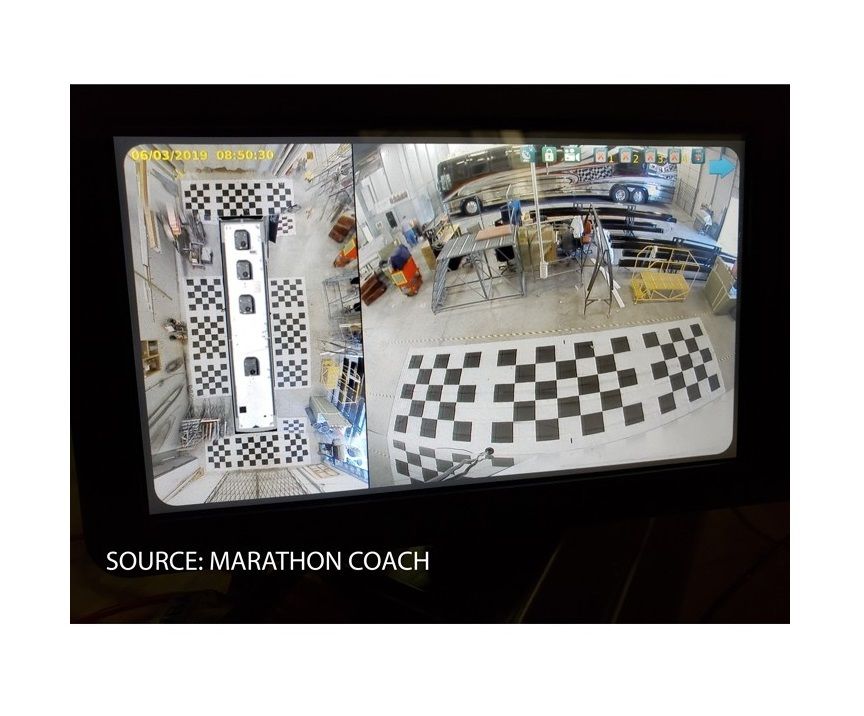

The RVS-77555-07 from RVS Systems is a 1080p HD 360° Camera System with 10.1" HD Monitor and Backup Sensor Kit. Our new Full HD 360° Camera System is the latest innovation in total vehicle protection. The RVS-77555 HD 360° Camera System is equipped with 4 Full HD ultra-wide fish-eye cameras, which give you four unique views that seamlessly merge together to create a complete 3D image of your vehicle and its surroundings. Use the 360° view to assist with parking, check your blind spots, or to help navigate narrow roads. The built-in mobile DVR securely records all connected cameras making it great for insurance purposes. This advanced 360° system records onto 4 SD cards, up to 128GB each (sold separately). The RVS-77555 features a high definition 1080P HDMI video output, enabling you to attach our 7” or 10” HD monitor. The RVS-77555 is easily set up with our Calibration Kit. Please note that a single calibration kit can be used to configure multiple vehicles. The RVS-77555 can also be integrated into an innovative 12 sensor system, enabling you to detect your blind spots and be alerted about hazards around your vehicle.
Features
- Seamless stitching: Provides a comprehensive 360° view of vehicle surroundings, enhancing situational awareness.
- Simultaneous recording: Records 4 HD (1920 x 1080) IP69K cameras concurrently, ensuring all angles are captured for safety and security.
- 1080P HDMI video output: Connect a 7" or 10" HD Monitor for optimal viewing, offering clearer imagery while maneuvering.
- Automatic trigger switch: Activates the camera system automatically when reversing, providing immediate assistance.
- Distance grid lines: Offers backing up reference, promoting safer parking and navigation.
RVS Systems RVS-77555-07 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | 4 Full HD Ultra-wide Fish-eye Cameras |
| Video Resolution | 1920 x 1080 (1080p) |
| Monitor Size | 10.1 inches HD |
| Recording Capability | Records on 4 SD cards, up to 128GB each (sold separately) |
| Integration | 12 sensor system integration for blind spot detection |
| Calibration Kit | Single kit can configure multiple vehicles |
SKU  | RVS-77555-07 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Image Device | 1/2.9” SONY CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V) |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | –20°C ~ +70°C |
| Video Output | 1.0Vp-p, 75Ohm |
| Weatherproof | IP69 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
RVS-77555-07-Specsheet RVS-77555-07-Instruction-Manual
