RVS Systems RVS-77555-04 1080p HD 360° Camera System with 7" HD Monitor, Calibration Kit and Backup Sensor Kit
SKU
RVS-77555-04
Model No
RVS-77555-04
$3,079.11
Product Highlights

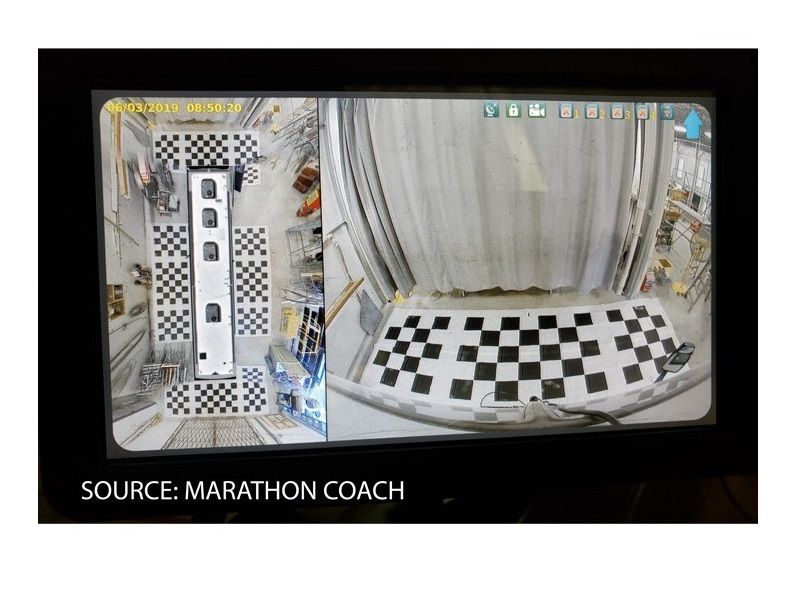

- Seamless stitching provides 360° view of vehicle surroundings
- Records 4 HD (1920 x 1080) IP69K cameras simultaneously
- 1080P HDMI video output - Connect a 7" or 10" HD Monitor
- Automatic trigger switch
- Distance grid lines for backing up reference
Speak to an expert

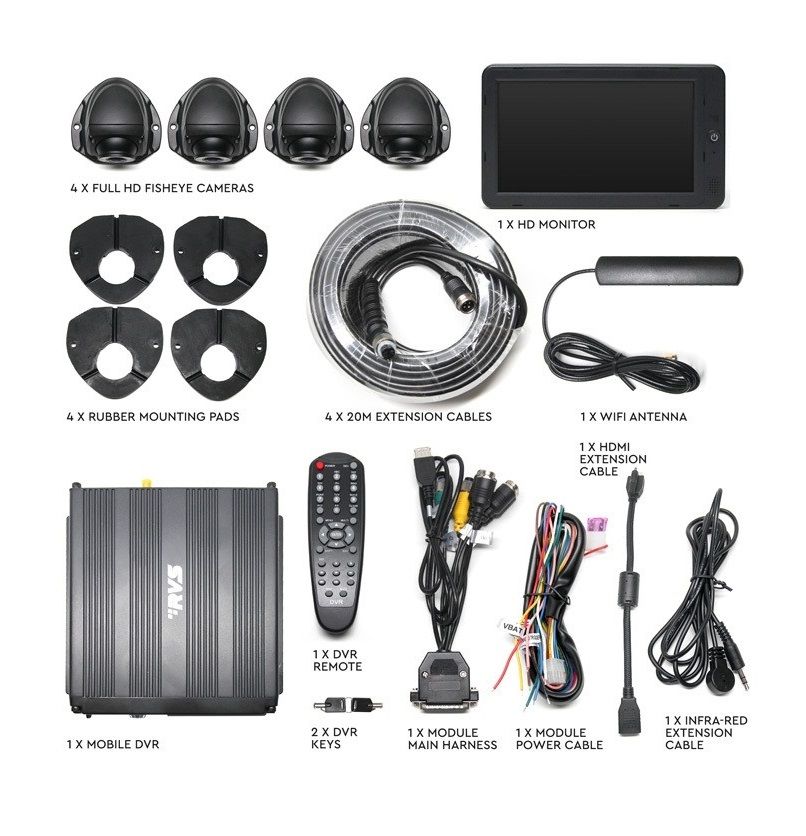

The RVS-77555-04 from RVS Systems is a cutting-edge 1080p HD 360° Camera System that provides unparalleled vehicle safety and convenience. Featuring a 7" HD Monitor, Calibration Kit, and Backup Sensor Kit, this complete system equips you with four Full HD ultra-wide fish-eye cameras, delivering a comprehensive view of your surroundings. Ideal for parking assistance and blind spot monitoring, it also includes a mobile DVR for secure recording, making it a perfect enhancement for any vehicle.
RVS Systems RVS-77555-04 Camera Features
- Seamless stitching: Enjoy a 360° view of your vehicle's surroundings, enhancing safety during maneuvers.
- Recording capability: Records 4 HD (1920 x 1080) IP69K cameras simultaneously for high-quality footage.
- 1080P HDMI video output: Connect a 7" or 10" HD Monitor for clear and detailed viewing.
- Automatic trigger switch: Activates automatically for effortless operation during reversing.
- Distance grid lines: Provides a visual reference for better accuracy when backing up.
Detailed Specifications for RVS Systems RVS-77555-04
| Camera System | 1080p HD 360° with 4 IP69K Cameras |
| Monitor Size | 7" HD Monitor |
| Calibration Kit | Included for easy installation |
| Backup Sensor Kit | Included for enhanced safety |

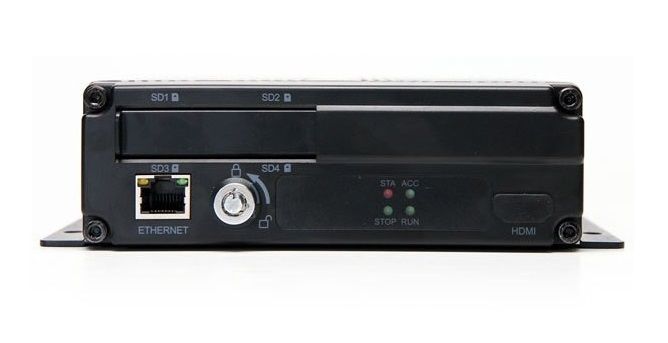

| Recording Capability | 4 SD card slots, up to 128GB each (sold separately) |
| HDMI Output | 1080P for monitor connection |
| Operation | Simple set up with a single Calibration Kit for multiple vehicles |
| Integration | Compatible with 12 sensor system for blind spot detection |
SKU  | RVS-77555-04 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | HD-AHD |
| Resolution | 1080p |
| Sensor Option | 1/2.9" CMOS |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Image Device | 1/2.9” SONY CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V) |
| Operating Humidity | RH 95% MAX |
| Operating Temperature | –20°C ~ +70°C |
| Video Output | 1.0Vp-p, 75Ohm |
| Weatherproof | IP69 |
| Angle of View | 170° |
| Automatic White Balance | Auto |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
