RVS Systems RVS-77550-32 360° with 9" Display, Power Harness with RCA Cable, Both Surface Mounted Cameras, Vehicle 40ft - 66ft
- Provides bird's eye view of all blind spots
- 4 VGA (800 x 480) IP69K cameras
- Add lane changing side cameras in item options
- 195° ultra-wide waterproof cameras
- Connects to any RCA monitor
RVS Systems RVS-77550-32 360° Camera System Features

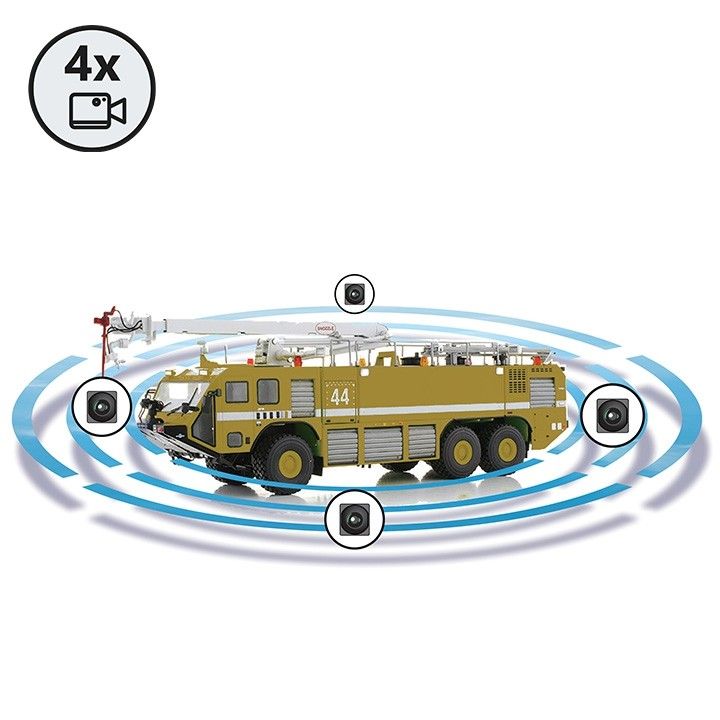

The RVS-77550-32 from RVS Systems is a 360° bird's eye view camera system which helps just for parking and tight driving situations. Our new 360° helps with lane changing and highway driving as well! A bird's eye view around your vehicle is great, but the view is limited to just a couple of feet. The optional side cameras greatly increase your view, allowing for easy lane changes and completely eliminating side blind spots.

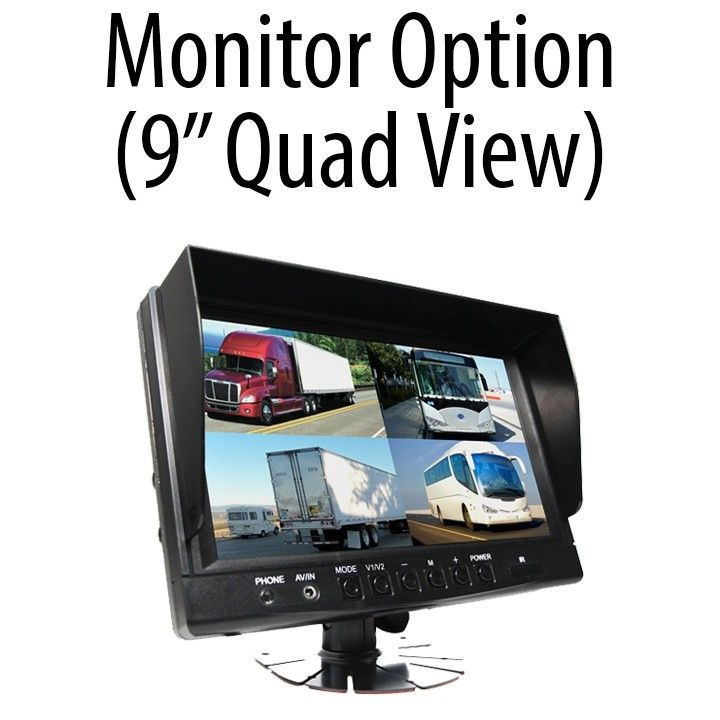

The RVS-6139-NM is a 9" TFT LCD Digital Color Monitor has three video inputs. It comes with a built-in speaker and distance grid lines.
The camera comes with 5 Pin female to RCA female with male power, cable to connect power to RCA adapters, 66' camera cable with a double-sided Female Air-Craft Grade Connection, 2 x 33' camera cable with a double-sided Female Air-Craft Grade Connection and both surfaces mounted cameras.
Features
- Bird's Eye View: Provides a comprehensive perspective of all blind spots for safer driving and parking.
- High-Resolution Cameras: 4 VGA (800 x 480) IP69K cameras deliver clear images in various conditions.
- Expandable System: Add lane-changing side cameras in item options for enhanced visibility.
- Ultra-Wide Cameras: 195° ultra-wide waterproof cameras ensure maximum coverage and durability.
- RCA Compatibility: Connects easily to any RCA monitor for versatile installation.
RVS Systems RVS-77550-32 Detailed Specifications
| Camera Type | 4 VGA (800 x 480) IP69K cameras |
| Camera Angle | 195° ultra-wide |
| Monitor Size | 9" TFT LCD Digital Color Monitor |
| Inputs | Three video inputs with built-in speaker |
| Distance Grid Lines | Yes |
| Power Connectivity | 5 Pin female to RCA female with male power |
| Camera Cable Length | 66' and two 33' cables with double-sided Female Air-Craft Grade Connection |
| Camera Mounting | Surface mounted |
SKU  | RVS-77550-32 |
|---|---|
| Features | Auto Gain Control, Weather Resistant |
| Manufacturer | RVS Systems |
Camera Signal  | Analog |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Minimum Scene Illumination | 0 Lux (IR On) |
| Operating Temperature | -30°C ~ +70°C |
| Dimensions (W x H) | 21.6mm x 21.6mm x 25.6mm |
| Power Consumption | < 0.6W |
| S/N Ratio | More than 48dB |
| Signal System | NTSC / PAL |
| Weatherproof | IP69 |
| Angle of View | 140° (V), 185° (H), 200° (D) |
| Auto Gain Control | Yes |
RVS-77550-32-Specsheet
